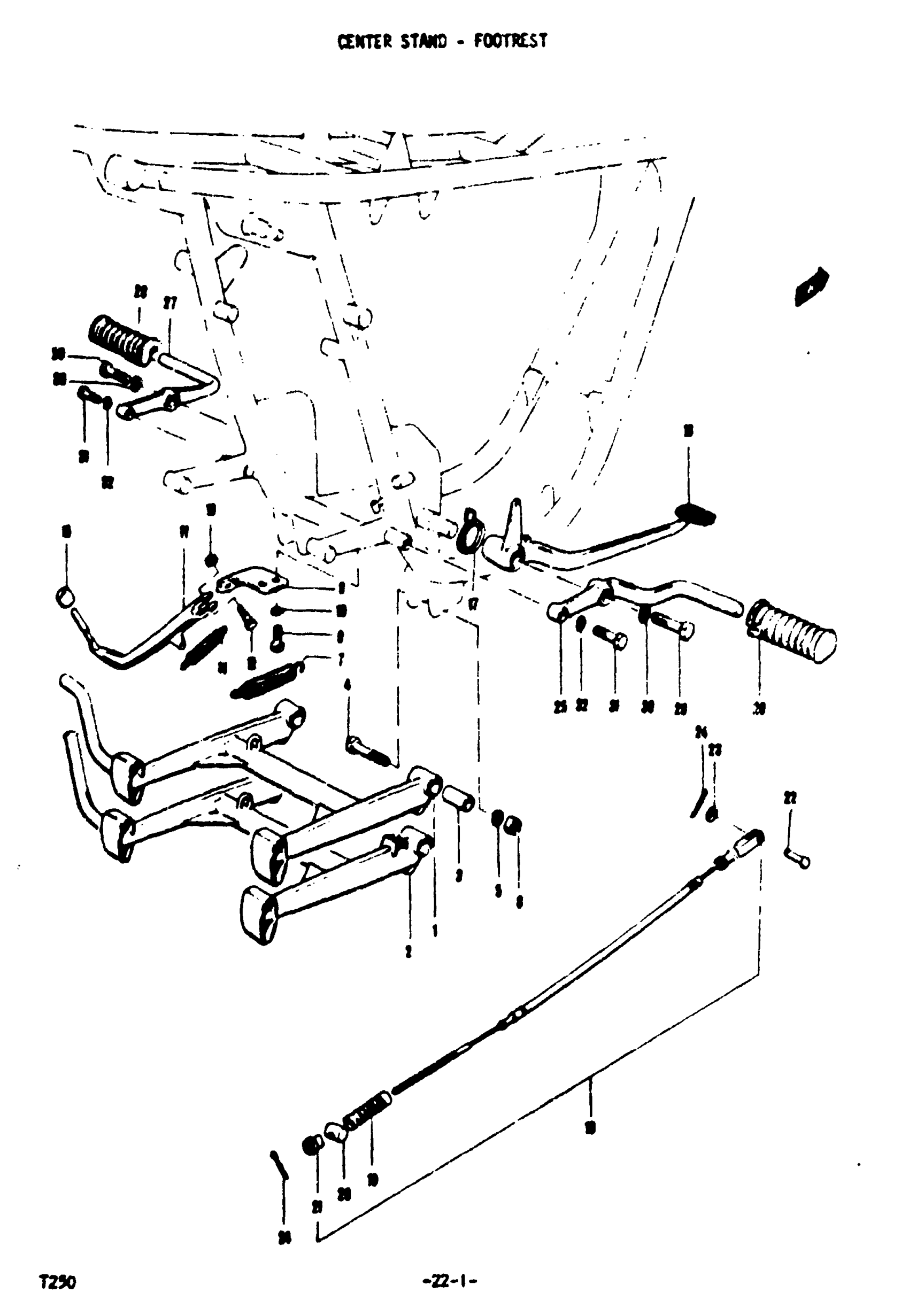

Suzuki T250II (1972) CENTER STAND - FOOTREST Diagram

#

Description
Price

1

STAND, CENTER | T250,T250R,T250J

42100-18000

Unavailable

2

STAND, CENTER | T250II

42100-18200

Unavailable

3

SPACER | 10.4x16x30

09180-10001

$3.58

4

BOLT | 10 SCREW, L:48

09100-10006

Unavailable

5

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

6

NUT This part replaces 08312-11108.

08310-00107

$2.19

7

SPRING This part replaces 09443-16005.

09443-16005-XC0

Unavailable

8

BRACKET, SI TAND

42330-10001

Unavailable

9

BOLT This part replaces 01111-10258.

01500-10257

$3.85

10

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

11

STAND, SIDE

42310-08002

Unavailable

12

BOLT | 10 SCREW, L:27 This part replaces 09100-10007.

09100-10287

$3.48

13

NUT This part replaces 08312-31108.

08310-00107

$2.19

14

SPRING This part replaces 09443-14005.

09443-14017

$3.04

15

CUSHION

09320-07001

$2.92

16

PEDAL, BRAKE | CHROME-PLATED

43110-18100

Unavailable

17

SPRING

09448-37008

Unavailable

18

CABLE ASSY, REAR BRAKE | Includes Item(s) 19 - 21

58500-11000

Unavailable

19

BOOT

09287-05001

Unavailable

20

.PIN (13X18) | OD:13, L:18 This part replaces 09209-13001.

09209-13018

$3.42

21

.NUT This part replaces 09150-06001.

09150-06010

$3.10

22

PIN

09200-05001

$1.65

23

WASHER This part replaces 08322-21068.

08322-01067

$2.13

24

COTTER PIN

04111-20128

Unavailable

25

FOOTRESTBAR, FRONT RH

43511-10000

Unavailable

26

COVER, FRONT FOOTRESTBAR RH

43551-10000

$22.40

27

FOOTRESTBAR, FRONT LH

43515-10000

Unavailable

28

COVER, FRONT FOOTRESTBAR LH

43551-09000

Unavailable

29

BOLT, HANDLE HOLDER This part replaces 01122-10358.

01500-1035B

$3.72

30

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

31

BOLT

01111-08358

Unavailable

32

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13
