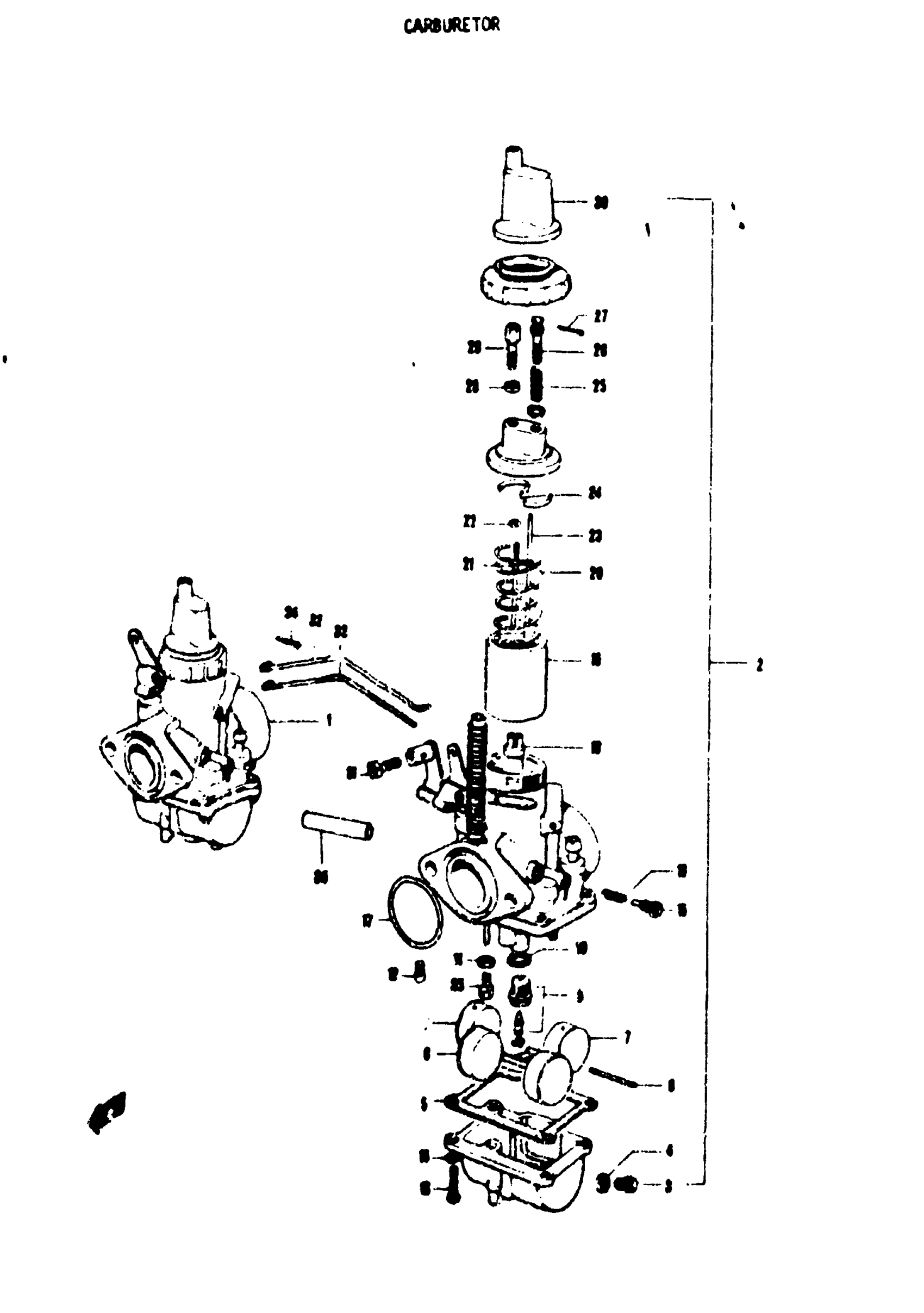

Suzuki T250II (1972) CABURETOR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | T250 This part replaces 13201-18110.

13201-18111

Unavailable

1

CARBURATOR ASSY, RH | T250II,T250R,T250J

13201-18640

Unavailable

1

CARBURETOR ASSY, RH | T250J

13201-18641

Unavailable

2

CARBURETOR ASSY, LH | T250

13202-18110

Unavailable

2

CARBURETOR ASSY, LH | T250II,T250R,T250J

13202-18640

Unavailable

2

CARBURETOR ASSY, LH | T250J; Includes Item(s) 3 - 35

13202-18641

Unavailable

3

PLUG, DRAIN

13247-05010

$5.11

4

GASKET, DRAIN PLUG

13249-05010

$1.98

5

GASKET, FLOAT CHAMBER | T250

13251-11010

$5.62

5

GASKET, FLOAT CHAMBER | T250II,T250R,T250J This part replaces 13251-18010.

13251-33110

$9.03

6

FLOAT | T250

13252-11010

$24.87

7

FLOAT | T250II,T250R,T250J

13252-18620

$21.82

8

PIN, FLOAT

13254-11010

Unavailable

9

VALVE ASSY, NEEDLE

13370-18111

$52.32

10

GASKET, NEEDLE VALVE

13392-58600

$1.82

11

WASHER, NEEDLE JET STOP

13382-03110

$2.80

12

JET, PILOT (30) | T250; #30 This part replaces 09492-30003.

09492-30006

$9.55

12

JET, PILOT (25) | T250II,T250R,T250J; #25 This part replaces 09492-25003.

09492-25005

$9.55

13

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

14

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

15

SCREW, PILOT AIR

13269-15010

Unavailable

16

SPRING, PILOT AIR

13268-01010

$5.28

17

O RING | T250

13295-52010

Unavailable

17

O RING | T250II,T250R,T250J

13295-18620

Unavailable

18

JET, NEEDLE | T250; N-6

09494-00048

Unavailable

18

JET, NEEDLE | T250II,T250R,T250J; 0-2

09494-00075

Unavailable

19

VALVE, THROTTLE | T250; CUT-AWAY 2.5

13551-18110

Unavailable

19

VALVE, THROTTLE | T250II,T250R,T250J; CUT-AWAY 2.5

13551-18620

Unavailable

20

SPRING, THROTTLE VALVE | T250

13573-18110

Unavailable

20

SPRING, THROTTLE VALVE | T250II,T250R,T250J

13573-18620

Unavailable

21

NEEDLE, JET | T250; 4DH5 This part replaces 13383-11010.

13383-33010

$20.13

21

NEEDLE, JET | T250II,T250R,T250J; 5CN3

13383-18620

Unavailable

22

CLIP, NEEDLE | T250

13394-03010

Unavailable

22

CLIP, NEEDLE | T250II,T250R,T250J

13394-10010

$5.45

23

ROD, THROTTLE VALVE | T250

13296-11010

$6.70

23

ROD, THROTTLE VALVE STOP | T250II,T250R,T250J This part replaces 13296-18620.

13296-08010

Unavailable

24

SEAT, SPRING | T250

13581-18110

Unavailable

24

SEAT, SPRING | T250II,T250R,T250J

13581-18620

Unavailable

25

SPRING, THROTTLE ADJUSTING

13268-03110

$5.45

26

SCREW, THROTTLE ADJUSTING

13267-09210

Unavailable

27

COTTER PIN

04111-12088

Unavailable

28

NUT, CABLE ADJUSTING

13661-03010

$5.67

29

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

30

CAP, CABLE ADJUSTER

13681-11010

Unavailable

31

BOLT, STARTER LEVER LINK | F.NO.~T250-

13429-15010

Unavailable

32

LINK, STARTER LEVER | T250; E.NO.T250-12608 This part replaces 13425-18010.

13425-15010

Unavailable

33

LINK, STARTER LEVER | E.NO. T250-12659~

13425-15010

Unavailable

34

COTTER PIN | T250; 2PCS. E.NC. T250-12608T250II,T250R,T250J

04111-12088

Unavailable

35

JET, MAIN (87.5) | T250; #87.5 This part replaces 09491-87001.

09491-87005

$11.38

35

JET, MAIN (110) | T250II,T250R,T250J; #110 This part replaces 09491-22004.

09491-22016

$10.06

35

JET, MAIN (82.5) | T250; #82.5, OPT This part replaces 09491-82002.

09491-82003

Unavailable

35

JET, MAIN (85) | #85, OPT This part replaces 09491-85004.

09491-85008

$12.13

35

JET, MAIN (105) | T250II,T250R,T250J; #105, OPT This part replaces 09491-21003.

09491-21016

$12.13

35

JET, MAIN (#107.5) | T250II,T250R,T250J; #107.5, OPT This part replaces 09491-21006.

09491-21014

$11.83

35

JET, MAIN (112.5) | T250II,T250R,T250J; #112.5, OPT This part replaces 09491-22005.

09491-22015

$9.69

35

JET, MAIN (115) | T250II,T250R,T250J; #115, OPT This part replaces 09491-23002.

09491-23011

$9.63

36

HOSE(6X10X600) | T250J; F.NO.T250- This part replaces 09343-06008.

09352-60104-600

$8.99
