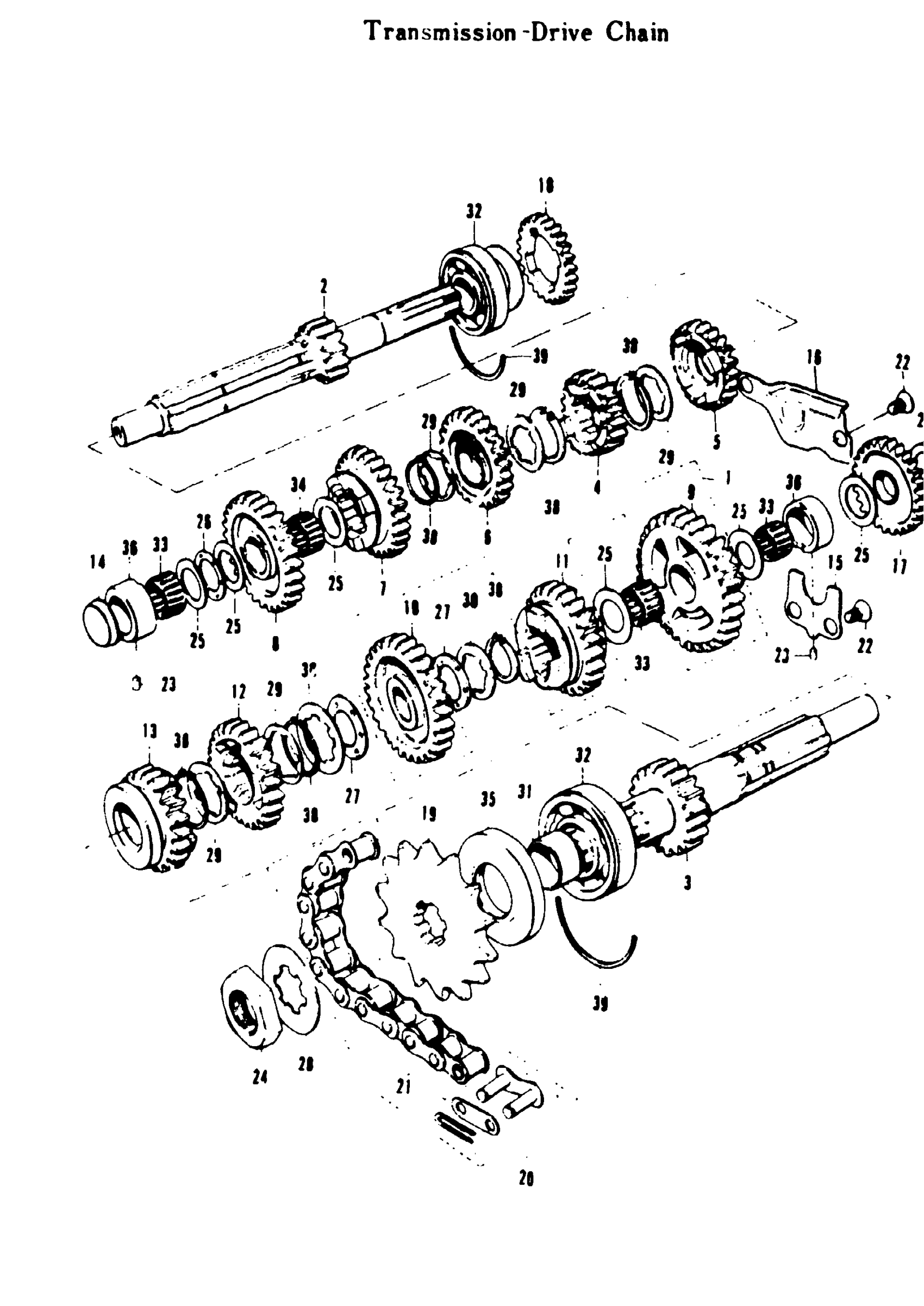

Suzuki T20 (1969) TRANSMISSION - DRIVE CHAIN Diagram

#

Description
Price

1

GEAR SET | TC250; INCLUDES REF. NOS. 9,10 & 11

24000-11839

Unavailable

2

COUNTERSHAFT | TC250; N.T. =14

24121-11000

Unavailable

3

DRIVE SHAFT | TC250; N.T. =22

24131-11000

Unavailable

4

2ND DRIVE GEAR | TC250; N.T. =19

24221-11000

Unavailable

5

3RD DRIVE GEAR | TC250; N.T. =22

24231-11000

Unavailable

6

4TH DRIVE GEAR | TC250; N.T. =25

24241-11001

Unavailable

7

5TH DRIVE GEAR | TC250; N.T. =27

24251-11000

Unavailable

8

6TH DRIVE GEAR | TC250; N.T. =28

24261-11000

Unavailable

9

1ST DRIVEN GEAR | TC250; N.T. =36

24311-11003

Unavailable

10

2ND DRIVEN GEAR | TC250; N.T. =31

24320-11005

Unavailable

11

3RD DRIVEN GEAR | TC250; N.T. =28

24331-11001

Unavailable

12

4TH DRIVEN GEAR | TC250; N.T. =26

24341-11002

Unavailable

13

5TH DRIVEN GEAR | TC250; N.T. =24

24351-11000

Unavailable

14

COUNTERSHAFT BUSHING RETAINER | TC250

24745-11040

Unavailable

15

DRIVE SHAFT BUSHING RETAINER | TC250

24751-11000

Unavailable

16

OIL RESERVOIT CUP | TC250

24871-11001

Unavailable

17

KICK STARTER IDLE GEAR | TC250; N.T. =26

26260-11000

Unavailable

18

KICK STARTER DRIVEN GEAR | TC250; N.T. =24

26281-11000

Unavailable

19

ENGINE SPROCKET | TC250; OPT. # 5 25. N.T. =14

27511-11000

Unavailable

19

ENGINE SPROCKET | TC250; OPT. # 5 25. N.T. =11

27511-50760

Unavailable

19

ENGINE SPROCKET | TC250; OPT. # 5 25. N.T. =12

27511-50761

Unavailable

19

ENGINE SPROCKET | TC250; OPT. # 5 25. N.T. =13

27511-11700

Unavailable

19

ENGINE SPROCKET | TC250; OPT. # 5 25. N.T. =15

27511-11710

Unavailable

20

DRIVE CHAIN ASS'Y | TC250; INCLUDES REF. NO. 20 # 25TX 96L

27600-18610

Unavailable

21

JOINT, CHAIN | TC250; # 5 25T This part replaces 27620-18610.

27620-30110

Unavailable

22

CROSS HEAD SCREW

02121-06128

Unavailable

23

DOWEL PIN

04221-04069

$2.12

24

ENGINE SPROCKET NUT | TC250

09140-20001

$3.37

25

WASHER, 2ND DRIVE GEAR | TC250; I.D. =17(0.67). O.D. =29(1.1TC250; I.D. =17(0.67). O.D. =29(1.14) T =1.0(0.04) This part replaces 09160-17001.

09181-17223

$2.96

25

WASHER | I.D. =17(0.67). O.D. =29(1.14) T =1I.D. =17(0.67). O.D. =29(1.14) T =1.5(0.06) This part replaces 09160-17003.

08211-17282

$2.70

25

6TH DRIVE GEAR OUTER THRUST WA | TC250; I.D. =17(0.67), O.D. =29(1.1TC250; I.D. =17(0.67), O.D. =29(1.14) T =1.2(0.05)

09160-17007

Unavailable

26

WASHER | TC250; I.D. =17(0.67). O.D. =29(1.14) T =1.0(0.04) This part replaces 09160-17005.

09160-17022

$3.23

27

2ND DRIVEN GEAR INNER THRUST W | TC250; I.D. =22(0.87), O.D. =34(1.3TC250; I.D. =22(0.87), O.D. =34(1.34) T =1.0(0.04)

09160-22003

Unavailable

28

LOCK WASHER | TC250; O.D =38(1.50), T. =0.8(0.03) This part replaces 09167-20006.

09167-20009

$2.03

29

WASHER | TC250; O.D. =29(1.14). T. =1.0(0.04TC250; O.D. =29(1.14). T. =1.0(0.04) This part replaces 09167-22001.

09167-22007

Unavailable

30

2ND DRIVEN GEAR OUTER THRUST W | TC250; O.D. =34(1.34), T =1.0(0.04)TC250; O.D. =34(1.34), T =1.0(0.04)

09167-22002

Unavailable

31

ENGINE SPROCKET SPACER | TC250; I D =20(0.79), O D =25(0.98)W =14.4(0.57)

09180-20003

Unavailable

32

TRANSMISSION SHAFT STOTTED BEA | TC250; I D =20(0.79), O D =52(2.05)TC250; I D =20(0.79), O D =52(2.05)W =15(0.59)

09262-20003

Unavailable

33

TRANSMISSION SHAFT NEEDLE BEAR | TC250; I D =17(0.67), O D =21(0.83)TC250; I D =17(0.67), O D =21(0.83)W =12.8(0.50)

09263-17001

$21.82

34

6TH DRIVE GEAR NEEDLE BEARING | TC250; I D =17(0.67), O D =21(0.83)W =9.8(0.39)

09263-17004

$12.03

35

DRIVE SHAFT OIL SEAL | TC250; I.D. =25(0.98), O.D. =52(2.05) W =7(0.28)

09283-25002

Unavailable

36

TRANSMISSION SHAFT BUSHING | TC250; I.D. =21(0.83), O D =30(1.18) W =13(0.51)

09300-21001

Unavailable

37

KICK STARTER IDLE GEAR CIRCLIP | TC250

09380-17001

$1.98

38

CIRCLIP | TC250 This part replaces 09380-22001.

08331-31229

$2.48

39

SLOTTED BEARING POSITIONING PI | TC250TC250

09390-52001

Unavailable
