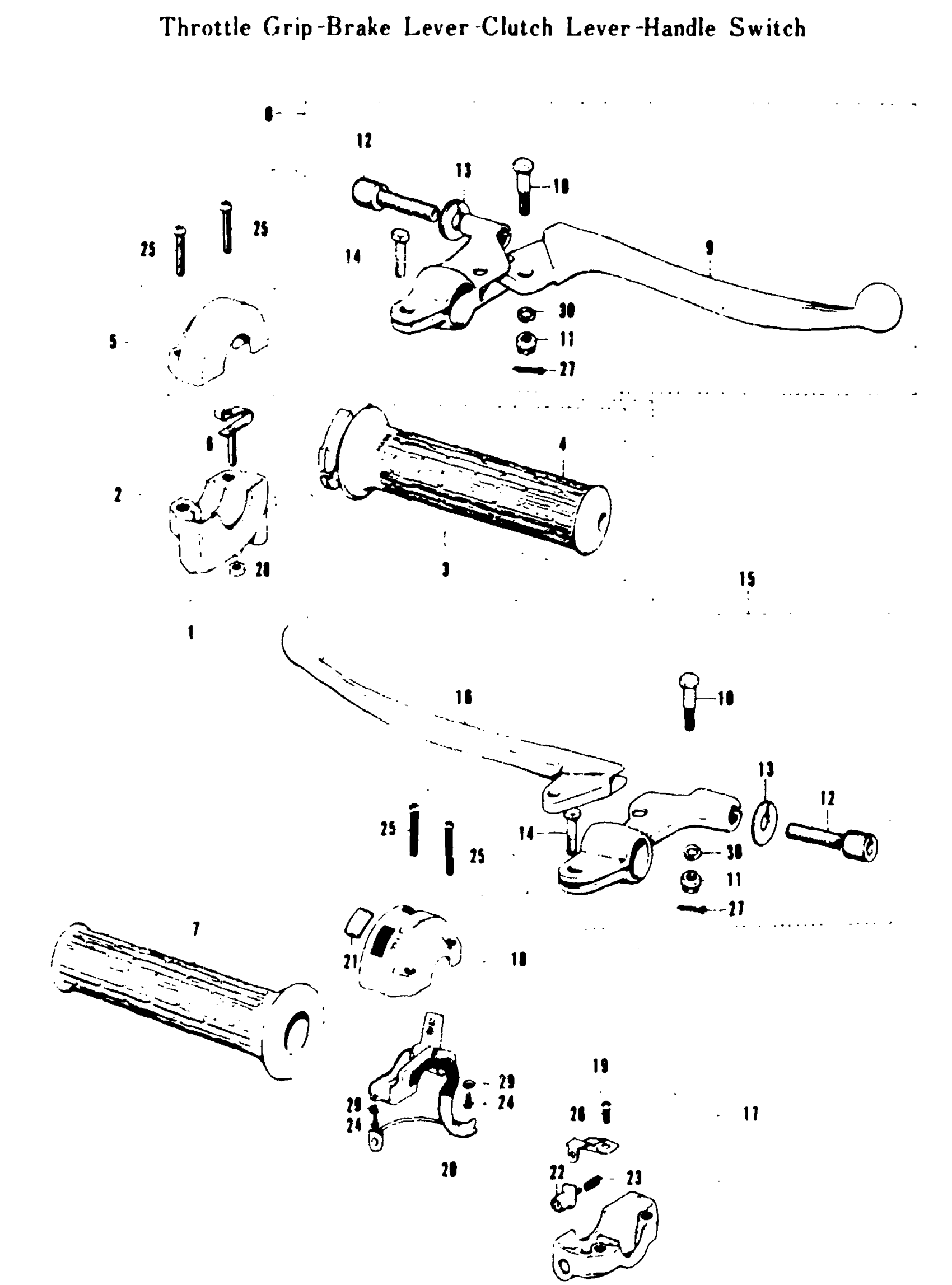

Suzuki T20 (1969) THROTTLE GRIP - BRAKE LEVER - CLUTCH LEVER - HANDLE SWITCH Diagram

#

Description
Price

1

THROTTLE GRIP ASS'Y | TC250

57100-11012

Unavailable

2

THROTTLE GRIP LOWER HOLDER ASS | TC250TC250

57101-11830

Unavailable

3

THROTTLE GRIP | TC250

57110-11011

Unavailable

4

THROTTLE GRIP RUBBER | TC250

57111-11012

Unavailable

5

THROTTLE GRIP UPPER HOLDER | TC250

57121-11010

Unavailable

6

THROTTLE GRIP ADJUSTER | TC250; ISO

57170-11011

Unavailable

6

THROTTLE GRIP ADJUSTER | TC250

57170-11010

Unavailable

7

GRIP, LH | TC250 This part replaces 57211-11011.

57211-15110

Unavailable

8

BRAKE LEVER ASS'Y | TC250

57300-11010

Unavailable

9

BRAKE LEVER | TC250

57420-11010

Unavailable

10

BOLT | TC250 This part replaces 57431-11010.

57431-11013

$6.31

11

LEVER FITTING NUT | TC250

57433-11010

$5.64

12

CABLE ADJUSTER | TC250

57441-11010

$5.62

13

CABLE ADJUSTER NUT | TC250

57442-11010

$2.79

14

BOLT | TC250; O.D =6(0.24). L =20(0.79) This part replaces 57451-11010.

01500-06207

$2.28

15

CLUTCH LEVER ASS'Y | TC250

57500-11010

Unavailable

16

CLUTCH LEVER | TC250

57620-11010

Unavailable

17

HANDLE SWITCH ASS'Y | TC250

57700-11601

Unavailable

18

HANDLE SWITCH UPPER COVER ASS' | TC250TC250

57701-11601

Unavailable

19

HANDLE SWITCH LOWER COVER ASS' | TC250TC250

57702-11011

Unavailable

20

HANDLE SWITCH WINNG HEANESS | TC250

57720-11600

Unavailable

21

HANDLE SWITCH UPPER COVER CAP | TC250

57733-09600

Unavailable

22

HORN BUTTON | TC250

57750-11010

Unavailable

23

HORN BUTTON SPRING | TC250

57761-11010

Unavailable

24

CROSS HEAD SCREW | ISO

02111-03068

Unavailable

24

CROSS HEAD SCREW

02111-03061

Unavailable

25

CROSS HEAD SCREW | ISO

02111-06208

Unavailable

25

SCREW | ISO This part replaces 02111-05201.

02112-05207

$1.97

26

SCREW | ISO This part replaces 02121-03088.

02122-0308A

Unavailable

26

CROSS HEAD SCREW

02121-03081

Unavailable

27

PIN This part replaces 04111-16158.

04111-1620A

$1.49

28

NUT | ISO This part replaces 08311-11058.

08310-00057

$1.84

28

HEXAGON NUT

08311-11051

Unavailable

29

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

30

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
