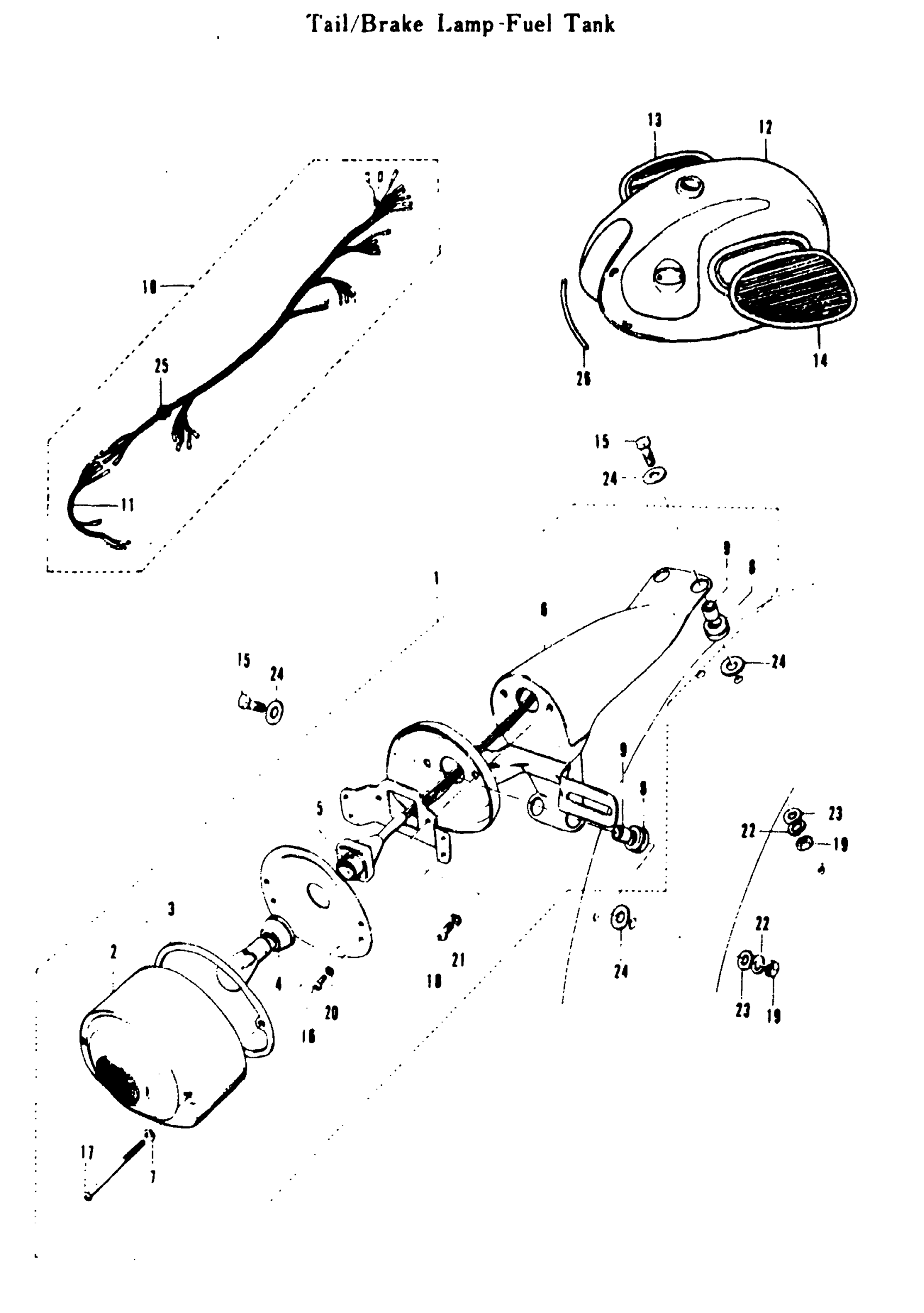

Suzuki T20 (1969) TAIL/BRAKE LAMP - FUEL TANK Diagram

#

Description
Price

1

TAIL/BRAKE LAMP ASS'Y

35710-15010

Unavailable

2

LENS, RR COMB L This part replaces 35712-15011.

35712-06112

$35.16

3

TAIL/BRAKE LAMP LENS GASKET

35713-15010

Unavailable

4

TAIL/BRAKE LAMP BULB BUFFER

35716-15010

Unavailable

5

TAIL/BRAKE LAMP SOCKET

35718-15011

Unavailable

6

TAIL/BRAKE LAMP BRACKET

35726-15011

Unavailable

7

TAIL/BRAKE LAMP LENS WASHER

35727-03010

Unavailable

8

TAIL/BRAKE LAMP BUFFER | ID=10(0.39),O D -20(0.79) W=8 2(0.32)

35765-15010

Unavailable

9

SPACER | ID =7(0.28).O D =10(0.39) W = 7(0.28) This part replaces 35766-15010.

35766-37110

$5.28

10

MAIN WIRING HARNESS ASS'Y

36600-10816

Unavailable

11

TAIL/BRAKE LAMP WIRING HARNESS

36620-10100

Unavailable

12

FUEL TANK | COLOT SIBER MATALIK

44110-11201-046

Unavailable

13

RIGHT KNEE GRIP

44251-10100

Unavailable

14

LEFT KNEE GRIP

44252-10100

Unavailable

15

HEXAGON BOLT

01111-08208

Unavailable

16

CROSS HEAD SCREW | ISO

02111-04088

Unavailable

16

NO DESCRIPTION AVAILABLE This part replaces 02111-04081.

02111-04082

Unavailable

17

CROSS HEAD SCREW | ISO

02113-04558

Unavailable

17

CROSS HEAD SCREW

02111-04551

Unavailable

18

CROSS HEAD SCREW | ISO

02111-05128

Unavailable

18

CROSS HEAD SCREW

02111-05121

Unavailable

19

.NUT This part replaces 08311-11068.

08310-00067

$2.13

20

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

21

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

23

WASHER This part replaces 08322-21068.

08322-01067

$2.13

24

WASHER (6.5X20X1.6) | ID=6.3(0.26).O D =20(0.79) T=1.6(0.06) This part replaces 09160-06020.

09160-06066

$1.89

25

MAIN WIRING HARNESS BUSHING

09308-04001

Unavailable

26

FUEL GAUGE PIPE

09344-05004

Unavailable
