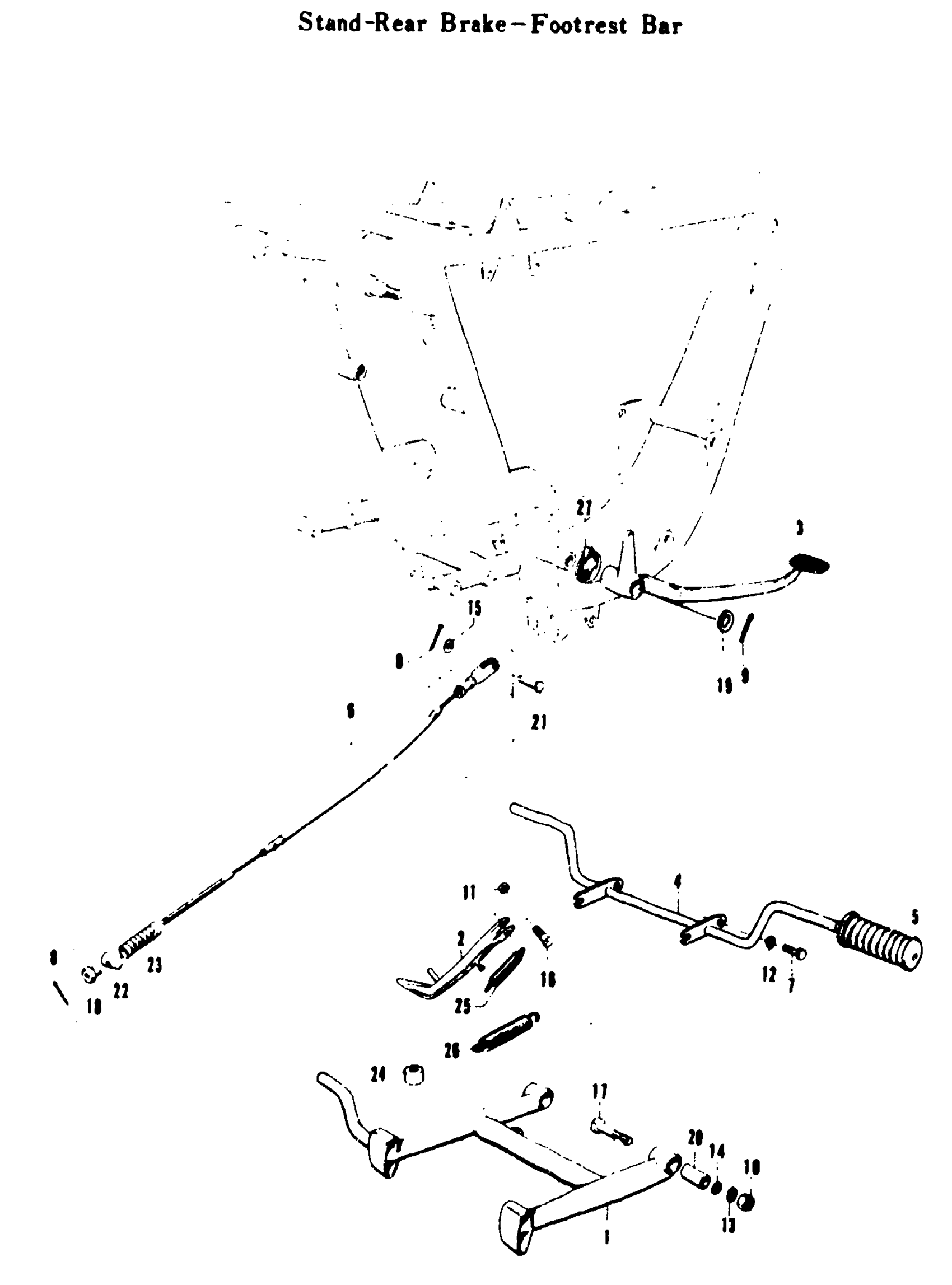

Suzuki T20 (1969) STAND-REAR BRAKE-FOOTREST BAR Diagram

#

Description
Price

1

CENTER STAND

42100-11001

Unavailable

2

SIDE STAND

42310-08002

Unavailable

3

BRAKE PEDAL | TC250

43110-11000

Unavailable

4

FOOTREST BAR

43510-11001

Unavailable

5

FOOTREST RUBBER

43551-09000

Unavailable

6

REAR BRAKE CABLE ASS | TC250

58500-11000

Unavailable

7

PLUG, DRAIN This part replaces 01121-08168.

01500-0816B

$2.50

8

COTTER PIN

04111-20128

Unavailable

9

PIN This part replaces 04111-30308.

04111-3030A

$1.49

10

NUT This part replaces 08312-11108.

08310-00107

$2.19

11

NUT This part replaces 08312-31108.

08310-00107

$2.19

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

14

WASHER This part replaces 08322-11108.

08322-01107

$2.15

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

BOLT | TC250; O.D.=10(0.39). L.=27(1.06) This part replaces 09100-10007.

09100-10287

$3.48

17

CENTER STAND BOLT | TC250; O.D.=10(0.39), L.=55(2.17)

09100-10017

Unavailable

18

.NUT | TC250 This part replaces 09150-06001.

09150-06010

$3.10

19

BRAKE PEDAL WASHER | TC250; I.D.=21.5(0.85). O.D=32(1.26) T=2.3(0.09)

09160-21001

Unavailable

20

CENTER STAND SPACER | TC250; I.D.=10.4(0.41). O.D.=16(0.63) W.=30(1.18)

09180-10001

$3.58

21

REAR BRAKE CABLE CONECTOR PIN | TC250

09200-05001

$1.65

22

.PIN (13X18) | TC250 This part replaces 09209-13003.

09209-13018

$3.42

23

REAR BRAKE CABLE BOOT | TC250

09287-05001

Unavailable

24

SIDE STAND BUFFER | I.D.=7(0.28). O.D.=20(0.79) W=20(0.79)

09320-07001

$2.92

25

SPRING This part replaces 09443-14005.

09443-14017

$3.04

26

SPRING | TC250 This part replaces 09443-16005.

09443-16005-XC0

Unavailable

27

BRAKE PEDAL RETURN SPRING | TC250

09448-39001

Unavailable
