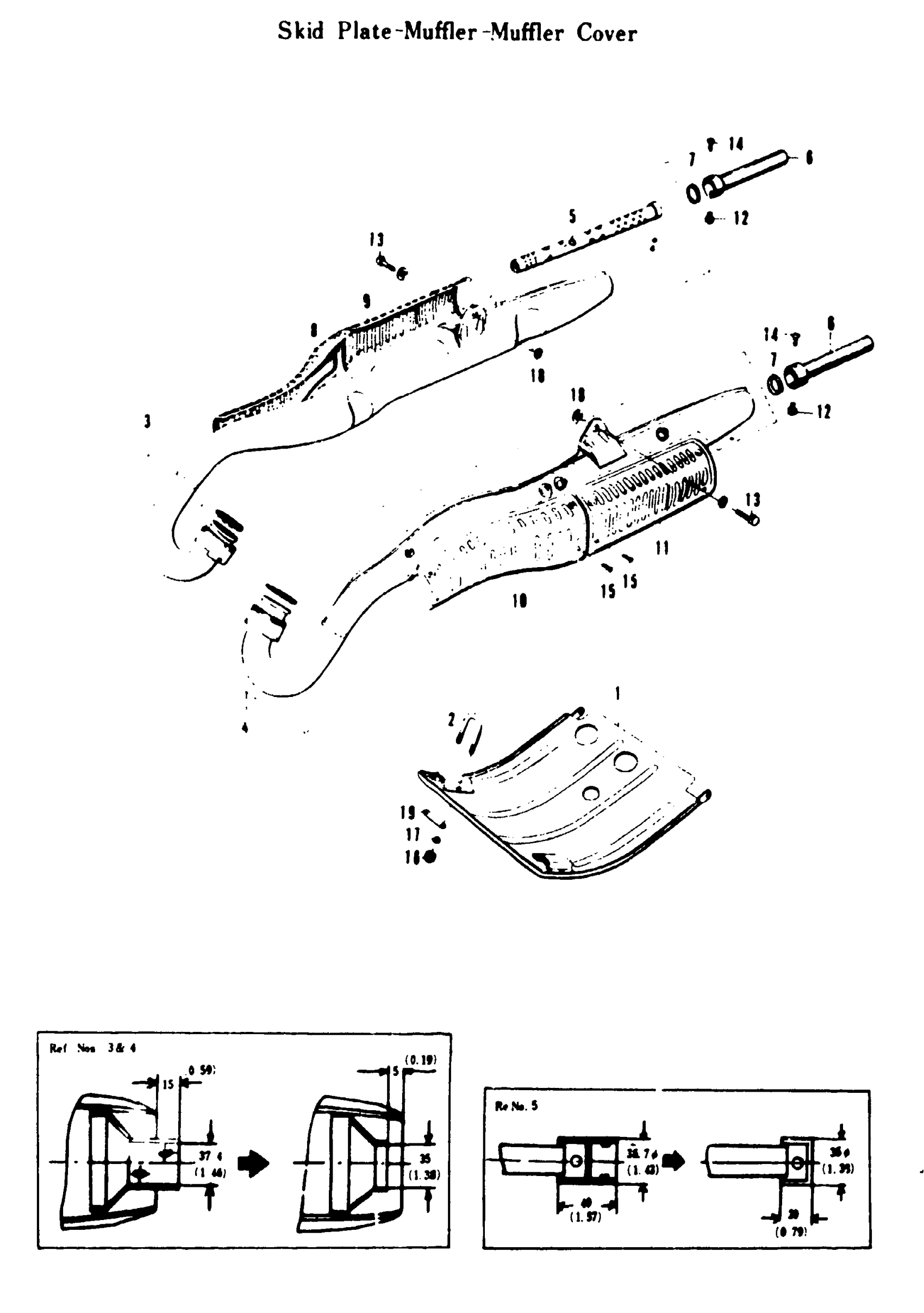

Suzuki T20 (1969) SKID PLATE - MUFFLER - MUFFLER COVER Diagram

#

Description
Price

1

SKID PLATE

11910-11200

Unavailable

2

SKID PLATE BOLT

11921-11200

Unavailable

3

RIGHT MUFFLER ASS'Y

14301-11201

Unavailable

3

RIGHT MUFFLER ASS'Y | UP TO E. NO. T20-54251

14301-11200

Unavailable

4

LEFT MUFFLER ASS'Y

14302-11201

Unavailable

4

LEFT MUFFLER ASS'Y | UP TO F. NO. T20-54251

14302-11200

Unavailable

5

MUFFLER BAFFLE PIPE

14510-11202

Unavailable

5

MUFFLER BAFFLE PIPE | UP TO E. NO. T20-54251

14510-11200

Unavailable

6

MUFFLER TAIL PIPE | UP TO E. NO. T20-54251

14631-11200

Unavailable

7

MUFFLER TAIL PIPE GASKET | UP TO E. NO. T20-54251

14634-11210

Unavailable

8

RIGHT MUFFLER FRONT COVER

14781-11200

Unavailable

9

RIGHT MUFFLER REAR COVER

14782-11200

Unavailable

10

LEFT MUFFLER FRONT COVER

14791-11200

Unavailable

11

LEFT MUFFLER REAR COVER

14792-11200

Unavailable

12

HEXAGON BOLT | ISO

01111-06088

Unavailable

12

HEXAGON BOLT | UP TO E. NO. T20-54251

01111-05081

Unavailable

13

BOLT 10X16 This part replaces 01221-10167.

01204-10167

$3.20

14

SCREW | ISO This part replaces 02111-06087.

02112-06087

$1.49

14

CROSS HEAD SCREW | UP TO E. NO. T20-54251

02111-05082

Unavailable

15

SCREW This part replaces 02111-06087.

02112-06087

$1.49

16

NUT, LICENSE HOLDER This part replaces 08313-11067.

08313-10067

$1.84

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

WASHER This part replaces 08322-21108.

08322-01107

$2.15

19

SKID PLATE WASHER

09169-06001

Unavailable
