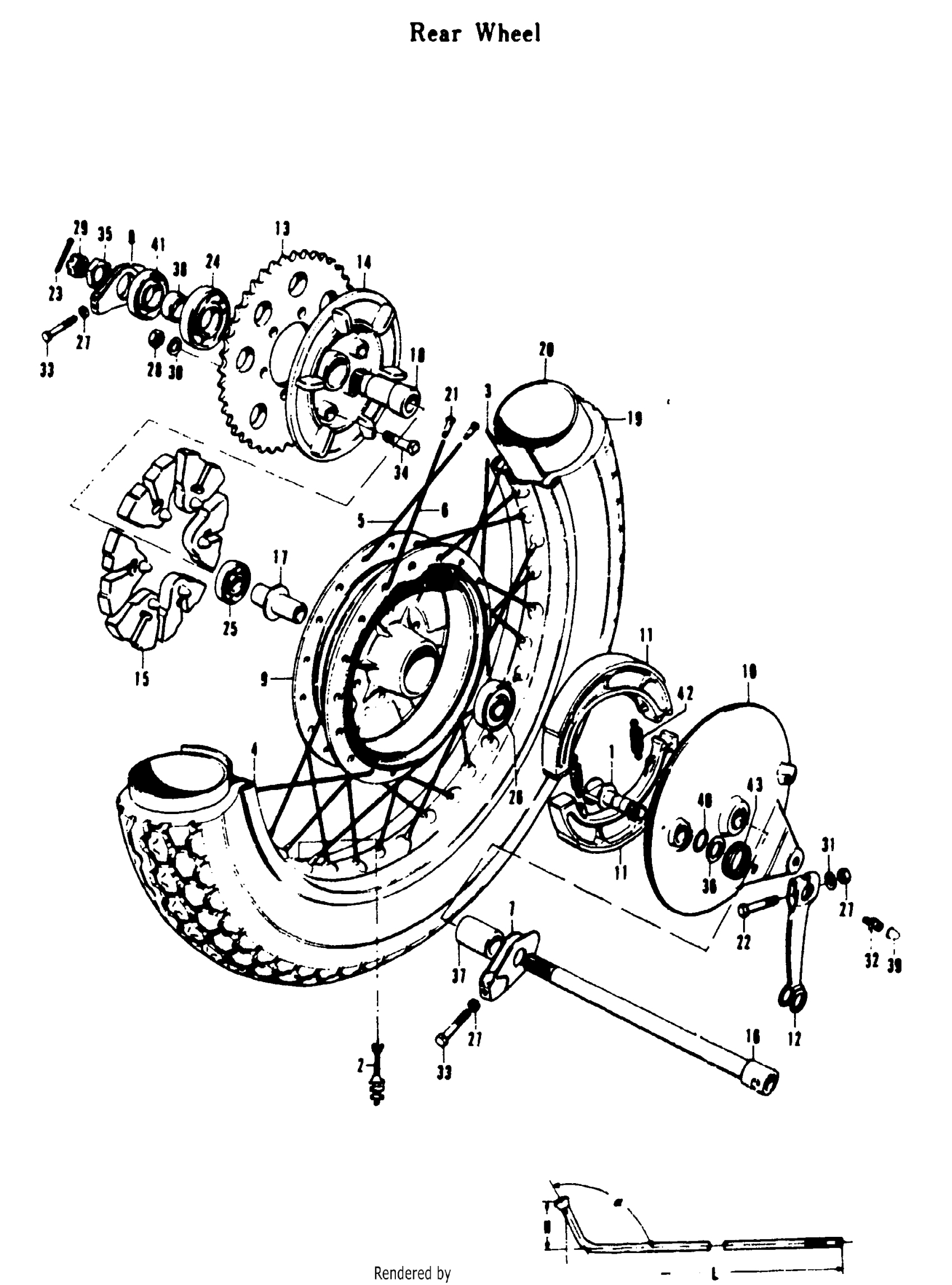

Suzuki T20 (1969) REAR WHEEL Diagram

#

Description
Price

REAR HUB ASS'Y | TC250; INCLUDES REF. NOS. 1.9 12 1418, 22, 27, 29, 31, 32, 35, 43

64000-11811

Unavailable

1

BRAKE CAM SHAFT | TC250

54440-11002

Unavailable

2

INNER TUBE VALVE | TC250

55250-01000

Unavailable

3

IN TUBE PROTECT | TC250; SIZE=2.75"-18" This part replaces 55261-11010.

55261-26F10

$4.39

4

WHEEL RIM | SIZE=1.60A"X18"

55311-11020

Unavailable

4

SPOKE SET | INCLUDES REF. NOS. 5.6 & 21

55320-11819

Unavailable

5

INNER SPOKE | TC250; D.=3.2(0.13), L.=15.2(5.98)A.=95.5, H.=8.5(0.33)

55321-11020

Unavailable

6

OUTER SPOKE | TC250; D=3.2(0.13), L=151.5(5.96) A=80, H.=10.5(0.41)

55322-11020

Unavailable

7

RIGHT CHAIN ADJUSTER | TC250; CHROME-PLATED

61410-11600

Unavailable

8

LEFT CHAIN ADJUSTER | TC250; CHROME-PLATED

61420-11600

Unavailable

9

REAR HUB DRUM | TC250

64110-11000

Unavailable

10

REAR HUB PANEL | TC250

64210-11000

Unavailable

11

SHOE SET,BRAKE( | TC250 This part replaces 64410-11000.

64400-11870

Unavailable

12

REAR BRAKE CAM LEVER | TC250

64451-11000

Unavailable

13

REAR SPROCKET | #525.N T=41

64511-11000

Unavailable

13

REAR SPROCKET | OPT. #525. N T=38

64511-11700

Unavailable

13

REAR SPROCKET | OPT. #525. N T=39

64511-11710

Unavailable

13

REAR SPROCKET | OPT. #525. N T=40

64511-11720

Unavailable

13

REAR SPROCKET | OPT. #525. N T=42

64511-11730

Unavailable

14

SPROCKET MOUNTING DRUM | TC250

64611-11000

Unavailable

15

SHOCK ABSURBER, REAR DRUM | TC250 This part replaces 64651-11000.

64651-11002

Unavailable

16

REAR AXLE | TC250; O.D=16(0.63), L=25.2(9.92) CHROME-PLATED

64710-11000

Unavailable

17

REAR HUB BEARING SPACER | TC250; L=57(2.24)

64730-11000

Unavailable

18

SPROCKET MOUNTING DRUM SHAFT | TC250

64761-11000

Unavailable

19

REAR TIRE | SIZE=300" 18"

65100-11010

Unavailable

20

REAR INNER TUBE | INCLUDES REF. NO. 2 SIZE=3.00"-18"

65200-11600

Unavailable

21

SPOKE NIPPLE | TC250

65325-03020

Unavailable

22

HEXAGON BOLT

01111-06408

Unavailable

23

COTTER PIN

04111-40358

Unavailable

24

BALL BEARING

08113-62060

$34.25

25

BEARING, FRONT HUB RH | SEALED BEARING This part replaces 08143-62030.

08143-62037

$18.47

26

BEARING, LH | SEALED BEARING This part replaces 08143-63030.

08143-63037

$22.58

27

.NUT This part replaces 08311-11068.

08310-00067

$2.13

28

NUT This part replaces 08312-31108.

08310-00107

$2.19

29

CASTLE NUT | CHROME-PLATED

08314-31167

Unavailable

30

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

31

WASHER This part replaces 08322-21068.

08322-01067

$2.13

32

GREASE NIPPLE

08351-11009

$7.51

33

NO DESCRIPTION AVAILABLE | TC250; O.D. =6(0.24), L.=40(1.57) This part replaces 09100-08002.

09100-08290

Unavailable

34

BOLT | TC250; O.D. =10(0.39), L. =35(1.38) This part replaces 09119-10002.

09105-10001

$2.87

35

NUT | TC250 This part replaces 09140-24002.

09140-24010

Unavailable

36

WASHER | TC250; I.D. =15(0.59), O.D. =24(0.9TC250; I.D. =15(0.59), O.D. =24(0.94) T =1.6(0.06) This part replaces 09160-15001.

09160-15048

$2.56

37

REAR AXLE SPACER | TC250; I.D. =17.5(0.69), O.D. =28(1.10) W. =40(1.57), CHROMOPLATED

09180-17005

Unavailable

38

SPROCKET MOUNTING DRUM SHAFT S | TC250; I.D. =25(0.98), O.D. 30.5(1.TC250; I.D. =25(0.98), O.D. 30.5(1.20) W. =14.5(0.57)

09180-25001

Unavailable

39

GREASE NIPPLE CAP | TC250

09251-04001

Unavailable

40

O RING (ID:14.8,D:2.40) | TC250; I.D. =14.8(0.58), D. =24(0.0TC250; I.D. =14.8(0.58), D. =24(0.09) This part replaces 09280-15001.

09280-15003

$1.76

41

SEAL,OIL(30.5X5 | TC250; I.D. =30.5(1.20), O.D. =52.2TC250; I.D. =30.5(1.20), O.D. =52.2(2.05) W. =8(0.31) This part replaces 09283-30001.

09285-30003

$23.97

42

BRAKE SHOE SPRING | TC250

09443-10001

Unavailable

43

SPRING | TC250; CHROME-PLATED This part replaces 09448-30001.

09448-30001-XC0

Unavailable
