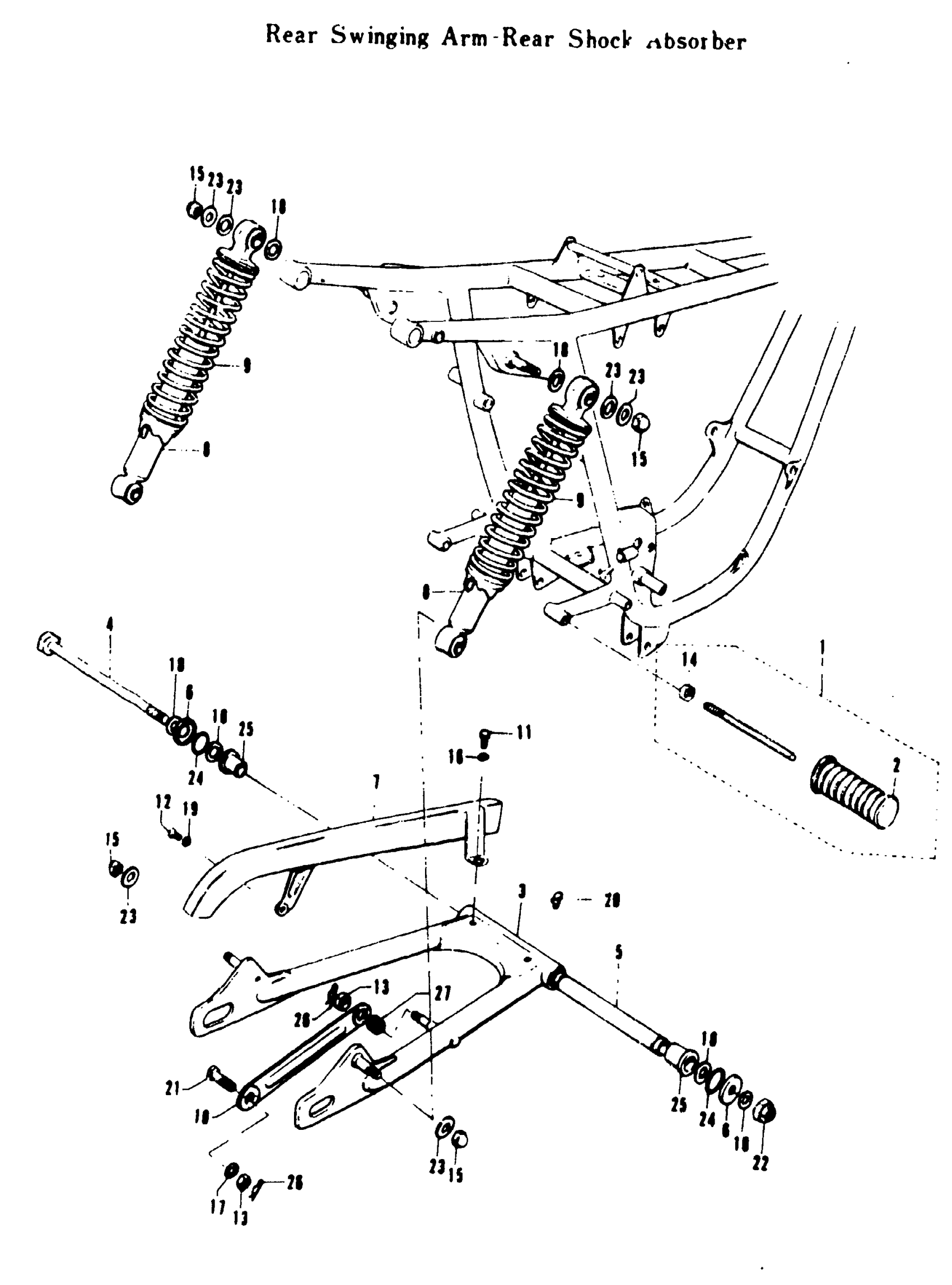

Suzuki T20 (1969) REAR SWINGING ARM - REAR SHOCK ABSORBER Diagram

#

Description
Price

1

FOOTREST SET,PI This part replaces 43600-10808.

43600-10809

Unavailable

2

FOOTREST SET,PI This part replaces 43612-11000.

43600-10809

Unavailable

3

REAR SWINGING ARM | TC250; COLOR BLACK, INCLUDES REF NO. 20 & 25

61101-11820-019

Unavailable

4

REAR SWINGING ARM PIVOT SHAFT | TC250; O D= 1200471.E=2178.543

61211-11003

Unavailable

5

REAR SWINGING ARM PIVOT SHAFT | TC250; I.D.=12.1(0.48), O.D.=1.8(0.TC250; I.D.=12.1(0.48), O.D.=1.8(0.71) L=182.2(7.17)

61251-09200

Unavailable

6

REAR SWINGING ARM DUST SEAL CO | TC250TC250

61262-09200

$3.59

7

CASE, CHAIN | TC250; CHROME=PLATED This part replaces 61310-11601.

61310-18600

Unavailable

8

REAR SHOCK ABSORBER ASS'Y

62100-11600

Unavailable

9

REAR SHOCK ABSORBER SPRING | I.D=36(1.42), O.D. 50(1.97) L=203 5(8.01), CHORME-PLATED

62211-11602

Unavailable

10

REAR TORQUE LINK | TC250

64310-11000

Unavailable

11

HEXAGON BOLT

01111-06128

Unavailable

12

CROSS HEAD SCREW | ISO

02121-05128

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 02121-05121.

02122-05121

Unavailable

13

NUT This part replaces 08311-11108.

08310-00107

$2.19

14

NUT This part replaces 08312-31108.

08310-00107

$2.19

15

NUT This part replaces 08313-11107.

08313-10107

$2.50

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

18

WASHER This part replaces 08322-11128.

08322-01127

$1.84

19

WASHER,LOCK This part replaces 08323-31058.

08323-3105A

$1.49

20

NIPPLE, GREASE | TC250 This part replaces 08351-31008.

08351-3100A

$4.45

21

REAR TORQUE LINK BOLT | TC250;O.D.=10089.1=28(1.10)

09101-10003

Unavailable

22

REAR SWINGING ARM PIVOT SHAFT | TC250; ISOTC250; ISO

09159-12102

$3.23

22

REAR SWINGING ARM PIVOT SHAFT | TC250TC250

09159-12002

Unavailable

23

WASHER, LOWER (10.5X24X2.3) | TC250; I.D.=10.5(0.41), O.D. =24(0.95) T=23 (0.09) This part replaces 09160-10001.

09160-10093

$2.35

24

.O-RING (D:3,ID:24.5) | TC250; I.D.=24.5(0.96), O.D.= 30.5TC250; I.D.=24.5(0.96), O.D.= 30.5(1.20) T=3.0(0.12) This part replaces 09280-24001.

09280-24003

$1.55

25

REAR SWINGING ARM BUSHING | TC250

09301-18001

Unavailable

26

CLIP | TC250 This part replaces 09385-10001.

09385-10005

$1.56

27

REAR TORQUE LINK SPRING | TC250

09440-18002

$1.49
