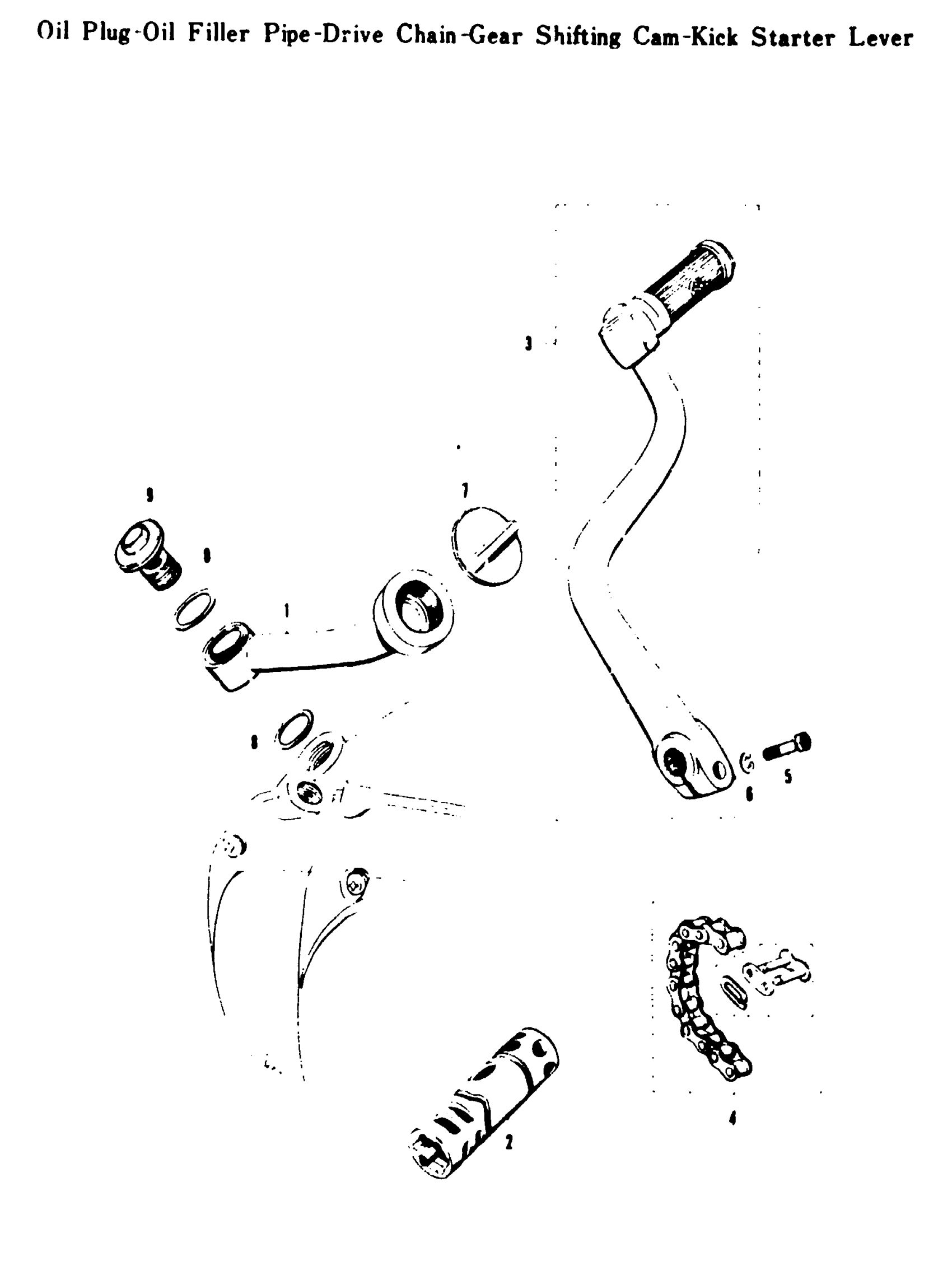

Suzuki T20 (1969) OIL PLUG - OIL FILLER PIPE-DRIVE CHAIN-GEAR SHIFTING CAM-KICK STARTER LEVER Diagram

#

Description

Price

1

OIL FILLER PIPE

24840-11201

Unavailable

2

GEAR SULTING CAM | THIS PART ALLOWS TRANSMISSION GEARTO BE SHIFTED DIRECTLY FROM 2ND TO1ST BEYOND NEUTRAL

25310-11701

Unavailable

3

KICK STERTER LEVER ASS'Y

26300-11201

Unavailable

4

CHAIN ASSY, DRIVE | 525Tx941 This part replaces 27600-11210.

27600-16410

Unavailable

5

BOLT This part replaces 01122-08258.

01500-08257

$2.53

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

7

PLUG SET | T20 This part replaces 09259-20003.

09200-20811

$3.63

8

.O-RING (D:2.4,ID:21.8) | T20; ID 21.8 (0.86), D.=2.4(0.8)

09280-22001

$1.48

9

OIL FILLER PIPE JOINT

09360-20001

Unavailable
