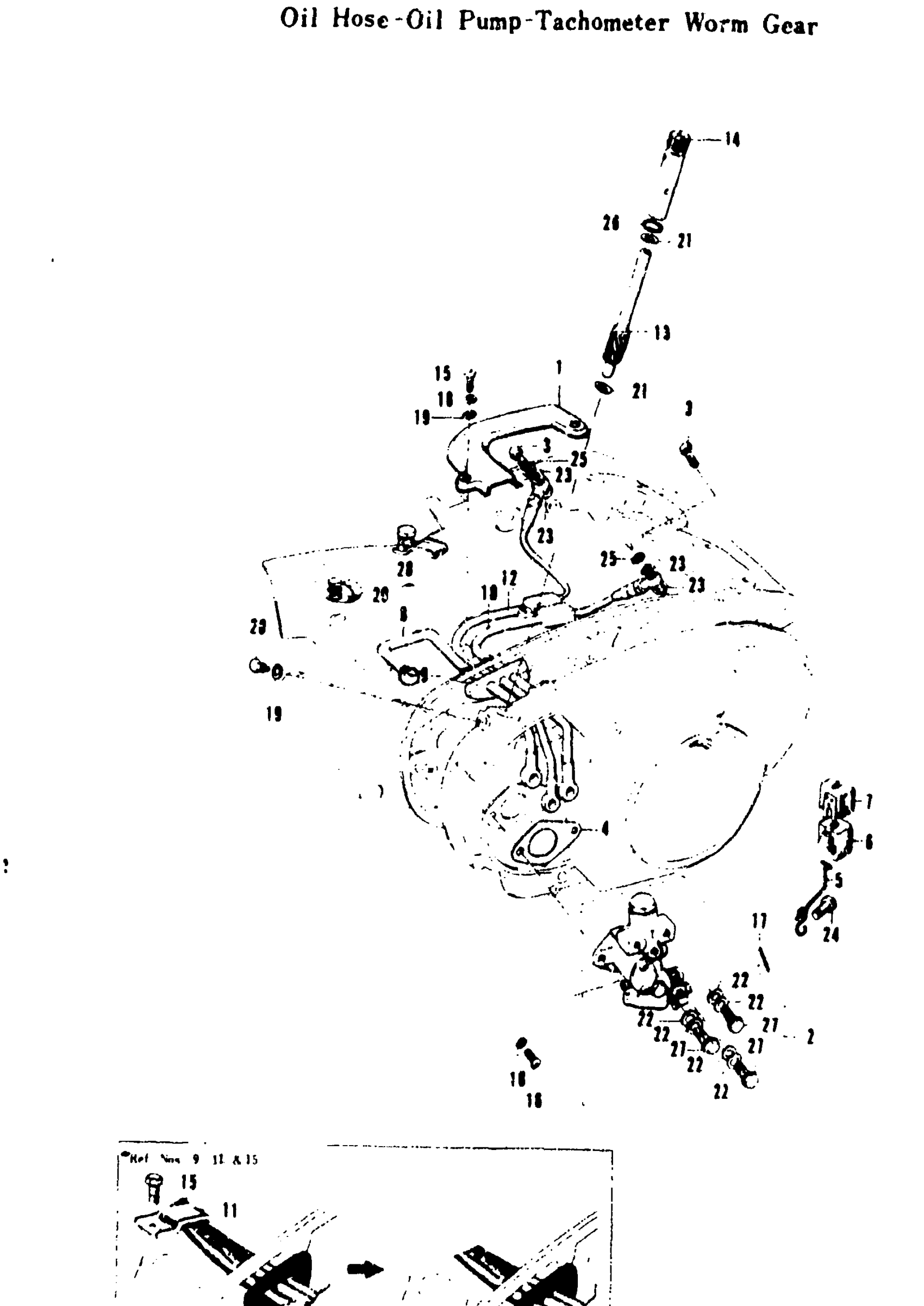

Suzuki T20 (1969) OIL HOSE - OIL PUMP-TACHOMETER WORM GEAR Diagram

#

Description
Price

1

OIL HOSE COVER | TC250; FROM F. NO. T20-21413

11441-11030

Unavailable

2

OIL FUMP ASS'Y | TC250

16002-11816

Unavailable

3

CHECK VALVE | TC250

16710-11011

Unavailable

4

OIL PUMP GASKET | TC250

16731-11000

Unavailable

5

OIL PUMP LEVER CHAIN | TC250

16755-11010

Unavailable

6

OIL PUMP LEVER CHAIN CONNECTOR | TC250

16756-11030

Unavailable

7

OIL PUMP LEVER CHAIN CONNECTOR | TC250TC250

16757-11030

Unavailable

8

OIL TANK SIDE OIL HOSE | TC250

16810-11031

Unavailable

9

OIL HOSE BUSHING | TC250

16819-11001

Unavailable

9

OIL HOSE BUSHING | TC250; UP TO F. NO T20-21412

16819-11000

Unavailable

10

RIGHT CYLINDER SIDE OIL HOSE | TC250; I.D.=4(0.16),O.D.=6(0.24)

16820-11031

Unavailable

11

OIL HOSE CLIP BAND | TC250; UP TO F NO T20-21412

16826-11010

Unavailable

12

LEFT CYLINDER SIDE OIL HOSE | I.D.=4(0.16),O.D.=6(0.24)

16840-11030

Unavailable

13

TACHOMETER DRIVEN GEAR | TC250; NT:9

26431-11000

Unavailable

14

TACHOMETER DRIVEN GEAR BUSHING | TC250

26441-11000

Unavailable

15

CROSS HEAD SCREW

02111-06088

Unavailable

15

HEXAGON BOLT | UP TO F. NO T20-21412

01111-06088

Unavailable

16

SCREW This part replaces 02111-06128.

02112-06127

$1.84

17

COTTER PIN

04111-16128

Unavailable

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

20

BOLT (6X10) | TC250; O.D. =6(0.24). L.=10(0.39) This part replaces 09135-06002.

09135-06501

$3.04

21

TACHOMETER DRIVEN GEAR THRUST | TC250; I.D. =8(0.31). O.D. =13.7(0.TC250; I.D. =8(0.31). O.D. =13.7(0.54) L. =1.0(0.04)

09160-08003

$2.23

22

GASKET | TC250; I.D. =6.2(0.24). O.D. =12(0.47) T. =1.5(0.06) This part replaces 09168-06002.

09168-06004

$1.49

23

CHECK VALVE GASKET | TC250; I.D. =10(0.39),O.D. =16(0.63) T. =3(0.12)

09168-10005

$2.06

24

OIL PUMP LEVER PIN | TC250

09200-04001

Unavailable

25

CHECK VALVE "O" RING | TC250; I.D. =7.6(0.30), D. =1.3(0.05)

09280-08003

$1.49

26

TACHOMETER DRIVEN GEAR BUSHING | TC250; I.D. =9.6(0.38). D. =1.3(0.0TC250; I.D. =9.6(0.38). D. =1.3(0.05)

09280-10001

$2.02

27

OIL PUMP UNION BOLT | TC250

09360-06003

$3.76

28

A.C. GENERATOR WIRING HARNESS | TC250; 2 PCS UP TO F. NO. T20-21412TC250; 2 PCS UP TO F. NO. T20-21412

09403-00007

Unavailable

29

OIL HOSE CLIP BAND | TC250

09403-00008

Unavailable
