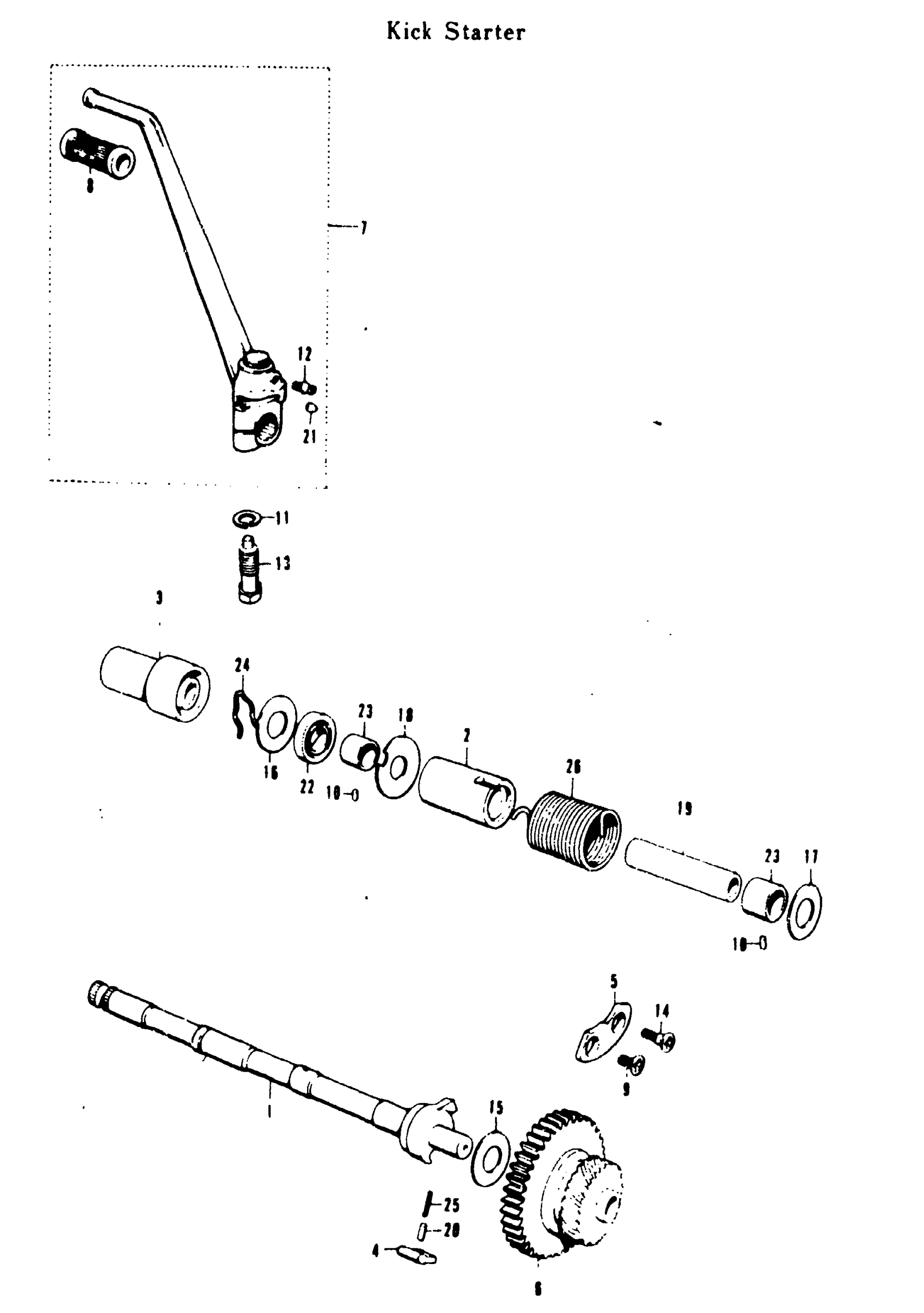

Suzuki T20 (1969) KICK STARTER Diagram

#

Description
Price

1

KICK STARTER SHAFT | TC250

26211-11000

Unavailable

2

KICK STARTER SHAFT RETURN SPRI | TC250TC250

26221-11000

Unavailable

3

KICK STARTER SHAFT BUFFER | TC250

26225-11000

Unavailable

4

KICK STARTER PAWL | TC250

26231-08001

Unavailable

5

KICK STARTER STOPPER | TC250

26232-11000

Unavailable

6

KICK STARTER DRIVE GEAR | TC250; N.T.=39

26240-11000

Unavailable

7

KICK STARTER LEVER ASS'Y

26300-11000

Unavailable

8

RUBBER,KICK STA | TC250 This part replaces 26352-01000.

26352-01020

$3.25

9

SCREW This part replaces 02121-06168.

02122-06167

$1.49

10

DOWEL PIN

04221-04069

$2.12

11

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

12

GREASE NIPPLE

08351-11009

$7.51

13

KICK STARTER LEVER BOLT | TC250; O.D.=10(0.39). L.=37 5(1.48)

09135-10002

Unavailable

14

KICK STARTER STOPPER SCREW | TC250

09139-06002

$2.38

15

KICK STARTER DRIVE GEAR OUTER | TC250; I.D.=1 3(0.51).O.D.=31.5(1.2TC250; I.D.=1 3(0.51).O.D.=31.5(1.24) S=1.5(0.06)

09160-13002

Unavailable

16

KICK STARTER SHAFT LEFT THRUST | TC250; I.D.=16(0.63).O.D.=33(1.30)TC250; I.D.=16(0.63).O.D.=33(1.30)D=1.6(0.06)

09160-16002

Unavailable

17

KICK STARTER SHAFT RIGHT THRUS | TC250; I.D.=16(0.63).O.D.=30.5(1.12TC250; I.D.=16(0.63).O.D.=30.5(1.12) T=1.0(0 04)

09160-16003

$2.92

18

KICK STARTER SHAFT RETURN SPRI | TC250; I.D.=16(0.63).O.D.=38(1.50)TC250; I.D.=16(0.63).O.D.=38(1.50)T =1.2(0.05)

09166-16001

Unavailable

19

KICK STARTER SHAFT RETURN SPRI | TC250; I.D.=16.7(0.66).O.D.=19.3(0.TC250; I.D.=16.7(0.66).O.D.=19.3(0.75) W=52(2.05)

09180-16003

Unavailable

20

KICK STARTER PAWL ROLLER | TC250; O.D.=5(0.20).I.=10.5(0.41)

09202-05003

Unavailable

21

GREACE NIPPLE CAP | TC250

09251-04001

Unavailable

22

KICK STARTER SHAFT OIL SEAL | TC250; I.D.=16(0.63).O.D.=30(1.18)W =8(0.31)

09285-16001

Unavailable

23

KICK STARTER SHAFT BUSHING | TC250; I.D.=16(0.63).O.D.=22(0.87)W =17.5(0.69)

09300-16002

Unavailable

24

KICK STARTER SHAFT CIRCLIP | TC250

09384-16001

Unavailable

25

KICK STARTER PAWL SPRING | TC250

09440-04002

Unavailable

26

KICK STARTER SHAFT RETURN SPRI | TC250TC250

09448-37001

Unavailable
