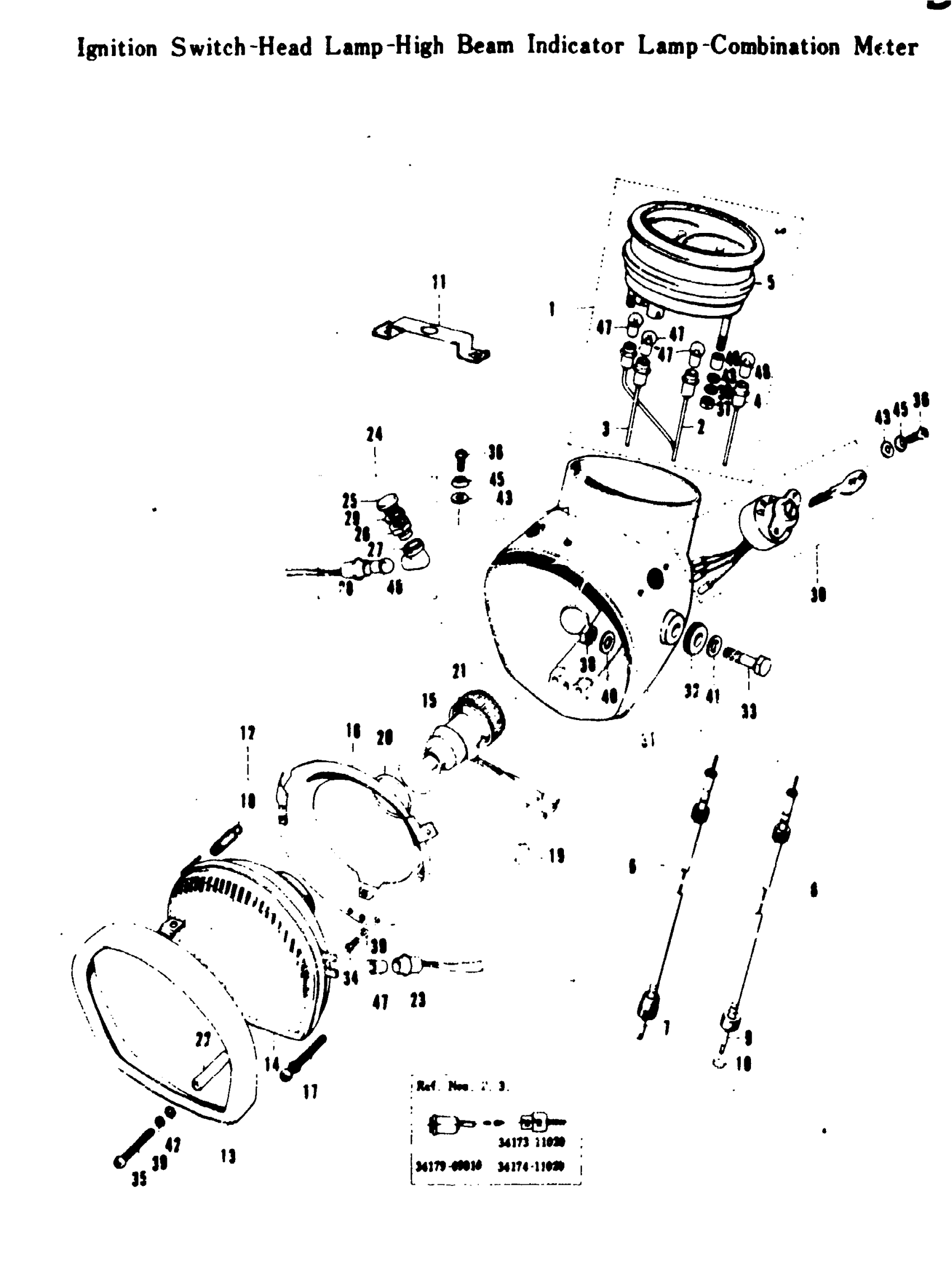

Suzuki T20 (1969) IGNITION SWITCH-HEAD LAMP-HIGH BEAM INDICATOR LAMP - COMBINATION METER Diagram

#

Description
Price

1

COMBINATION METER ASS'Y | TC250

34100-10602

Unavailable

2

SPEEDOMETER LAMP SOCKET | TC250

34173-11020

Unavailable

3

NEUTRAL LAMP SOCKET | TC250

34174-11020

Unavailable

3

NEUTRAL LAMP SOCKET | TC250

34179-09010

Unavailable

4

TURN SIGNAL INDICATOR LAMP SOC | TC250; FROM E. NO T20-49662TC250; FROM E. NO T20-49662

34175-12020

Unavailable

5

COMBINATION MATER GASKET | TC250

34181-11010

Unavailable

6

SPEEDOMETER CABLE ASS'Y | TC250

34910-11030

Unavailable

7

SPEEDOMETER INNER CABLE | TC250; L. =820(32.28)

34911-11030

Unavailable

8

NO DESCRIPTION AVAILABLE | TC250 This part replaces 34940-11020.

34940-11030

Unavailable

9

TACHOMETER INNER CABLE | TC250; L. =964(37.95)

34941-11030

Unavailable

10

TACHOMETER CABLE OIL SEAL | TC250

34943-11030

$3.11

11

SPEEDOMETER BRACKET | TC250

34951-10000

Unavailable

12

HEAD LAMP ASS'Y | TC250

35100-11611

Unavailable

13

HEAD LAMP RIM | TC250

35111-11611

Unavailable

14

HEAD LAMP LENS UNIT | TC250

35121-11610

Unavailable

15

HEAD LAMP BULB SOCKET | TC250; 12V.35/25W

35122-11611

Unavailable

16

HEAD LAMP UNIT HOUSING | TC250

35141-11611

Unavailable

17

HEAD LAMP BEAM ADJUSTING SCREW | TC250; O.D. =6(0.24), L.=35(1.38)

35151-11610

Unavailable

18

HEAD LAMP UNIT HOUSING SPRING | TC250

35154-11610

Unavailable

19

HEAD LAMP BEAM ADJUSTING HOLE | TC250TC250

35159-11610

Unavailable

20

HEAD LAMP BULB RUBBER GASKET | TC250; I.D. =36.8(1.45), O.D. =40.8(1.62) T. =2(0.08)

35177-11610

Unavailable

21

HEAD LAMP BULB CLAMP | TC250

35178-11610

Unavailable

22

HEAD LAMP RIM FITTING SPACER | TC250; I.D. =5.6(0.22), O.D. =8(0.31) L. =22.2(0.87)

35189-11610

Unavailable

23

PARKING LAMP BULB SOCKET | TC250

36118-11610

Unavailable

24

HIGH BEAM INDICATOR LAMP ASS'Y | TC250

36330-01610

Unavailable

25

HIGH BEAM INDICATOR LAMP LENS | TC250

36331-01610

Unavailable

26

HIGH BEAM INDICATOR LAMP LENS | TC250TC250

36332-01610

Unavailable

27

HIGH BEAM INDICATOR LAMP HOLDE | TC250TC250

36334-01610

Unavailable

28

HIGH BEAM INDICATOR LAMP SOCKE | TC250TC250

36335-01611

Unavailable

29

HIGH BEAM INDICATOR LAMP LENS | TC250; I.D. =10.5(0.41), O.D. =18(0TC250; I.D. =10.5(0.41), O.D. =18(0.71) T. =1.0(0.04)

36337-01610

Unavailable

30

IGNITION SWITCH ASS'Y | TC250

37110-11013

Unavailable

31

HEAD LAMP HOUSING | TC250; COLOR : BLACK

51810-11691

Unavailable

31

HEAD LAMP HOUSING | TC250; COLOR : CANDY RED

51810-11696

Unavailable

31

HEAD LAMP HOUSING | TC250; COLOR : CANDY BLUE

51810-11697

Unavailable

32

HEAD LAMP HOUSING RUBBER | TC250; FROM E. NO T20-51808

51827-11000

Unavailable

33

BOLT This part replaces 01221-08257.

01204-08257

$1.96

34

CROSS HEAD SCREW | ISO

02111-06168

Unavailable

34

CROSS HEAD SCREW

02111-05161

Unavailable

35

CROSS HEAD SCREW | ISO

02111-05367

Unavailable

35

CROSS HEAD SCREW

02111-05352

Unavailable

36

SCREW | ISO This part replaces 02131-04107.

02122-0410A

$1.49

36

CROSS HEAD SCREW

02131-04102

Unavailable

37

NUT | ISO This part replaces 08311-11058.

08310-00057

$1.84

37

HEXAGON NUT

08311-11051

Unavailable

38

NUT This part replaces 08312-11088.

08310-00087

$2.13

39

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

40

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

41

WASHER This part replaces 08322-11087.

08322-01087

$2.13

42

WASHER This part replaces 08322-21058.

08322-01057

$2.13

43

SPEEDOMETER WASHER | I.D. =5.2(0.20), O.D. =16(0.63) T.=1.0(0.04)

09160-05013

$1.49

44

HEAD LAMP RIM SCREW GASKET | TC250; I.D. =4.2(0.17), O.D. =12.5(0.49) T. =0.3(0.01)

09161-04005

Unavailable

45

HEAD LAMP RIM WASHER | TC250; I.D. =4.5(0.18), O.D. =11.5(0.45) T. =0.3(0.01)

09165-04004

$1.93

46

SPEEDOMETER CUSHION

09320-07002

Unavailable

47

BULB | TC250; 12V.3W

09471-12001

$1.65

48

BULB | TC250; 12V. 1.5W

09471-12004

$2.69
