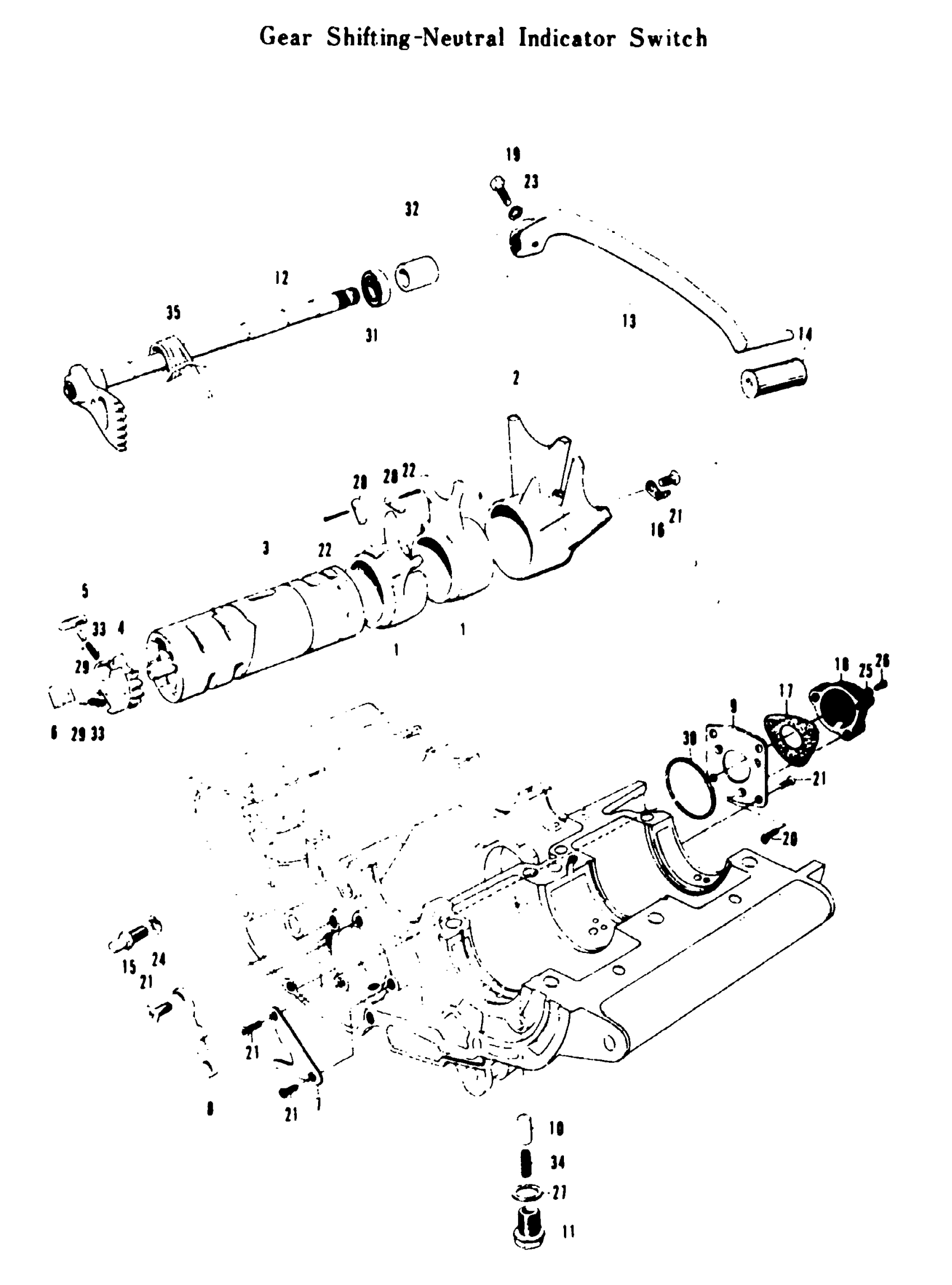

Suzuki T20 (1969) GEAR SHIFTING - NEUTRAL INDICATOR SWITCH Diagram

#

Description
Price

1

LOW SPEED GEAR SHIFTING FORK | TC250

25211-11000

Unavailable

2

HIGH SPEED GEAR SHIFTING FORK | TC250

25221-11001

Unavailable

3

GEAR SHIFTING CARN COMP

25310-11001

Unavailable

4

GEAR, GEAR SHIFT CAM DRIVEN | TC250 This part replaces 25322-11000.

25322-31310

$26.93

5

PAWL, GEAR SHIFT NO.2 | TC250 This part replaces 25324-11000.

25324-34201

$7.22

6

PAWL, GEAR SHIFT NO.1 | TC250 This part replaces 25323-11000.

25323-34201

$7.22

7

GEAR SHIFTING CAM SIDE PLATE | TC250

25331-11001

$6.38

8

GEAR SHIFTING CAM GUIDE | TC250

25341-11000

Unavailable

9

GEAR SHIFTING CAM RETAINER | TC250

25342-11000

Unavailable

10

GEAR SHIFTING CAM STOPPER | TC250

15351-11000

Unavailable

11

HOLDER, STOPPER | TC250 This part replaces 25352-11000.

25352-11010

$7.22

12

GEAR SHIFTING SHAFT | TC250

25510-11000

Unavailable

13

GEAR SHIFTING LEVER ASS'Y | TC250

25600-11000

Unavailable

14

.RUBBER,GEAR SHIFT PEDAL | TC250 This part replaces 25652-03201.

25652-16510

$3.74

15

STOPPER, ARM | TC250 This part replaces 25671-01000.

25671-01011

$4.48

16

CONTACT, SWITCH | TC250TC250 This part replaces 37711-05100.

37711-05101

$4.21

17

NEUTRAL SWITCH BODY GASKET | TC250

37712-11001

Unavailable

18

NEUTRAL SWITCH BODY | TC250

37721-11002

Unavailable

19

BOLT This part replaces 01112-06208.

01500-06207

$2.28

20

CROSS HEAD SCREW | ISO

02121-04128

Unavailable

20

CROSS HEAD SCREW

02121-04121

Unavailable

21

CROSS HEAD SCREW

02121-06128

Unavailable

22

COTTER PIN

04111-20188

Unavailable

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

25

WASHER This part replaces 08322-21038.

08322-01037

$1.93

26

NEUTRAL INDICATOR SWITCH TERMI | TC250; ISOTC250; ISO

09125-03103

Unavailable

26

NEUTRAL INDICATOR SWITCH TERMI | TC250; O D =3(0.12), L. =5(0.20)TC250; O D =3(0.12), L. =5(0.20)

09125-03003

Unavailable

27

GEAR SHIFTING CAM STOPPER BOLT | TC250TC250

09168-14004

$1.83

28

GEAR SHIFTING FORK GUIDE | TC250

09200-06002

Unavailable

29

GEAR SHIFTING POWL ROLLER | TC250; O.D.=5(0.20), L.=8(0.31)

09261-05003

$1.54

30

GEAR SHIFTING CAM RETAINER GAS | TC250; I.D.=47.4(1.87), O.D.=52.4(2TC250; I.D.=47.4(1.87), O.D.=52.4(2.05) T.=2.6(0.10)

09280-48002

$2.19

31

OIL SEAL (12X22X9) | TC250; I.D.=1.2(0.47), O.D.=22(0.87) W.=7(0.28) This part replaces 09285-12001.

09285-12006

$6.32

32

GEAR SHIFTING SHAFT BUFFER | TC250

09320-13001

Unavailable

33

GEAR SHIFTING PAWL SPRING | TC250

09440-04003

$1.54

34

SPRING | TC250TC250 This part replaces 09440-05002.

09440-05007

$1.82

35

GEAR SHIFTING SHAFT RETURN SPR | TC250TC250

09444-26001

$5.88
