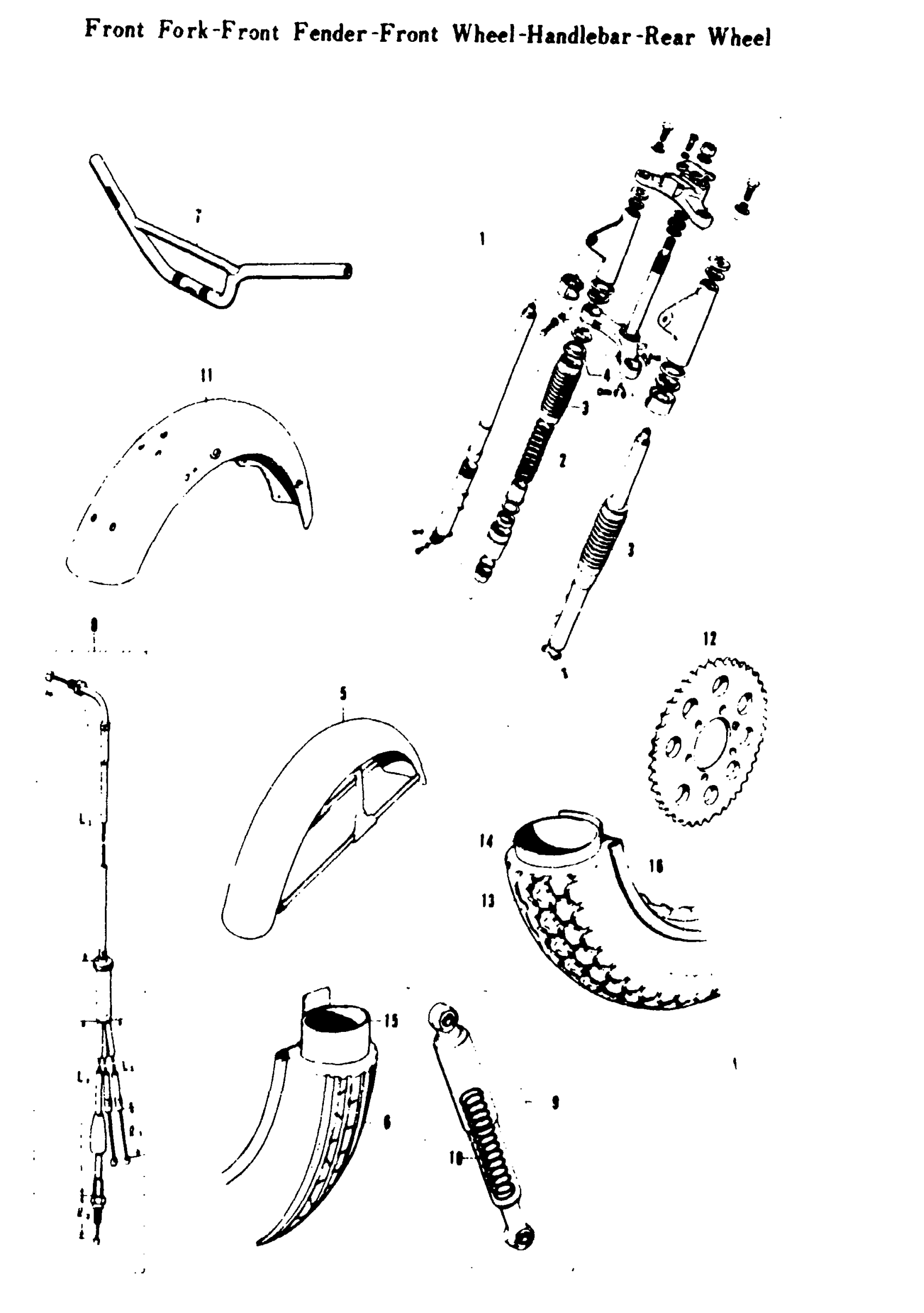

Suzuki T20 (1969) FRONT FORK - FRONT FENDER - FRONT WHEEL - HANDLEBAR - REAR WHEEL Diagram

#

Description
Price

1

FRONT FORK ASS'Y | PRIMARY PAINTED

51100-11012

Unavailable

2

FRONT FORK SPRING | I.D.=39(1.54).O D=48(1.89) L=178.5(7.03)

51171-11010

Unavailable

3

FORK SPRING COVER BOOT

51571-11010

Unavailable

4

FORK SPRING GUIDE

51573-11010

Unavailable

5

FRONT FENDER

53110-11720

Unavailable

6

FRONT TIRE | SIZE=3.00"18"

55100-11270

Unavailable

7

HANDLEBAR

56110-11600

Unavailable

8

THROTTLE CABLE ASS'Y | L=290(11.42),L=240(9.45), L=390 (15.35). T.=73(2.87),=122(4.80)

58300-11200

Unavailable

9

REAR SHOCK ABSORBER ASS'Y | CHROME PLATED

62100-11010

Unavailable

10

REAR SHOCK ABSORBER SPRING

62211-09210

Unavailable

11

REAR FENDER | COLOR SILVER METALIC

63110-11202-046

Unavailable

11

REAR FENDER | UP TO F. NO. T20-52424 COLOR SILVERMETALLIC

63110-11201-046

Unavailable

12

REAR SPROCKET | N J.=44

64511-11750

Unavailable

13

REAR TIRE | SIZE=3.05" 18"

65100-11270

Unavailable

14

REAR INNER TUBE | SIZE=3.50" 18"

65200-11270

Unavailable

15

FRONT INNER TUBE | SIZE=3.00" 18"

65200-11600

Unavailable

16

WHEEL RIM | SIZE=185B" x18"

65311-11220

Unavailable

17

SCREW | ISO This part replaces 02111-05127.

02112-05127

$1.97

17

CROSS HEAD SCREW

02111-05122

Unavailable

18

CABLE CLIP BALID

09402-00110

Unavailable

19

COMBINATION METER CABLE CLIP

09403-00020

Unavailable
