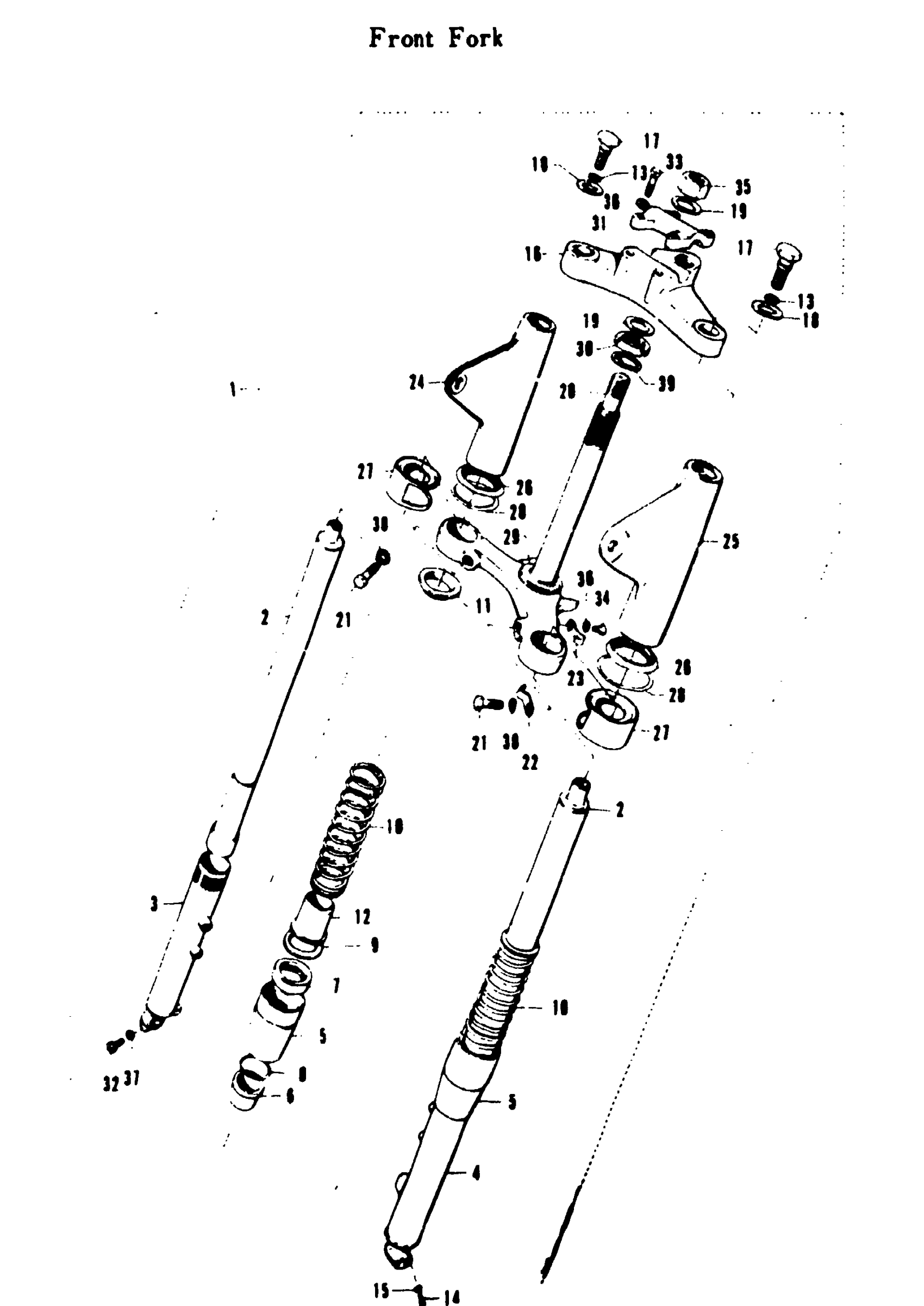

Suzuki T20 (1969) FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASS'Y | PRIMARY PAINTED

51100-11602

Unavailable

2

FORK INNER TUBE | TC250

51110-11010

Unavailable

3

FORK RIGHT OUTER TUBE | TC250; PRIMARY PAINTED

51130-11011

Unavailable

4

NO DESCRIPTION AVAILABLE | TC250; PRIMARY PAINTED This part replaces 51140-11011.

51140-11011-799

Unavailable

5

FORK OUTER TUBE NUT | TC250; CHROME-PLATED

51151-11010

Unavailable

6

FORK INNER TUBE GUIDE | TC250

51152-11010

Unavailable

7

OIL SEAL | TC250; I.D. =34(1.34), O.D. =46(1.81) W. =10(0.39) This part replaces 51153-11010.

51153-16511

Unavailable

8

OIL SEAL LOWER "O" RING | TC250; I.D. =39.3(1.55), D. =3(0.12)

51154-11010

Unavailable

9

FORK SPRING SEAT | TC250; I.D. =35(1.38), O.D. =48(1.89) T. =1.6(0.06)

51158-11010

Unavailable

10

FRONT FORK SPRING | I.D. =39(1.54), O.D. =48(1.89) L. =178.5(7.03), CHROME-PLATED

51171-11600

Unavailable

11

FORK SPRING SPACER | TC250

51172-11010

Unavailable

12

FORK DUST SEAL | TC250

51173-11010

Unavailable

13

FORK FITTING BOLT "O" RING | TC250; I.D. =8.8(0.35), D. =2.4(0.09)

51181-11010

Unavailable

14

FORK OIL DRAIN PLUG | TC250; ISO

51182-03621

Unavailable

14

FORK OIL DRAIN PLUG | TC250

51182-03620

Unavailable

15

FORK OIL DRAIN PLUG GASKET | TC250; I.D.=4.2(0.17) O.D.=7.3(0.29) T. =1.5(0.06)

51183-03010

$2.07

16

STEERING STERN HEAD | TC250

51311-11011

Unavailable

17

FORK FITTING BOLT | TC250; CHROME-PLATED

51351-11011

Unavailable

18

FORK FITTING WASHER | TC250; I.D. =14(0.55), O.D. =30(1.18) T. =2.3(0.09)

51354-11010

Unavailable

19

STEERING STEM WASHER | TC250; I.D. =18(0.71), O.D. =30(1.18) T. =2.3(0.09)

51356-11010

Unavailable

20

STEERING STEM | TC250; INCLUDES REF. NO. 29

51410-11010

Unavailable

21

FORK IRNER TUBE FITTING BOLT | TC250

51451-08010

Unavailable

22

SPEEDOMETER CABLE CLIP | TC250

51452-08010

Unavailable

23

BRAKE CABLE CLIP | TC250

51453-03010

$5.50

24

NO DESCRIPTION AVAILABLE | TC250; PRIMARY PAINTED This part replaces 51530-11012.

51500-18840-126

Unavailable

25

NO DESCRIPTION AVAILABLE | TC250; PRIMARY PAINTED This part replaces 51540-11012.

51500-18840-126

Unavailable

26

HEAD LAMP BRACKET SEAT | TC250

51551-11010

Unavailable

27

HEAD LAMP BRACKET BEND | TC250

51552-11010

Unavailable

28

HEAD LAMP BRACKET CUSHION | TC250; I.D. =34(1.34), O.D. =40(1.57) T. =4.8(0.19)

51553-11010

Unavailable

29

STEERING OUTER RACE | TC250

51621-08000

Unavailable

30

STEERING STEM LOCK NUT | TC250

51632-01000

Unavailable

31

HANDLEBER CLAMP | TC250

56211-11010

Unavailable

32

SMALL HEXAGON BOLT

01121-08258

Unavailable

33

BOLT 6X25 This part replaces 01211-06257.

01204-06257

$2.07

34

CROSS HEAD SCREW

02111-06108

Unavailable

35

NUT This part replaces 08312-11188.

08310-0018A

$3.30

36

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

37

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

38

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

39

STEERING STEM LOCK WASHER | TC250; I.D. =26(1.02), O.D. =34(1.34) T. =2.3(0.09)

09166-26001

$2.07
