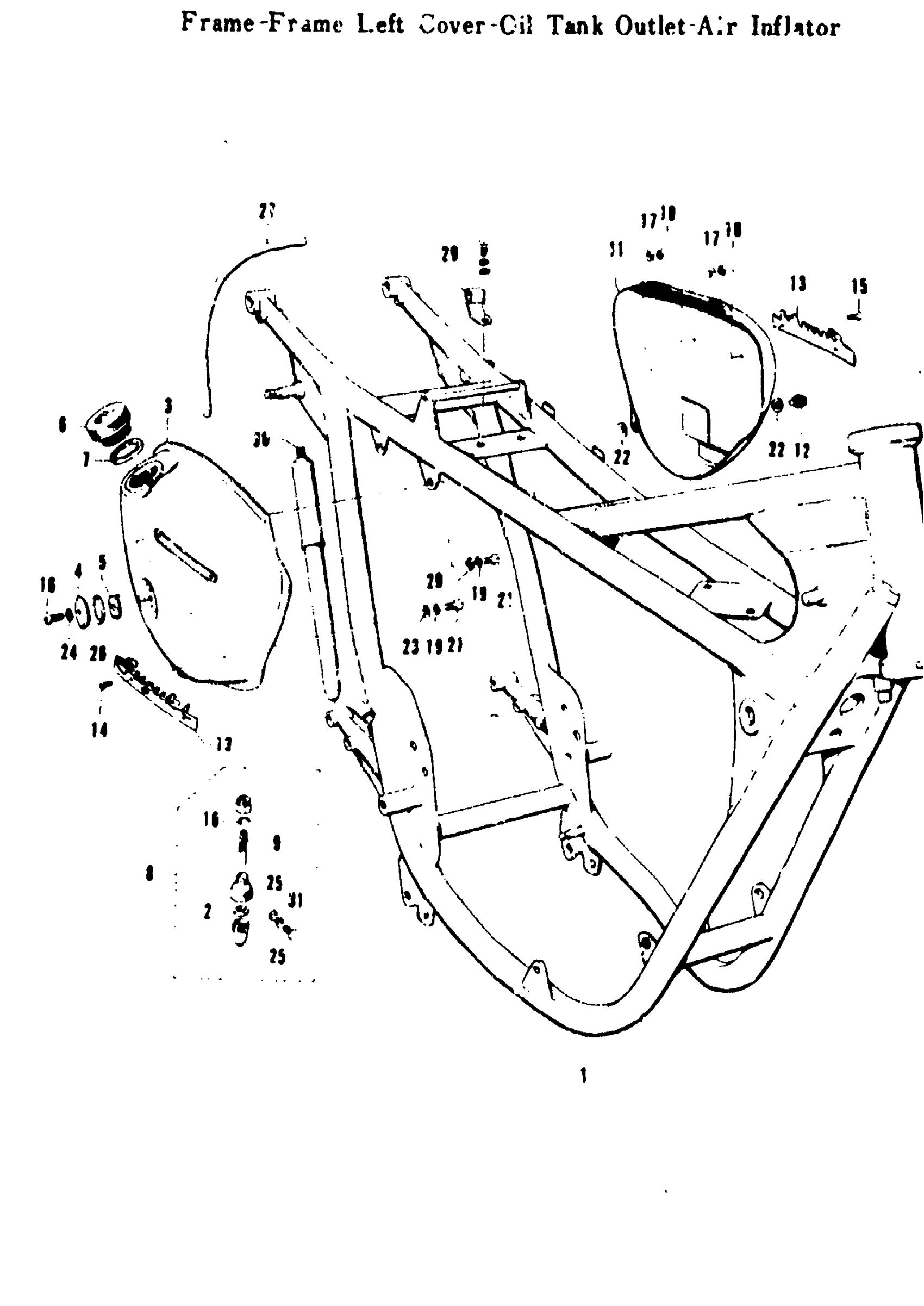

Suzuki T20 (1969) FRAME - FRAME LEFT COVER - OIL TANK - OIL TANK OUTLET - AIR INFLATOR Diagram

#

Description
Price

1

FRAME | COLOR BLACK

41100-11002-019

Unavailable

2

STRAINER CAP GASKET | TC250; I.D.=13.5(0.53).O.D.=19(0.75) T=1.5(0.06)

44346-02030

Unavailable

3

OIL TANK | TC250; PRIMARY PAINTED

44610-11004

Unavailable

4

OIL LEVEL INSPECTION LENS | TC250

44641-11000

Unavailable

5

LENS SET, OIL INSPECTION | TC250 This part replaces 44642-11000.

44640-11843

Unavailable

6

OIL TANK CAP | TC250; CHROME-PLATED

44651-11040

$15.05

6

OIL TANK CAP | TC250; UP TO F.NO T20-14968

44650-11031

Unavailable

7

GASKET,OIL TANK | TC250; I.D.=35(1.38).O.D.=46(1.81)T.=3.5(0.14) This part replaces 44661-11000.

44661-11001

$3.66

8

OIL TANK OUTLER ASS'Y | TC250

44700-11827

Unavailable

9

OIL TANK OUTLET STRAINER NET | TC250

44720-11030

$5.38

10

OIL TANK OUTLET GASKET | TC250; I.D.=8.2(0.32).O.D.=13.5(0.53) T=2.5(0.10)

44733-11030

$2.28

11

FRAME LEFT COVER | PRIMARY PAINTED

47210-11000

Unavailable

12

FRAME COVER NOB | TC250

47230-11000

Unavailable

13

FRAME COVER EMBLEM | TC250

68131-11001

Unavailable

14

SCREW | ISO This part replaces 02111-03048.

02112-03047

$2.15

14

CROSS HEAD SCREW

02111-03041

Unavailable

15

CROSS HEAD SCREW | ISO

02111-03088

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 02111-03081.

02111-03082

Unavailable

16

CROSS HEAD SCREW | ISO

02111-05167

Unavailable

16

CROSS HEAD SCREW

02111-05162

Unavailable

17

NUT | ISO This part replaces 08311-11038.

08310-0003B

$2.83

17

HEXAGON NUT

08311-11031

Unavailable

18

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

WASHER This part replaces 08322-21068.

08322-01067

$2.13

21

BOLT | TC250; 6SCREW.I.=14(0.55) This part replaces 09100-06026.

09100-06067

Unavailable

22

FRAME COVER KNOB STOPPER | TC250

09152-06001

$1.75

23

OIL TANK LOWER WASHER | TC250

09180-06007

Unavailable

24

OIL LEVEL INSPECTION LENS GASK | TC250; I.D.=5.0(0.20).O.D.=9.5(0.37TC250; I.D.=5.0(0.20).O.D.=9.5(0.37) T.=1.0(0.04)

09168-05001

$1.98

25

GASKET | TC250; I.D.=6.2(0.24),O.D.=1.2(0.47) T.=1.5(0.06) This part replaces 09168-06002.

09168-06004

$1.49

26

OIL LEVEL INSPECTION LENS "O" | TC250; I.D.=23(0.91), D.=3.0(0.12)TC250; I.D.=23(0.91), D.=3.0(0.12)

09280-23001

Unavailable

27

HOSE (5X8X2000) | TC250 This part replaces 09344-05005.

09351-50803-00B

$9.10

28

OIL TANK OUTLET UNION BOLT | TC250

09360-06003

$3.76

29

OIL BREATHER HOSE CLIP | TC250

09403-00004

Unavailable

30

AIR INFLATOR ASS'Y | TC250; OPT.

09821-00002

Unavailable
