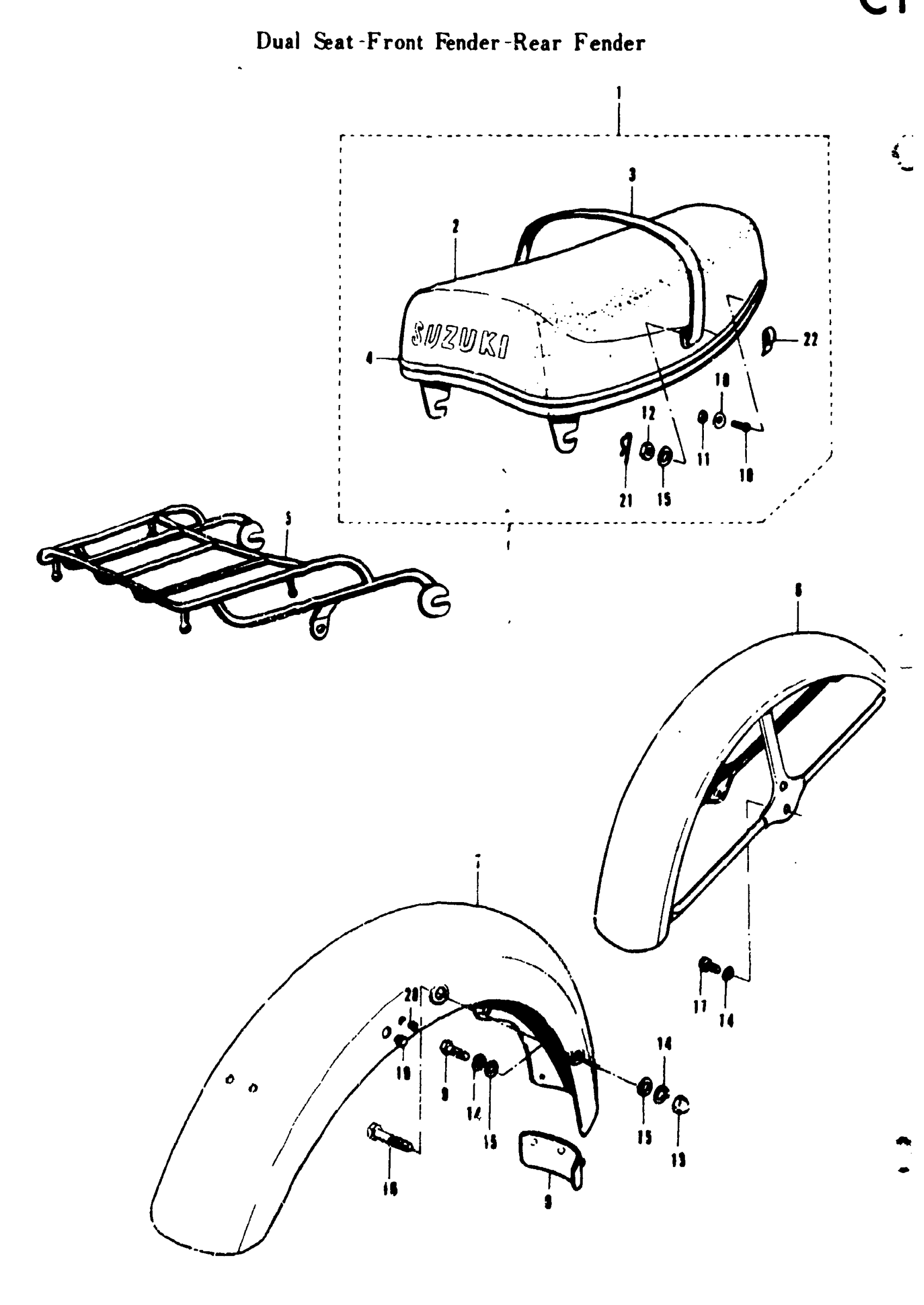

Suzuki T20 (1969) DUAL SEAT - FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

DUAL SEAT ASS'Y

45100-11601

Unavailable

2

DUAL SEAT LEATHER

45161-11000

Unavailable

3

DUAL SEAT PASSENGER STRAP ASS'

45180-11600

Unavailable

4

DUAL SEAT RIM

45191-11001

Unavailable

4

DUAL SEAT RIM | UP TO E. NO 120-52424

45191-11000

Unavailable

5

CARRIER | TC250

46310-11001

Unavailable

6

FRONT FENDER

53110-11710

Unavailable

7

REAR FENDER | COLOR SILVER METAILK

63110-11601

Unavailable

8

REAR FENDER MUD GUARD

63411-11000

Unavailable

9

SMALL HEXAGON BOLT

01121-08128

Unavailable

10

NO DESCRIPTION AVAILABLE | ISO This part replaces 02141-03208.

02142-03208

Unavailable

10

CROSS HEAD SCREW

02141-03201

Unavailable

11

NUT | ISO This part replaces 08311-11038.

08310-0003B

$2.83

11

HEXAGON NUT

08311-11031

Unavailable

12

NUT This part replaces 08311-31088.

08310-00087

$2.13

13

NUT This part replaces 08313-11087.

08313-10087

$2.28

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

NO DESCRIPTION AVAILABLE | O D =8(0.31), I =47(1.85) This part replaces 09100-08002.

09100-08290

Unavailable

17

BOLT This part replaces 09100-08055.

01500-0812A

$2.28

18

DUAL SEAT RIM WASHER | I D =36(0.14), O D =14(0.55) T =0.8(0.03)

09160-03001

Unavailable

19

REAR FENDER HOLE CAP NO. 2 | FROM E. NO T20-49661

09250-05001

Unavailable

20

REAR FENDER HOLE CAP NO. 1 | O.D =16(0.63) FROM F NO T20-49661

09321-10004

Unavailable

21

DUAL SEAT PASSENGER STRAP CLIP

09385-06001

$3.10

22

DUAL SEAT LETHER CLIP

09410-00004

Unavailable
