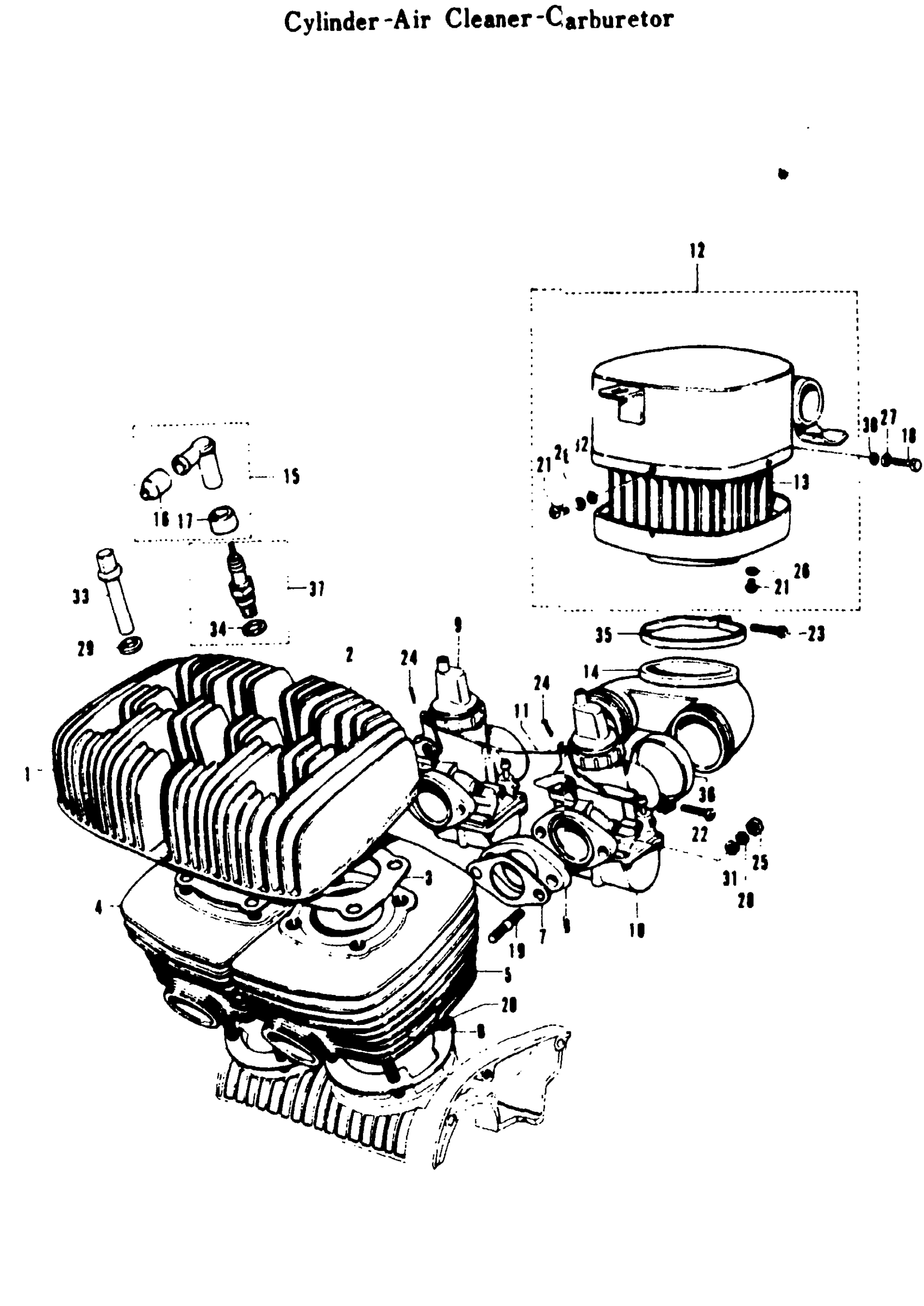

Suzuki T20 (1969) CYLINDER - AIR CLEANER - CARBURETOR Diagram

#

Description
Price

1

RIGHT CYLINDER HEAD | TC250

11111-11600

Unavailable

2

LEFT CYLINDER HEAD | TC250

11121-11600

Unavailable

3

CYLINDER HEAD GASKET | TC250

11141-11000

Unavailable

3

CYLINDER HEAD GASKET | TC250; FOR 0.5 AND 1.0 OVER SIZES

11141-11700

$6.55

4

RIGHT CYLINDER | TC250

11210-11600

Unavailable

5

LEFT CYLINDER | TC250

11220-11600

Unavailable

6

NO DESCRIPTION AVAILABLE | TC250 This part replaces 11241-11001.

11241-11002

Unavailable

7

GASKET,CARBURET | TC250 This part replaces 13125-11000.

13125-11000-H17

$2.52

8

CARBURETOR INSULATOR GASKET | TC250

13129-11000

Unavailable

9

RIGHT CARBURETOR ASS'Y | TC250

13201-11600

Unavailable

10

LEFT CARBURETOR ASS'Y | TC250

13202-11600

Unavailable

11

PLUNGER LEVER LINK | TC250

13425-11010

Unavailable

12

AIR CLEANER ASS'Y | TC250

13700-11600

Unavailable

13

AIR CLEANER ELEMENT | TC250

13780-11601

Unavailable

14

AIR CLEANER TUBE | TC250

13881-11000

Unavailable

15

SPARK PLUG CAP ASS'Y | TC250

33501-10801

Unavailable

16

SPARK PLUG CAP SEAL | TC250

33541-11000

Unavailable

17

SPARK PLUG CAP HIGH TENSOON CO | TC250TC250

33542-51000

Unavailable

18

HEXAGON BOLT

01111-06128

Unavailable

19

BOLT,STUD This part replaces 01411-08308.

01411-0830A

$2.28

20

STUD BOLT

01421-08858

Unavailable

21

CROSS HEAD SCREW | ISO

02111-04108

Unavailable

21

NO DESCRIPTION AVAILABLE This part replaces 02111-04101.

02111-04102

Unavailable

22

SCREW | ISO This part replaces 02111-04168.

02112-0416A

$1.49

22

CROSS HEAD SCREW

02111-04161

Unavailable

23

SCREW | ISO This part replaces 02111-04208.

02112-0420A

$1.49

23

CROSS HEAD SCREW

02111-04201

Unavailable

24

COTTER PIN

04111-12088

Unavailable

25

NUT This part replaces 08312-11088.

08310-00087

$2.13

26

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

27

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

28

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

29

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

30

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

31

WASHER This part replaces 08322-11088.

08322-01087

$2.13

32

WASHER This part replaces 08322-21048.

08322-01047

$1.86

33

CYLINDER HEAD NUT | TC250

09159-08004

Unavailable

34

SPARK PLUG GASKET | TC250

09168-14004

$1.83

35

AIR CLEANER TUBE REAR CLAMP | TC250

09402-00108

Unavailable

36

AIR CLEANER TUBE FRONT CLAMP | TC250

09402-00115

Unavailable

37

SPARK PLUG | TC250; NGK.B-77HC This part replaces 09482-00003.

09482-00082

$2.98

37

SPARK PLUG ASS'Y | TC250; OPT.NGK.B7H

09482-00002

Unavailable

37

SPARK PLUG ASS'Y | TC250; OPT.NGK.B.9H

09482-00016

Unavailable
