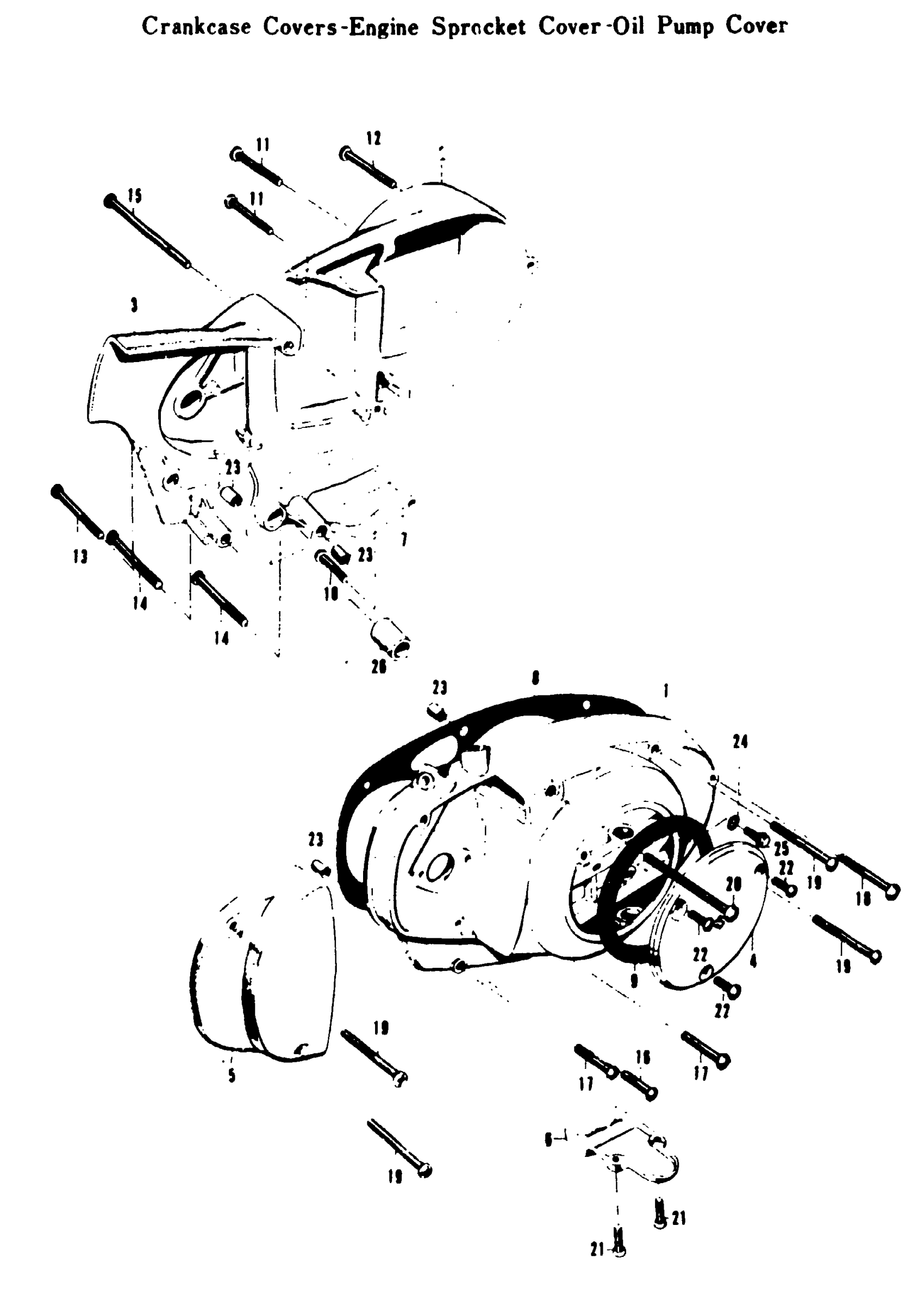

Suzuki T20 (1969) CRANKCASE COVERS - ENGINE SPROCKET COVER - OIL PUMP COVER Diagram

#

Description
Price

1

CRANKCASE RIGHT COVER | TC250; INCLUDES 09304.10003(3 PCS.)

11342-11815

Unavailable

2

CRANKCASE LEFT COVER | TC250

11351-11100

Unavailable

3

ENGINE SPROCKET COVER | TC250

11361-11100

Unavailable

4

CLUTCH RELEASE ADJUSTING CAP | TC250

11387-11000

Unavailable

5

OIL PUMP COVER | TC250

11411-11100

Unavailable

6

CLUTCH RELEASE ARM LOWER COVER | TC250

11451-11000

Unavailable

7

GEAR SHIFTING SHAFT HOLDER | TC250

11461-11000

Unavailable

8

CRANKCASE RIGHT COVER GASKET | TC250

11482-11000

Unavailable

9

CLUTCH RELEASE ADJUSTING CAP G | TC250; I.D.=78(3.07). O.D.=110(4.33TC250; I.D.=78(3.07). O.D.=110(4.33) T.=0.45(0.02)

11495-11000

Unavailable

10

CROSS HEAD SCREW

02111-06308

Unavailable

11

CROSS HEAD SCREW

02111-06358

Unavailable

12

CROSS HEAD SCREW

02111-06408

Unavailable

13

CROSS HEAD SCREW

02111-06458

Unavailable

14

CROSS HEAD SCREW

02111-06508

Unavailable

15

CROSS HEAD SCREW

02111-06808

Unavailable

16

SCREW This part replaces 02112-06208.

02112-06207

$1.78

17

SCREW This part replaces 02112-06308.

02112-06307

$1.97

18

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

19

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

20

SCREW This part replaces 02112-06708.

02112-06707

$2.53

21

CROSS HEAD SCREW

02121-06128

Unavailable

22

SCREW This part replaces 02131-06128.

02122-06127

$1.84

23

DOWEL PIN

04211-09129

$1.65

24

OIL LEVEL SCREW GASKET | TC250; I.D.=6.2(0.24). O.D.=12(0.43) T.=1.0(0.04)

09168-06001

$1.49

25

OIL LEVEL SCREW | TC250; O.D.=6 SCREW

09247-06001

Unavailable

26

ENGINE SPROCKET COVER CHAIN BU | TC250; I.D.=16.5(0.65). O.D.=20.5(0TC250; I.D.=16.5(0.65). O.D.=20.5(0.81) W.=20(0.79)

09320-16001

Unavailable
