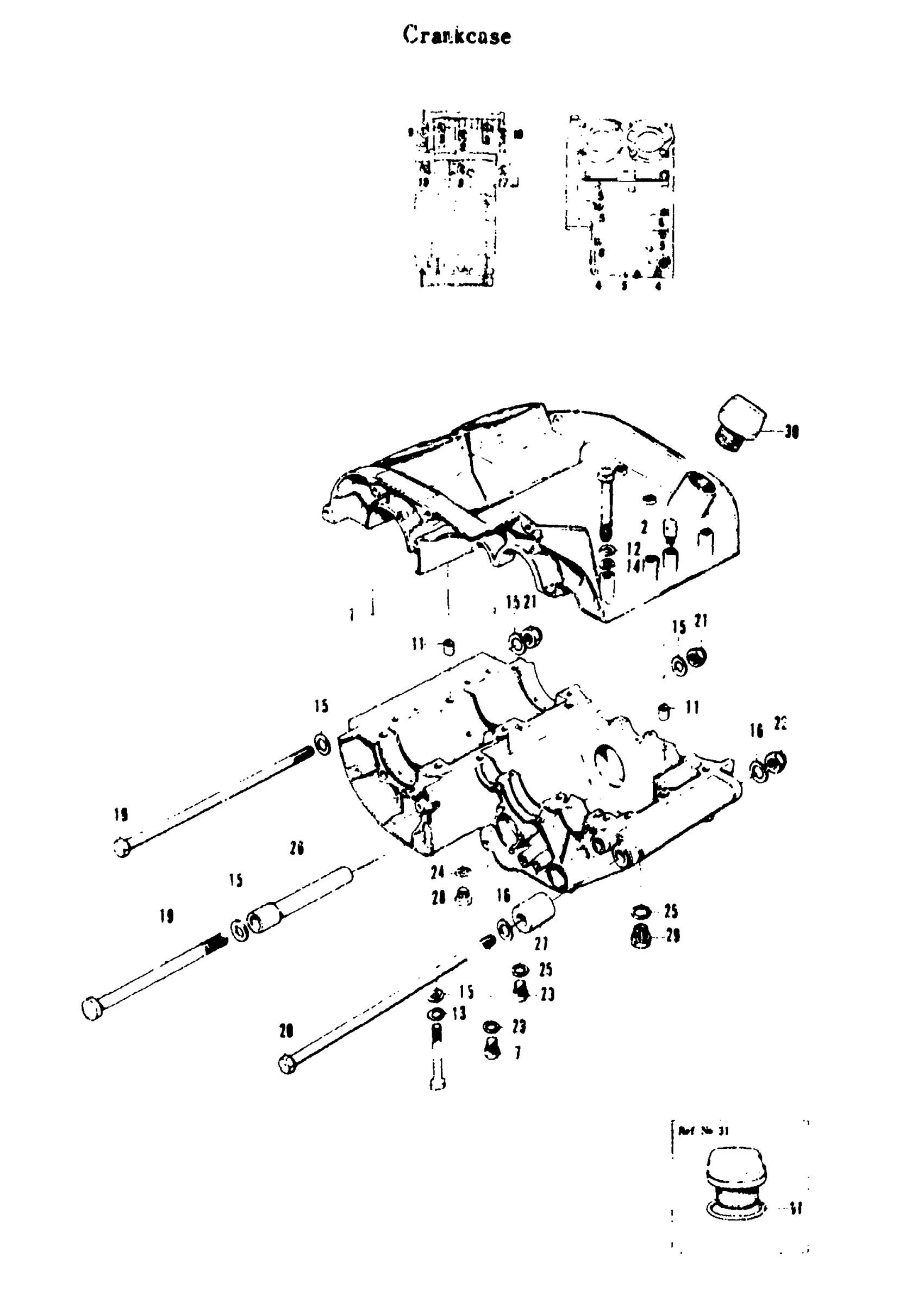

Suzuki T20 (1969) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASS'Y | TC250; INCLUDES REF, NOS. 3 - 6. B15,17,18

11300-11813

Unavailable

2

PLUG, BREATHER | TC250 This part replaces 24821-09000.

24821-09001

$9.33

3

BOLT This part replaces 01112-06408.

01500-0640B

$2.62

4

BOLT This part replaces 01112-06508.

01500-06507

$3.03

5

BOLT This part replaces 01112-06558.

01500-0655B

$2.92

6

BOLT (6X60) This part replaces 01112-06608.

09103-06064

$2.12

7

SMALL HEXAGON BOLT

01121-08128

Unavailable

8

BOLT This part replaces 01122-08508.

01500-08507

$3.05

9

BOLT This part replaces 01122-08608.

01500-0860B

$3.49

10

BOLT This part replaces 01122-08858.

01500-0885B

$4.25

11

DOWEL PIN

04211-11129

$1.76

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

WASHER This part replaces 08322-11108.

08322-01107

$2.15

17

CRANKCASE BOLT (A) | TC250

09100-08023

Unavailable

18

CRANKCASE BOLT (B) | TC250

09100-08026

Unavailable

19

ENGINE MOUNTING BOLT | TC250

09100-08043

Unavailable

20

ENGINE REAR MOUNTING BOLT | TC250

09100-10034

Unavailable

21

NUT | TC250 This part replaces 09159-08001.

09159-08020

$1.78

22

SAFETY LOCK NUT | TC250

09159-10001

Unavailable

23

GASKET (8.2X14X1) | TC250; I.D.*8(0.31). O.D.*14(0.55)T.*1.0(0.04) This part replaces 09168-08003.

09168-08016

$1.65

24

CRANK DRAIN PLUG GASKET | TC250

09168-10002

$2.13

25

OIL DRAIN PLUG GASKET | TC250

09168-14004

$1.83

26

ENGINE CENTER MOUNTING BOLT SP | TC250; I.D.=8.7(0.34). O.D.=16(0.63TC250; I.D.=8.7(0.34). O.D.=16(0.63) L.=168(6.61)

09180-08006

Unavailable

27

ENGINE REAR MOUNTING BOLT SPAC | TC250; I.D.=10.5(0.41). O.D.=22(0.8TC250; I.D.=10.5(0.41). O.D.=22(0.87) W.=30.4(1.20)

09180-10002

Unavailable

28

CRANK DRAIN PLUG | TC250

09247-10001

$2.20

29

PLUG (MAGNETO) | TC250

09247-14002

$5.24

30

PLUG SET | TC250 This part replaces 09259-20003.

09200-20811

$4.02

31

.O-RING (D:2.4,ID:21.8) | TC250; I.D=21.8(0.86). D.=2.4(0.09)

09280-22001

$1.65
