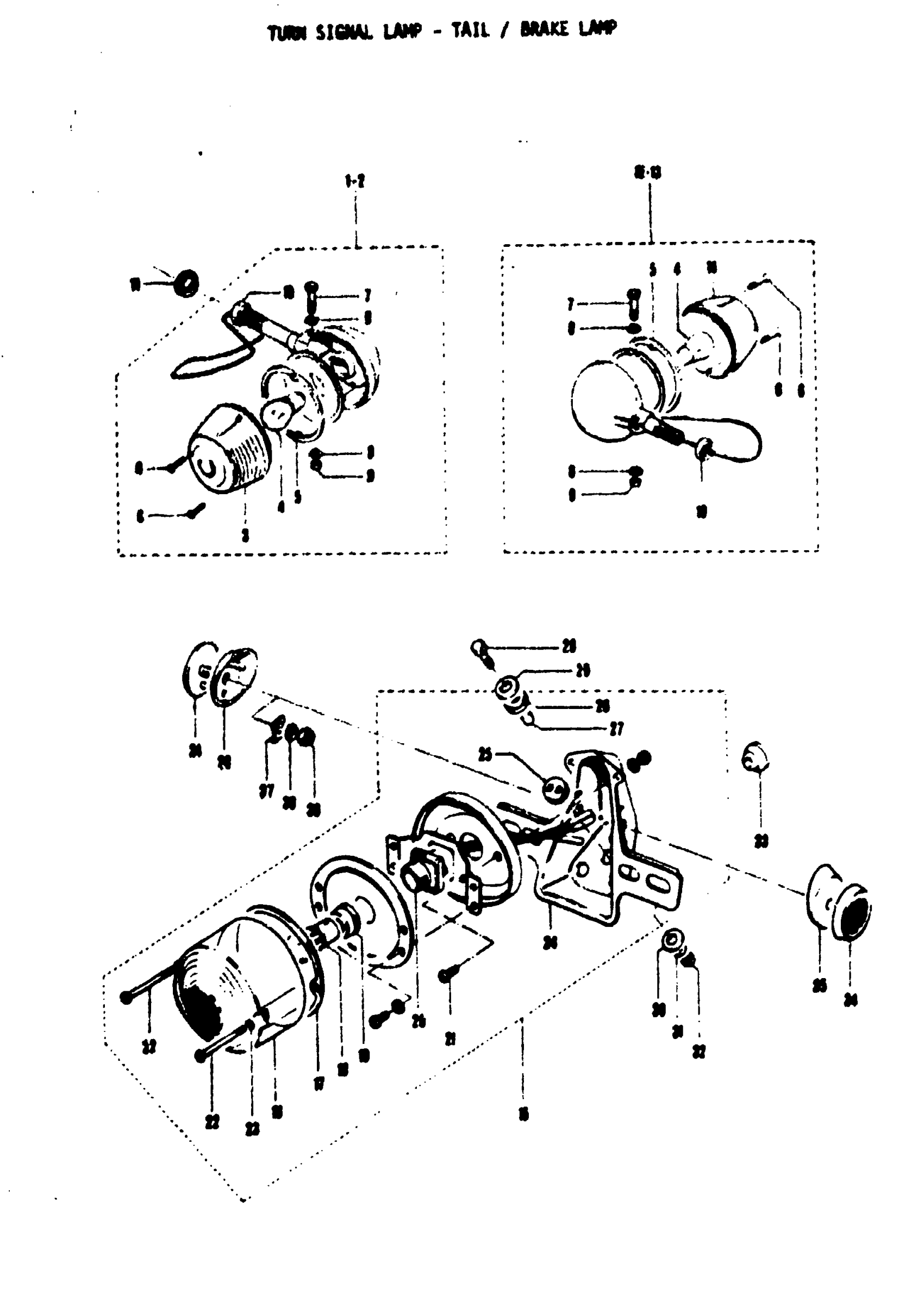

Suzuki T125II (1971) TURN SIGNAL LAMP - TAIL / BRAKE LAMP Diagram

#

Description
Price

1

RH FRONT TURN SIGNAL ASS'Y | 6V, 21CP

35601-20610

Unavailable

2

LH FRONT TURN SIGNAL ASS'Y | 6V, 21CP; Includes Item(s) 3 - 10

35602-20610

Unavailable

3

TURN SIGNAL LENS

35612-12611

$12.50

4

BULB | 6V, 21CP

09471-06011

Unavailable

5

TURN SIGNAL LENS GASKET

35613-03610

$13.34

6

LENS SCREW

35623-12611

Unavailable

7

HOUSING BOLT

35625-12610

Unavailable

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

.NUT This part replaces 08311-31068.

08310-00067

$2.13

10

NUT This part replaces 08312-31107.

08310-00107

$2.19

11

WASHER This part replaces 08322-21108.

08322-01107

$2.15

12

RH REAR TURN SIGNAL ASS'Y | T125; 6V, 21CP

35603-20610

Unavailable

12

RH REAR TURN SIGNAL ASS'Y | T125II,T125R; 6V, 21CP

35603-20690

Unavailable

13

LH REAR TURN SIGNAL ASS'Y | T1254; 6V, 31CP

35604-20610

Unavailable

13

LH REAR TURN SIGNAL ASS'Y | T125II,T125R; 6V, 21CP; Includes Item(s) 14 - 14

35604-20690

Unavailable

14

LENS | T125

35612-12611

$12.50

14

LENS | T125II,T125R

35652-22610

Unavailable

15

TAIL/BRAKE LAMP ASS'Y | T125; 6V, 21/3CP

35710-20601

Unavailable

15

TAIL/BRAKE LAMP ASS'Y | T125II,T125R; 6V, 21/3CP; Includes Item(s) 16 - 27

35710-20690

Unavailable

16

LENS, RR COMB L This part replaces 35712-15011.

35712-06112

$35.16

17

LENS GASKET

35713-15010

Unavailable

18

BULB | 6V, 21/3CP

09471-06009

$3.99

19

BULB CUSHION

35716-15010

Unavailable

20

SOCKET | T125 This part replaces 35718-05610.

35718-05611

Unavailable

21

CROSS HEAD SCREW

02111-05128

Unavailable

22

CROSS HEAD SCREW

02113-04558

Unavailable

23

LENS GASKET

35727-03010

Unavailable

24

BRACKET

35726-18600

Unavailable

25

CORD BUSHING

35728-18610

Unavailable

26

BRACKET CUSHION

35765-15010

Unavailable

27

SPACER This part replaces 35766-15010.

35766-37110

$5.28

28

BOLT This part replaces 01111-06208.

01500-06207

$2.28

29

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

30

WASHER This part replaces 08322-21068.

08322-01067

$2.13

31

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

32

.NUT This part replaces 08311-11068.

08310-00067

$2.13

33

TAIL/BRAKE LAMP CORD BUSHING

09308-04001

Unavailable

34

RETLER REFLECTOR

35970-18602

Unavailable

35

REFLECTOR RH SPACER

35995-18600

Unavailable

36

REFLECTOR LH SPACER

35996-18600

Unavailable

37

REFLECTOR WASHER

35997-18600

Unavailable

38

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

39

NUT This part replaces 08311-11058.

08310-00057

$1.84
