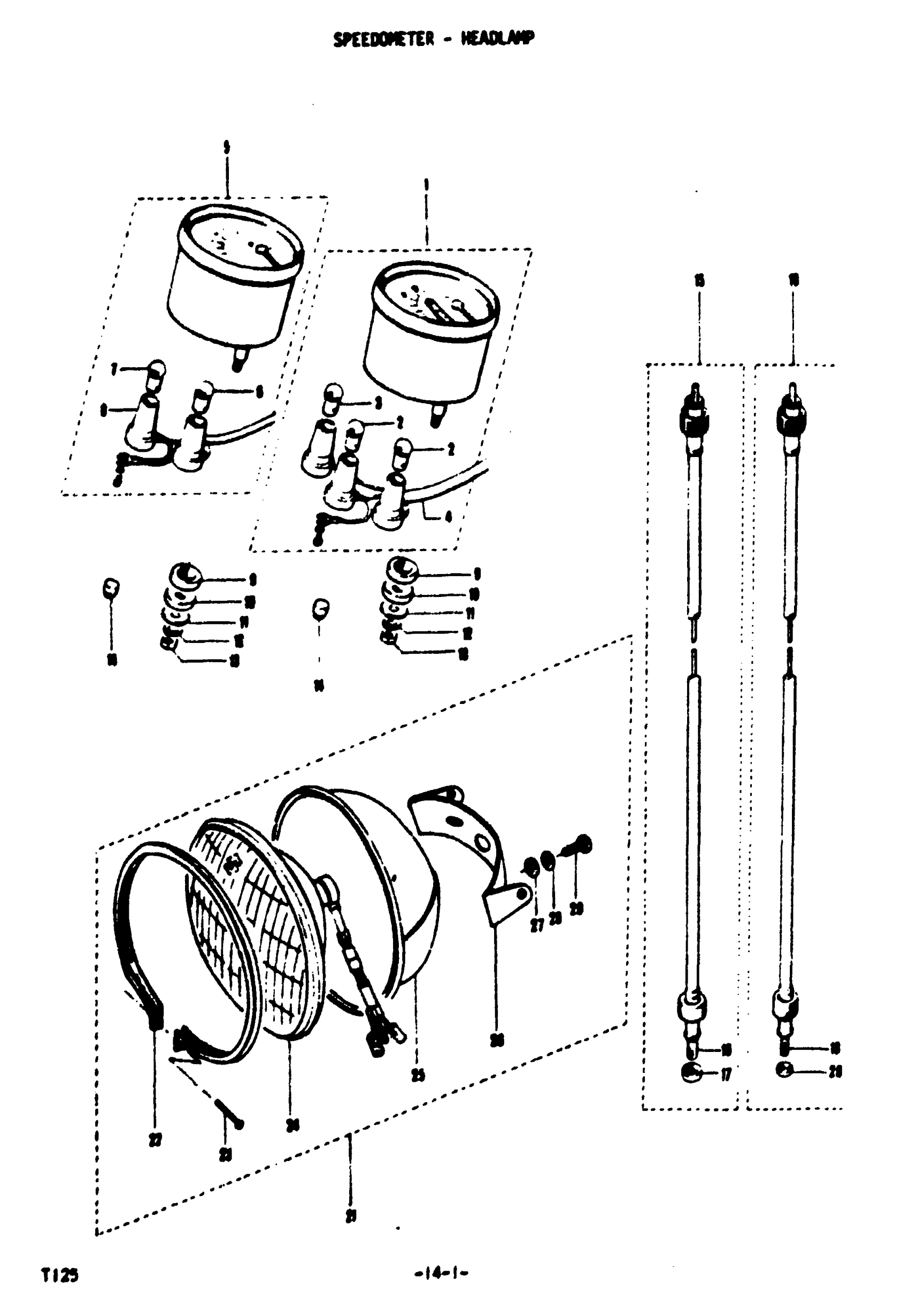

Suzuki T125II (1971) SPEEDOMETER - HEADLAMP Diagram

#

Description
Price

1

SPEEDOMETER ASS'Y | Includes Item(s) 2 - 4

34100-20610

Unavailable

2

BULB | 6V, 3W

09471-06002

$2.25

3

BULB | 6V, 1.5W

09471-06001

$2.18

4

LAMP SOCKET

34170-20010

Unavailable

5

TACHOMETER ASS'Y | Includes Item(s) 6 - 8

34200-20010

Unavailable

6

BULB | 6V, 3W

09471-06002

$2.25

7

BULB | 6V, 1.5W

09471-06001

$2.18

8

LAMP SOCKET

34170-20110

Unavailable

9

METER BUFFER

34955-20000

Unavailable

10

CUSHION This part replaces 09320-08004.

09320-08010

$1.99

11

WASHER,5.5X18X1 This part replaces 09160-05006.

09160-05006-XC0

Unavailable

12

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

13

NUT This part replaces 08311-11058.

08310-00057

$1.84

14

METER BUFFER

34957-05100

Unavailable

15

TACHOMETER CABLE ASS'Y | Includes Item(s) 16 - 17

34940-20130

Unavailable

16

INNER CABLE

34941-20130

Unavailable

17

OIL SEAL

34943-11030

$3.11

18

SPEEDOMETER CABLE ASS'Y | Includes Item(s) 19 - 20

34910-12330

Unavailable

19

INNER CABLE

34911-12330

Unavailable

20

OIL SEAL This part replaces 34928-08430.

34943-11030

$3.11

21

HEADLAMP ASS'Y | 6V, 26, 26A; Includes Item(s) 22 - 29

35100-20610

Unavailable

22

RIM

35127-20610

Unavailable

23

CROSS HEAD SCREW

02111-04108

Unavailable

24

UNIT

35121-20611

Unavailable

25

UNIT RIM

35131-20610

Unavailable

26

HEADLAMP ADJUSTING BRACKET

35151-20610

Unavailable

27

WASHER This part replaces 08322-21067.

08322-01067

$2.13

28

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

29

HEXAGON BOLT

01111-06107

Unavailable
