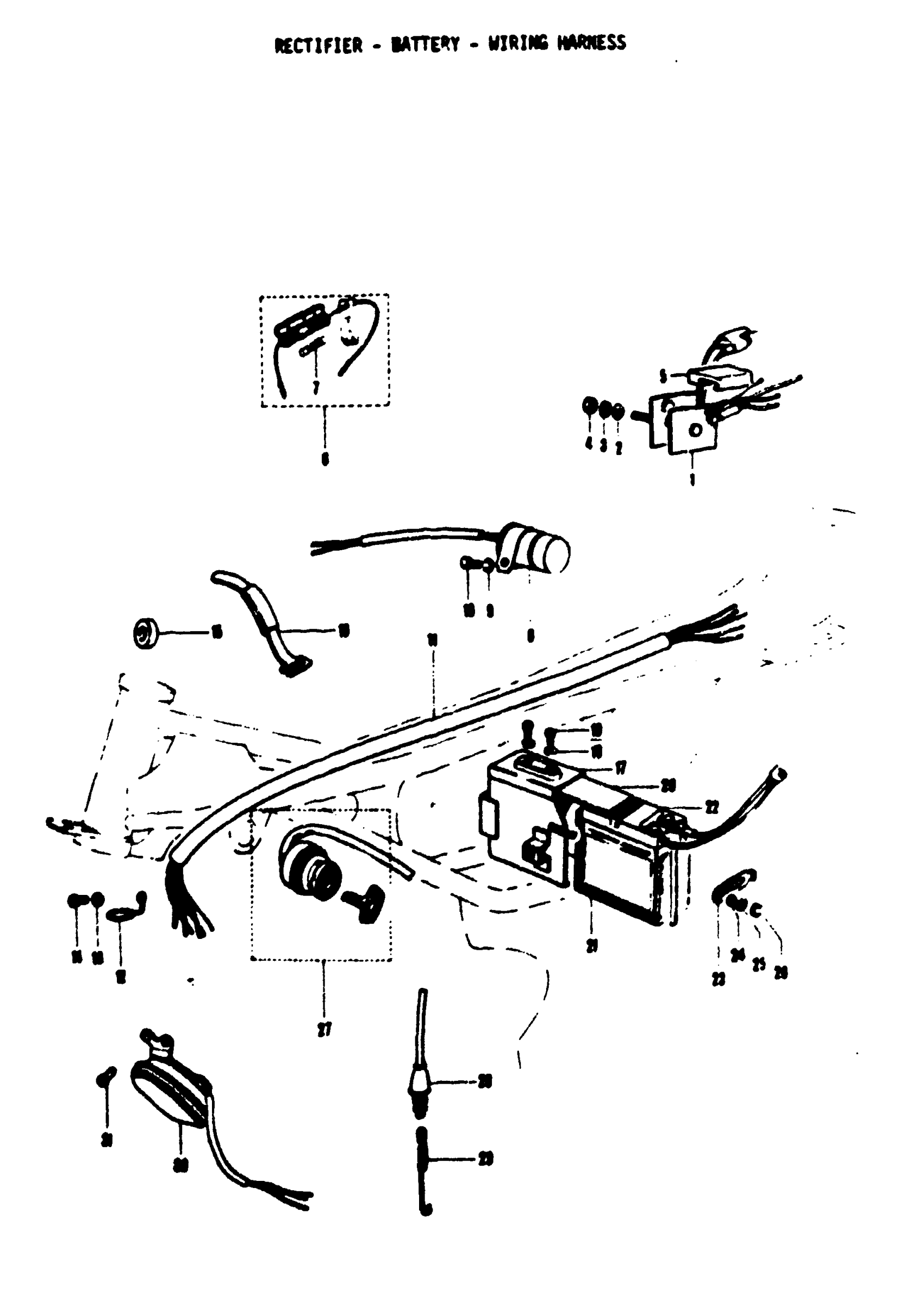

Suzuki T125II (1971) RECTIFIER - BATTERY - WIRING HARNESS Diagram

#

Description
Price

1

RECTIFIER ASSY This part replaces 32800-18520.

32800-18521

Unavailable

2

WASHER This part replaces 08322-21058.

08322-01057

$2.13

3

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

4

NUT This part replaces 08311-11058.

08310-00057

$1.84

5

GROMMET

32819-20100

Unavailable

6

FUSE CASE ASSY | Includes Item(s) 7 This part replaces 36740-15010.

36740-15011

$9.38

7

FUSE | 15A

09481-15001

$2.06

8

TURN SIGNAL RELAY

38610-20611

Unavailable

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

HEXAGON BOLT

01111-06128

Unavailable

11

WIRING HARNESS | T125

36610-20100

Unavailable

11

WIRING HARNESS | T125II,T125R

36610-20610

Unavailable

12

WIRING HARNESS CLIP

51455-20000

Unavailable

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

SCREW This part replaces 02111-06128.

02112-06127

$1.84

15

WIRING HARNESS TUBE

33881-58001

Unavailable

16

WIRING HARNESS CLAMP

09410-00006

Unavailable

17

BATTERY HOLDER

41540-20100

Unavailable

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

HEXAGON BOLT

01111-08128

Unavailable

20

BATTERY PROTECTOR NO. 2

33652-20100

Unavailable

21

BATTERY PROTECTOR NO. 1

33651-20100

Unavailable

22

BATTERY ASS'Y | 6V, 7.5AH

33610-20110

Unavailable

23

BATTERY PLATE

41561-20100

Unavailable

24

WASHER This part replaces 08322-21068.

08322-01067

$2.13

25

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

26

NUT, LICENSE HOLDER This part replaces 08313-11067.

08313-10067

$1.84

27

IGNITION SWITCH ASS'Y | T125

37110-20110

Unavailable

27

NO DESCRIPTION AVAILABLE | T125II,T125R This part replaces 37110-20610.

37110-20611

Unavailable

28

BRAKE LAMP SWITCH ASS'Y

37740-20010

$24.43

29

BRAKE LAMP SWITCH SPRING

09443-06001

Unavailable

30

HORN This part replaces 38500-20030.

38500-25332

Unavailable

31

SCREW This part replaces 02111-06128.

02112-06127

$1.84
