1971 Suzuki T125II Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1971 Suzuki T125II, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

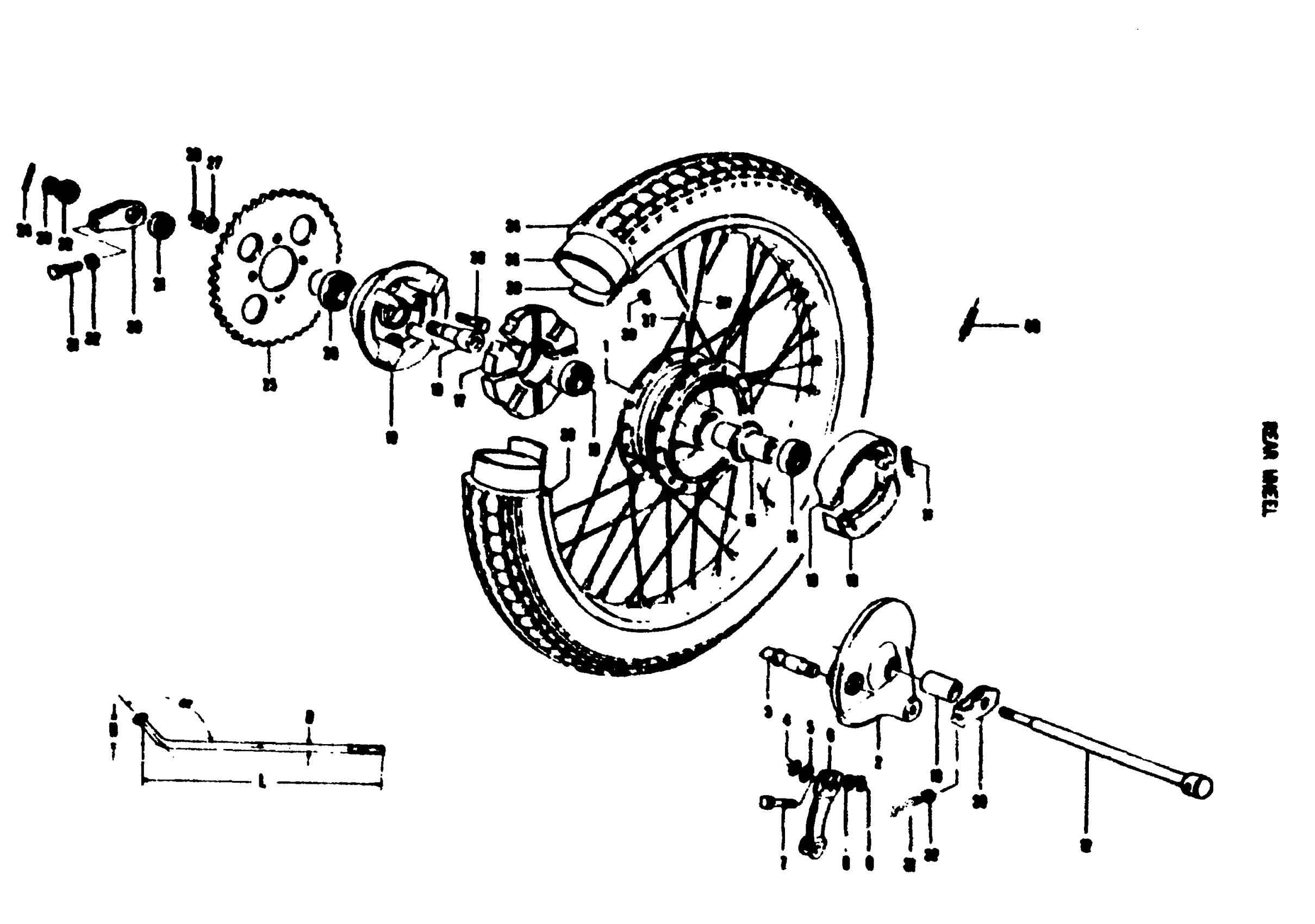

1971 Suzuki T125II Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

REAR HUB ASS'Y | Includes Item(s) 1 - 24

64100-20600

—
Out of stock

1

REAR HUB DRUM

64110-07001

—
Out of stock

2

REAR HUB PANEL

64210-07000

—
Out of stock

3

BRAKE CAM SHAFT

54441-20000

—
Out of stock

4

1

$3.25

In stock

5

REAR BRAKE CAM SHAFT DUST SEA

09160-12011

1
Out of stock

6

RR BRAKE LEVER This part replaces 64451-20000.

64451-20001

1
Out of stock

7

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

1
Out of stock

8

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

9

.NUT This part replaces 08311-11068.

08310-00067

1
Out of stock

10

SHOE SET, BRAKE This part replaces 54410-07001.

54401-07810

2
Out of stock

11

SPRING This part replaces 09443-07001.

09443-07025

2
Out of stock

12

REAR AXLE

64711-20611

—
Out of stock

13

SPACER, RH | 15.2x26x26 This part replaces 09180-15010.

09180-15038

1
Out of stock

14

1

$25.48

In stock

15

REAR HUB BEARING SPACER

64730-07001

—
Out of stock

16

BEARING, LH This part replaces 08143-62020.

08143-62027

1
Out of stock

17

SHOCK ABSORBER, HUB This part replaces 64651-07000.

64651-07001

1
Out of stock

18

SPROCKET MOUNTING DRUM SHAFT

64761-20100

1
Out of stock

19

REAR SPROCKET MOUNTING DRUM

64611-20100

—
Out of stock

20

BEARING This part replaces 08123-62040.

08123-6204B

1
Out of stock

21

SPROCKET MOUNTING DRUM SPACER

64770-20100

1
Out of stock

22

NUT This part replaces 09140-18001.

09140-18501

1
Out of stock

23

NUT This part replaces 08314-31128.

08314-3112A

1
Out of stock

24

PIN This part replaces 04111-30258.

04111-3030A

1
Out of stock

25

REAR SPROCKET | NT:40

64511-20710

1
Out of stock

25

REAR SPROCKET | NT:39, OPT

64511-20700

—
Out of stock

25

SPROCKET,REAR,N | NT:41, OPT This part replaces 64511-20100.

64511-12B11

1
Out of stock

25

REAR SPROCKET | NT:42, OPT.

64511-20720

—
Out of stock

25

SPROCKET,REAR,N | NT:43, OPT. This part replaces 64511-20730.

64511-20732

1
Out of stock

26

REAR SPROCKET BOLT | 8SCREW

09105-08004

4
Out of stock

27

4

$2.28

In stock

28

4

$1.93

In stock

29

ADJUSTER, CHAIN RH This part replaces 61410-20100.

61410-28001

1
Out of stock

30

LH CHAIN ADJUSTER

61420-20100

—
Out of stock

31

CHAIN ADJUSTER BOLT | 6SCREW

09104-06002

2
Out of stock

32

.NUT This part replaces 08311-11068.

08310-00067

2
Out of stock

33

RIM, WHEEL (1.60x18) | 1.60A-1B This part replaces 65311-20120.

55311-05300

1
Out of stock

34

REAR TIRE | 2.75-18

65100-10010

—
Out of stock

35

TUBE ASSY,WHEEL | 2.75-18 This part replaces 55200-11601.

55200-26F01

1
Out of stock

36

IN TUBE PROTECT This part replaces 55261-11010.

55261-26F10

1
Out of stock

37

INNER SPOKE | D:5.2, L:165, H:6 A:101

65321-20120

—
Out of stock

38

OUTER SPOKE | D:3.2, L:164, H:8.5 A:84

65322-20120

—
Out of stock

39

SPOKE NIPPLE

65325-03020

—
Out of stock
