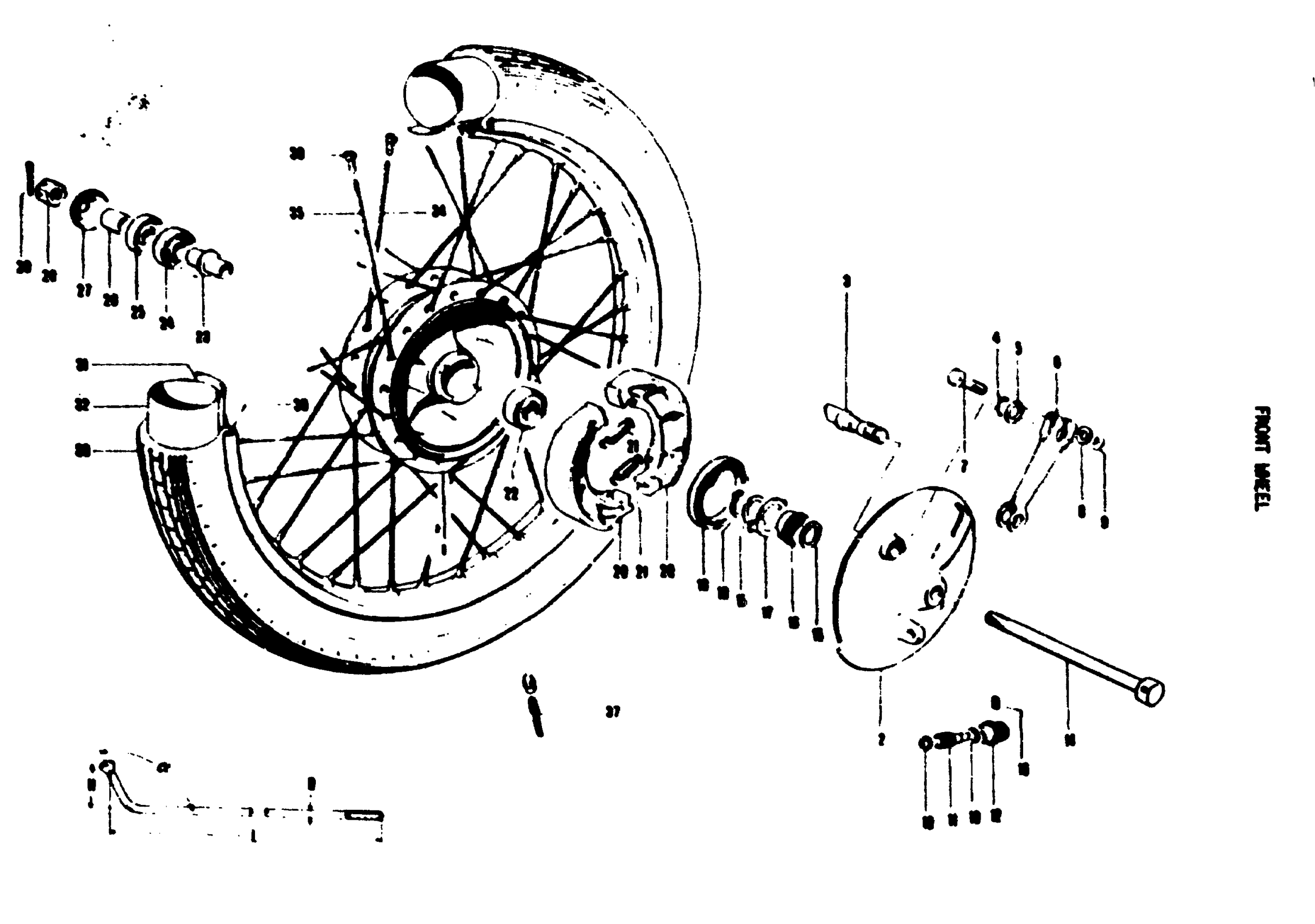

Suzuki T125II (1971) FRONT WHEEL Diagram

#

Description
Price

0

FRONT HUB ASS'Y | Includes Item(s) 1 - 29

54100-12610

Unavailable

1

FRONT HUB DRUM

54110-07000

Unavailable

2

PAKEL, FRONT HUB This part replaces 54210-12002.

54210-12003

Unavailable

3

BRAKE CAM SHAFT

54441-20000

Unavailable

4

BRAKE CAM SHAFT COST SEAL

09280-12001

$3.25

5

BRAKE CAM LEVER DUST SEAL WAS | 12.5x20x112.5x20x1

09160-12011

$1.48

6

FRONT BRAKE CAM LEVER

54451-03001

Unavailable

7

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

$2.00

8

WASHER This part replaces 08322-21068.

08322-01067

$1.86

9

.NUT This part replaces 08311-11068.

08310-00067

$1.83

10

WASHER,5.1X9X0. | 5.1x9x0.45.1x9x0.4 This part replaces 09160-05001.

09160-05001-A05

$2.17

11

NO DESCRIPTION AVAILABLE This part replaces 54621-03000.

54621-03001

Unavailable

12

SPEEDOMETER DRIVE GEAR OUTER

54632-01001

$14.45

13

SCREW,3X4.3 | 3SCREW3SCREW This part replaces 09134-03101.

09134-03101-A05

$1.95

14

NO DESCRIPTION AVAILABLE This part replaces 54711-07611.

54711-07612

Unavailable

15

SPEEDOMETER GEAR THRUST WASHE | 18.5x24x118.5x24x1

09160-18002

$2.58

16

NO DESCRIPTION AVAILABLE This part replaces 54611-07600.

54611-07601

Unavailable

17

SPEEDOMETER GEAR DRIVER

54661-07000

$5.10

18

CIRCLIP

08331-11189

Unavailable

19

FRONT HUB PANEL OIL SEAL | 47x62x7

09283-48001

Unavailable

20

SHOE SET, BRAKE This part replaces 54410-07001.

54401-07810

Unavailable

21

SPRING This part replaces 09443-07001.

09443-07025

$1.68

22

B1 12X37X12 BEA This part replaces 08143-63010.

08143-6301B

$17.58

23

FRONT HUB BEARING SPACER

54730-07000

Unavailable

24

FRONT HUB RH BEARING

08113-63010

$21.27

25

SEAL,OIL(17X38X This part replaces 09284-18001.

09284-18006

$5.55

26

FRONT AXLE LH SPACER | 12x18x19.4

09180-12007

Unavailable

27

FRONT HUB DUST SEAL COVER

54892-07000

Unavailable

28

NUT This part replaces 08314-31128.

08314-3112A

$2.42

29

PIN This part replaces 04111-30258.

04111-3030A

$1.37

30

FRONT WHEEL RIM | 1.40-18

55311-12120

Unavailable

31

IN TUBE PROTECT | 2.50-18 This part replaces 55261-14010.

55261-26F10

$4.12

32

INNER TUBE | 2.50-18

55200-14010

Unavailable

33

FRONT TIRE | 2.50-18

55100-14010

Unavailable

33

SPOKE SET FR | Includes Item(s) 34 - 36 This part replaces 55300-12825.

55320-12100

Unavailable

34

INNER SPOKE | D:2.9, L.165.3, H:5.4 A:102

55321-12120

Unavailable

35

OUTER SPOKE | D:2.9, L:165, H:8.2 A:85

55322-12120

Unavailable

36

SPOKE NIPPLE

55325-03020

Unavailable
