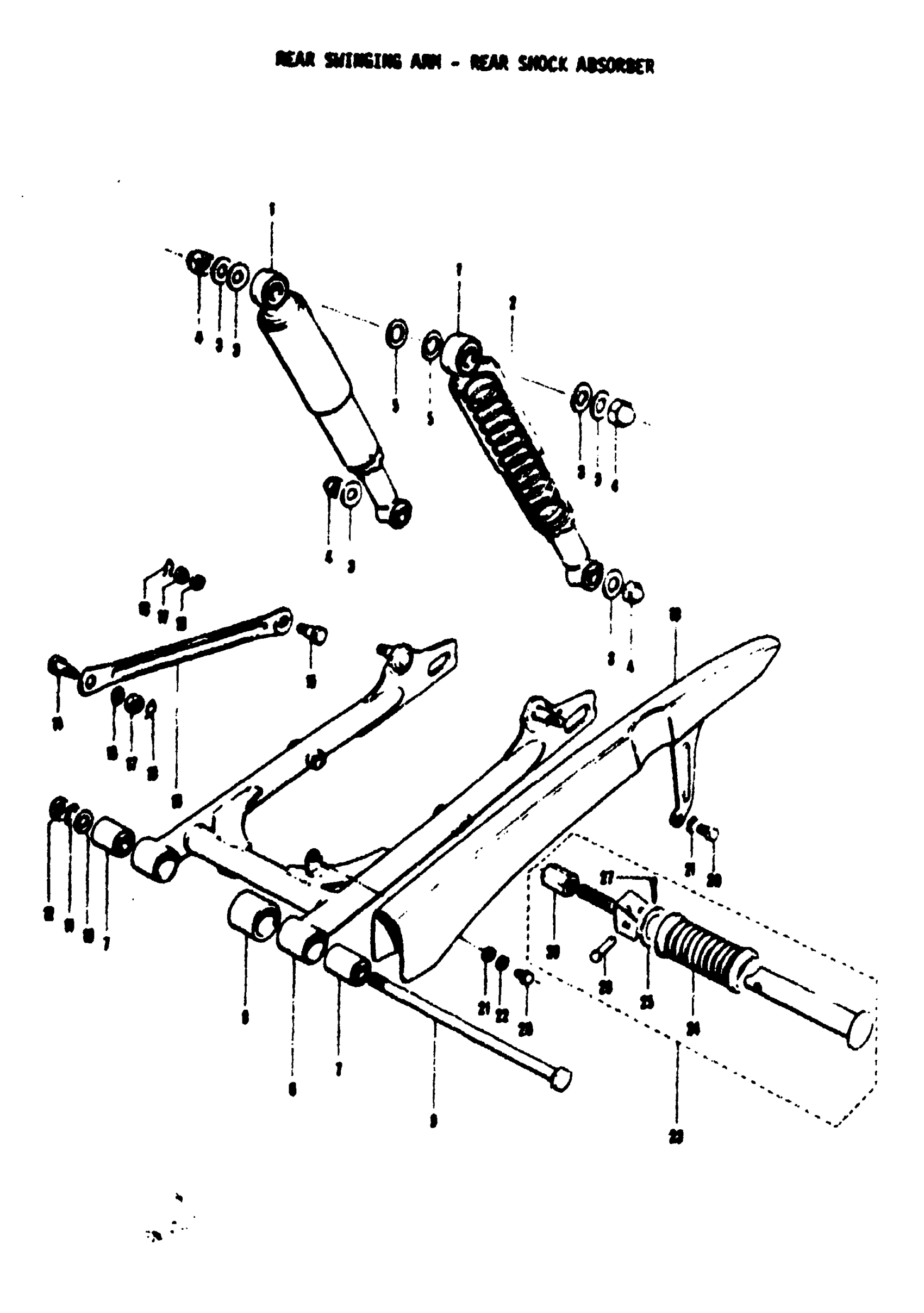

Suzuki T125II (1971) REAR SWINGING ARM - REAR SHOCK ABSORBER Diagram

#

Description
Price

1

REAR SNOCK ABSORBER ASS'Y | Includes Item(s) 2

62100-20010-019

Unavailable

2

SPRING

62211-12600

Unavailable

3

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.1 This part replaces 09160-10001.

09160-10093

$2.35

4

NUT | T125T125II,T125R This part replaces 08313-11107.

08313-10107

$2.50

5

WASHER This part replaces 08322-11128.

08322-01127

$1.84

6

REAR SWINGING ARM COMP | Includes Item(s) 7

61100-20809-019

Unavailable

7

BUSHING

09319-10009

$7.62

8

REAR SWINGING ARM PIVOT SHAFT

09320-20003

Unavailable

9

REAR SWINGING ARM PIVOT SHAFT

61211-20000

Unavailable

10

WASHER This part replaces 08322-21108.

08322-01107

$2.15

11

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

12

REAR SWINGING ARM PIVOT NUT

09140-10001

Unavailable

13

REAR TORQUE LINK

64310-20100

Unavailable

14

REAR TORQUE LINK BOLT

09119-08012

Unavailable

15

REAR TORQUE LINK BOLT | BSCREW

64331-01000

Unavailable

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

REAR TORQUE LINK NUT

09140-08008

$1.49

18

REAR TORQUE LINK CLIP

09384-06001

$1.49

19

CHAIN CASE COMP. | CHROME PLATE

61310-20600

Unavailable

20

HEXAGON BOLT

01111-06108

Unavailable

21

WASHER This part replaces 08322-21068.

08322-01067

$2.13

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

23

REAR FOOTREST ASSY | Includes Item(s) 24 - 28

43600-20000

Unavailable

24

RUBBER

43612-03001

$5.15

25

WASHER This part replaces 09160-19004.

09160-19024

$2.65

26

FOOTREST PIN

09200-06010

$1.72

27

COTTER PIN

04111-20188

Unavailable

28

FOOTREST NUT

09159-10003

Unavailable
