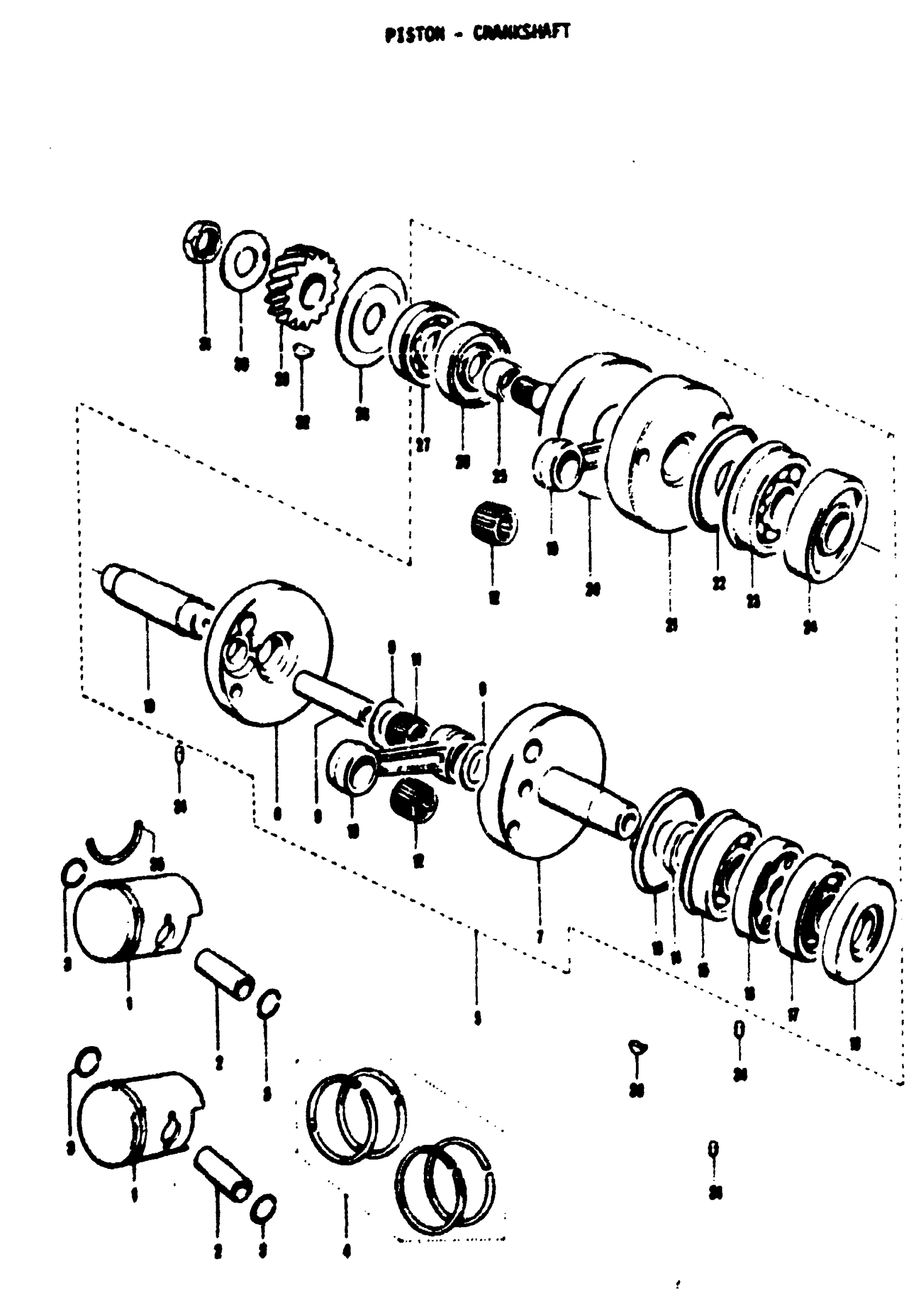

Suzuki T125II (1971) PISTON - CRANKSHAFT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 12110-20600.

12110-20601

Unavailable

1

NO DESCRIPTION AVAILABLE | OS:0.5 This part replaces 12110-20740.

12110-20601-050

Unavailable

1

NO DESCRIPTION AVAILABLE | OS:1.0 This part replaces 12110-20750.

12110-20601-100

Unavailable

2

PIN, PISTON | 8x12x34 This part replaces 12151-02000.

12151-04700

$7.22

3

SNAP RING

09381-12001

$1.49

4

NO DESCRIPTION AVAILABLE This part replaces 12140-14010.

12140-14011

Unavailable

4

NO DESCRIPTION AVAILABLE | OS:0.5 This part replaces 12140-14700.

12140-14011-050

Unavailable

4

NO DESCRIPTION AVAILABLE | OS:1.0 This part replaces 12140-14720.

12140-14011-100

Unavailable

5

CRANKSHAFT ASS'Y | Includes Item(s) 6 - 27

12002-20810

Unavailable

6

CENTER CRANK LH WHEEL

12251-20100

Unavailable

7

LH CRANKSHAFT

12261-20102

Unavailable

8

CRANK PIN | OD:17, L:44.5

12211-20100

Unavailable

9

WASHER | 17x29x1 This part replaces 09160-17005.

09160-17022

$3.23

10

ROD, CONNECTING This part replaces 12161-14000.

12161-14001

$85.28

11

BEARING (17X23X14) | 17x23x14 This part replaces 09263-17005.

09263-17022

$18.64

12

BEARING (12X16X16) | 12x16x15.8 This part replaces 09263-12003.

09263-12023

$10.19

13

OIL GUIDE PLATE

12511-14000

Unavailable

14

CRANKSHAFT SPACER | 20x28x4.5

09180-20017

$5.63

15

CRANKSHAFT BEARING | 20x52x17

09269-20005

Unavailable

16

CRANKSHAFT LH SPACER

12353-20000

Unavailable

17

RH CRANKSHAFT BEARING | 20x52x14

09262-20028

Unavailable

18

OIL SEAL, RH | 20x37x8 This part replaces 09283-20011.

09283-20034

$5.18

19

CENTER CRANKSHAFT

12231-20000

Unavailable

20

RH CRANKSHAFT

12221-20100

Unavailable

21

CENTER CRANK RH WHEEL

12241-20100

Unavailable

22

OIL GUIDE PLATE

12511-14000

Unavailable

23

CRANKSHAFT BEARING | 20x52x17

09269-20005

Unavailable

24

CENTER CRANKSHAFT OIL SEAL | 20x52x14

09289-20003

Unavailable

25

CRANKSHAFT RH SPACER | 20x26x9

09180-20021

$9.93

26

RH CRANKSHAFT OIL SEAL | 20x52x8

09283-26006

Unavailable

27

RH CRANKSHAFT BEARING | 20x52x14

09262-20028

Unavailable

28

OIL SEAL STOPPER PLATE

12521-20000

Unavailable

29

PRIMARY GEAR | NT: 16

21111-07000

Unavailable

30

PRIMARY GEAR WASHER

09166-14004

Unavailable

31

PRIMARY GEAR NUT

09140-14002

$3.40

32

KEY This part replaces 08341-31049.

09420-04008

$3.42

33

KEY

08341-31039

$1.89

34

ROLLER (4X13.8)

09261-04002

$1.72

35

RH CRANKSHAFT BEARING STOPPER

09390-52002

Unavailable
