1971 Suzuki T125II OIL Pump Diagram

← All diagrams

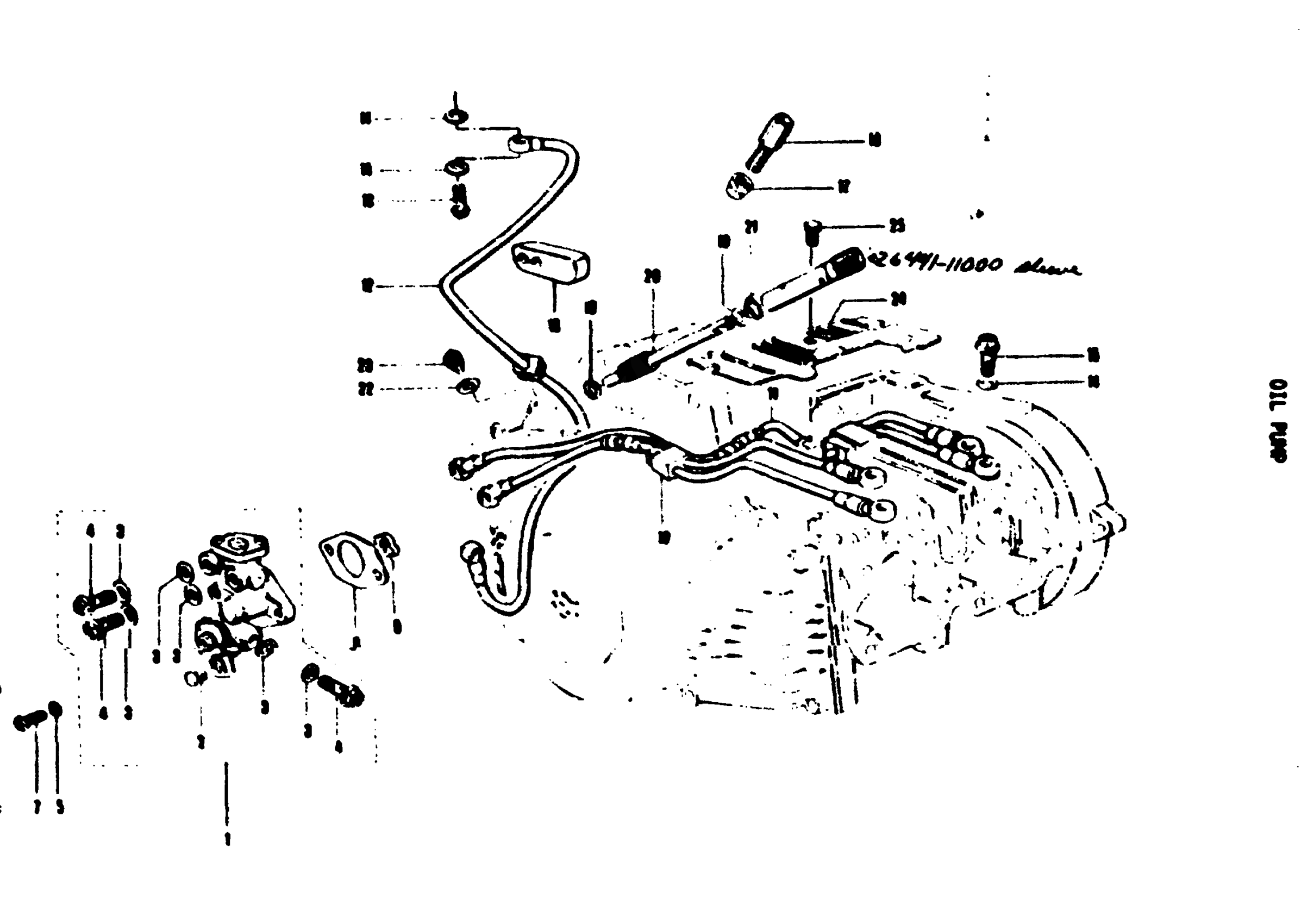

Find the part on the OIL Pump diagram for your 1971 Suzuki T125II, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1971 Suzuki T125II OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASS'Y | T125

16000-20821

—
Out of stock

1

OIL PUMP ASS'Y | E.NO.105020; Includes Item(s) 2 - 4

16001-20821

—
Out of stock

2

TERMINAL, CABLE This part replaces 16292-03110.

16292-03112

1
Out of stock

3

GASKET This part replaces 09168-06002.

09168-06004

6
Out of stock

4

UNION BOLT | 6 SCREW, L:16

09360-06003

3
Out of stock

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

6

OIL PUMP SCREW

09125-05109

1
Out of stock

7

OIL PUMP SCREW

09125-05102

1
Out of stock

8

GASKET, OIL PUMP This part replaces 16731-03100.

16731-03101

1
Out of stock

9

PIECE, DRIVE This part replaces 16391-05030.

16391-05031

1
Out of stock

10

RH OUTER OIL HOSE

16820-20031

—
Out of stock

11

LH OUTET OIL HOSE

16840-20031

—
Out of stock

12

INLET OIL HOSE

16810-20031

—
Out of stock

13

UNION BOLT | 6 SCREW, L:16

09360-06003

1
Out of stock

14

GASKET This part replaces 09168-06002.

09168-06004

10
Out of stock

15

UNION BOLT | 6 SCREW, L:13.5

09360-06005

4
Out of stock

16

OIL HOSE BUSHING

16819-20000

—
Out of stock

17

CABLE ADJUSTER LOCK NUT

09159-08003

—
Out of stock

18

CABLE ADJUSTER

09119-08003

—
Out of stock

19

TACHOMETER WORM GEAR WASHER | 8x13.7x1

09160-08003

2
Out of stock

20

TACHOMETER WORM GEAR | T125; NT:14

26431-20100

—
Out of stock

20

TACHOMETER WORM GEAR | NT:13; E.NO.105020

26431-20101

—
Out of stock

21

TACHOMETER WORM GEAR BUSHING O | ID:9.6, 0:1.3ID:9.6, 0:1.3

09280-10001

1
Out of stock

22

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

23

TACHOMETER WORM GEAR BUSHING B

09135-08002

—
Out of stock

24

OIL HOSE COVER

11441-20000

—
Out of stock

25

HAXAGON BOLT

01111-06128

—
Out of stock
