1971 Suzuki T125II Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1971 Suzuki T125II, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

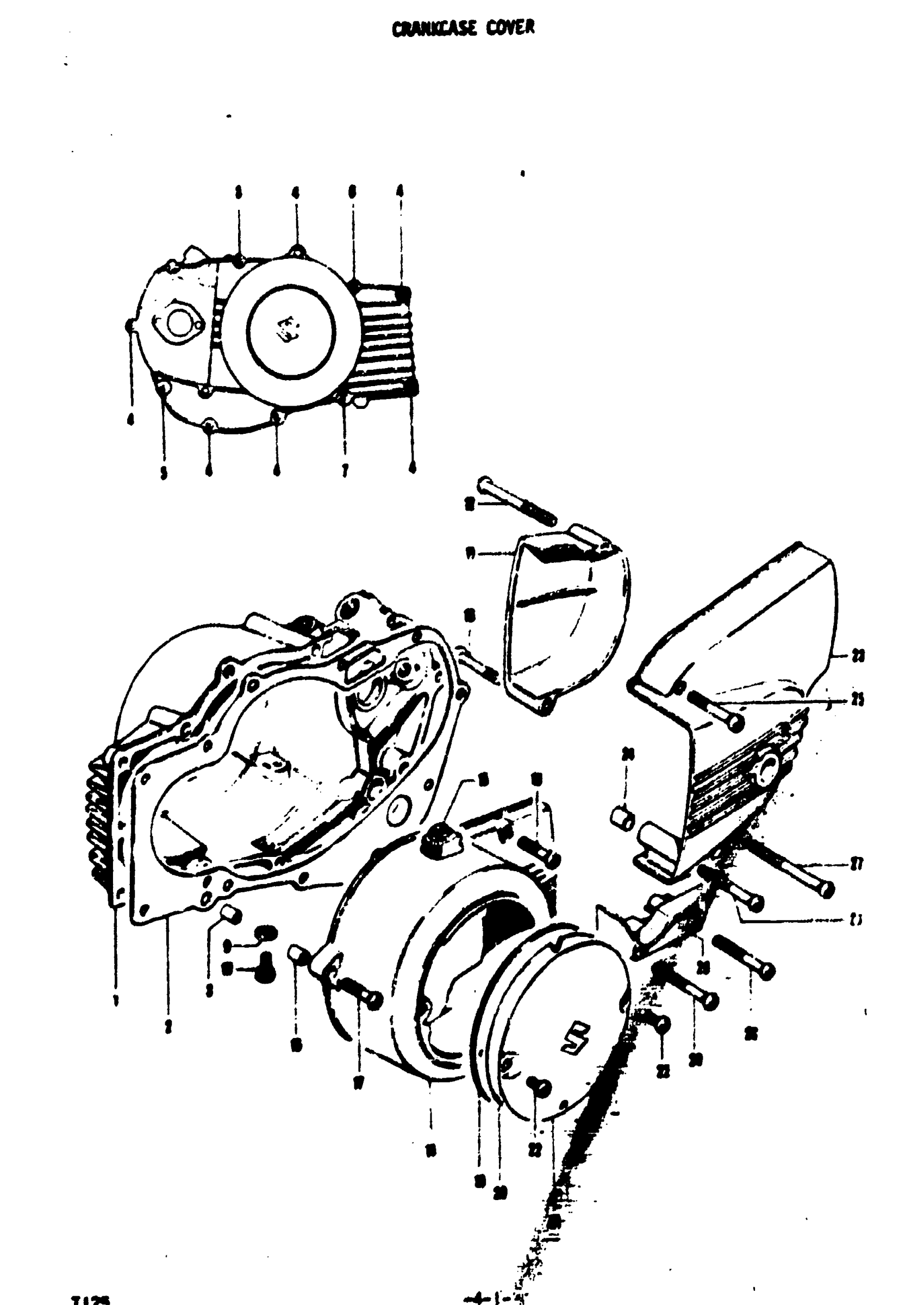

1971 Suzuki T125II Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE RH COVER

11341-20000

—
Out of stock

2

CRANKCASE RH COVER GASKET

11482-20000

1
Out of stock

3

DOWEL PIN

04211-09129

2
Out of stock

4

SCREW This part replaces 02112-06258.

02112-06257

6
Out of stock

5

SCREW This part replaces 02112-06358.

02112-06357

1
Out of stock

6

SCREW (6X40) This part replaces 02112-06408.

02112-06407

1
Out of stock

7

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

1
Out of stock

8

SCREW This part replaces 02112-06758.

02112-06757

1
Out of stock

9

OIL LEVEL SCREW GASKET | 6.2x11x1

09168-06001

1
Out of stock

10

OIL LEVEL SCREW | 6SCREW,L:12

09247-06001

—
Out of stock

11

OIL PUMP COVER

11411-20000

—
Out of stock

12

SCREW This part replaces 02112-06708.

02112-06707

1
Out of stock

13

CROSS HEAD SCREW

02111-06458

—
Out of stock

14

CRANKCASE LH COVER | T125;E.NO.~108140.

11351-20002

—
Out of stock

14

CRANKCASE LH COVER

11351-20100

—
Out of stock

15

CLUTCH CABLE ADJUSTER HOLDER

11371-20000

—
Out of stock

16

DOWEL PIN | T125; E.NO.~108140.

04211-09109

2
Out of stock

16

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

17

CROSS HEAD SCREW | T125; E.NO.~108140.

02111-06358

—
Out of stock

17

CROSS HEAD SCREW

02111-06458

—
Out of stock

18

CROSS HEAD SCREW

02111-06258

—
Out of stock

19

GENERATOR INSPECTION CAP GASKE | T:1T:1

11491-10000

1
Out of stock

20

GENERATOR INSPECTION CAP GASKE | T:0.6T:0.6

11491-20000

1
Out of stock

21

CAP, GENERATOR INSPECTION This part replaces 11381-10000.

11381-18100

1
Out of stock

22

CROSS HEAD SCREW

02111-05088

—
Out of stock

23

ENGINE SPROCKET COVER

11361-20001

—
Out of stock

24

DOWEL PIN

04211-09129

1
Out of stock

25

CROSS HEAD SCREW

02111-06408

—
Out of stock

26

CROSS HEAD SCREW

02111-06458

—
Out of stock

27

CROSS HEAD SCREW

02111-06658

—
Out of stock

28

NEUTRAL INDICATOR SWITCH COVER

11461-20000

—
Out of stock

29

CROSS HEAD SCREW

02111-06458

—
Out of stock
