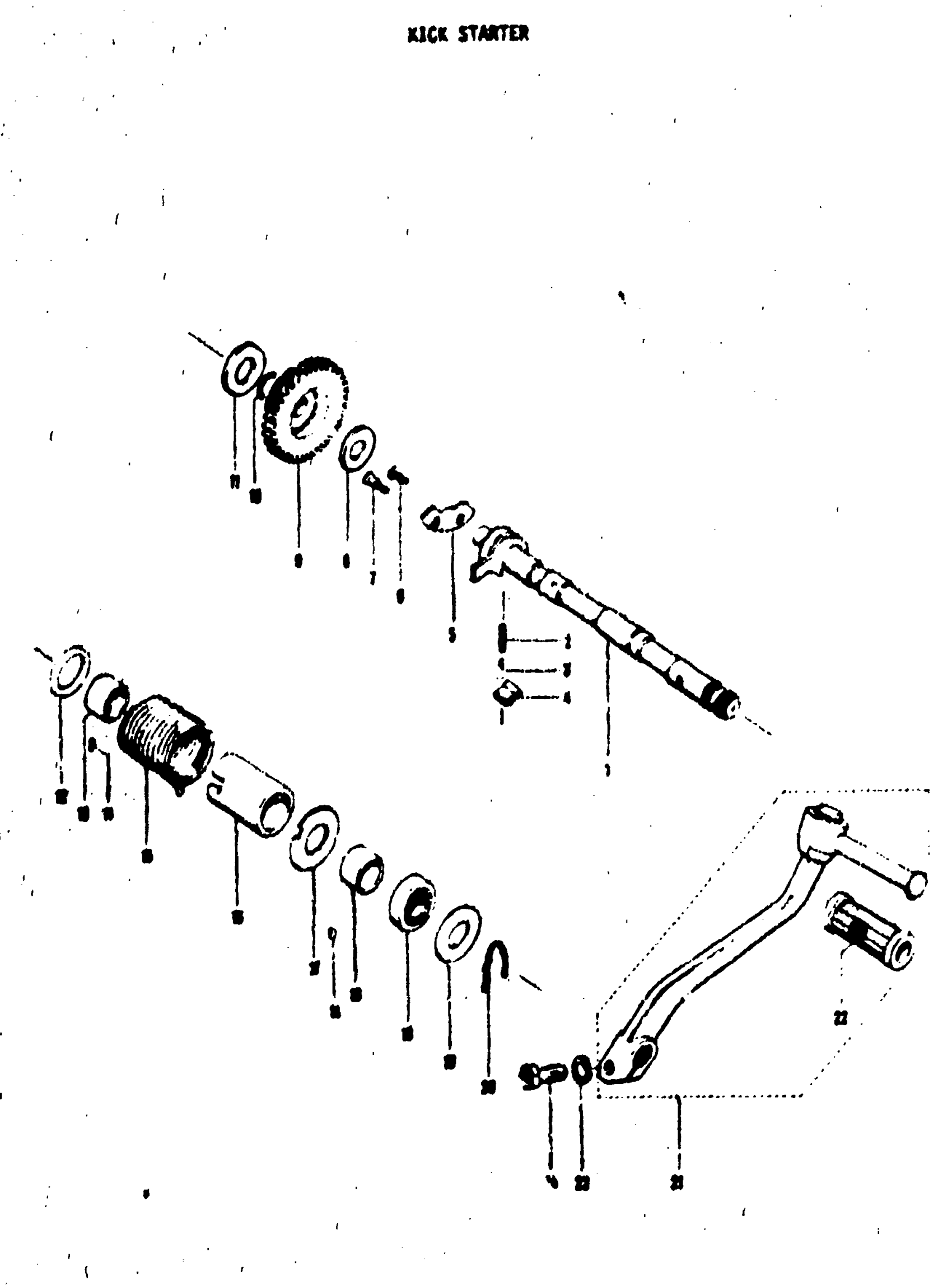

Suzuki T125II (1971) KICK STARTER Diagram

#

Description
Price

1

KICK STARTER SHAFT

26211-20000

Unavailable

2

KICK STARTER PAWL SPRING

09440-04010

$1.54

3

KICK STARTER PAWL PIN

09209-05011

$2.20

4

KICK STARTER PAWL

26231-20000

$7.74

5

KICK STARTER PAWL LITTER

26232-11000

Unavailable

6

SCREW This part replaces 02121-06168.

02122-06167

$1.49

7

KICK STARTER PAWL LITTER SCREW | 6 SCREW

09139-06002

$2.38

8

KICK STARTER DRIVE GEAR RH THR | 13x31.5x1.513x31.5x1.5

09160-13002

Unavailable

9

KICK STARTER DRIVE GEAR | T125; NT:34/17

26240-20001

Unavailable

9

KICK STARTER DRIVE GEAR | NT: 35/17 E.NO.105525.

26240-20002

Unavailable

10

KICK STARTER DRIVE GEAR O RING

09280-13001

$2.72

11

THRUST WASHER

08211-20341

$2.80

12

KICK STARTER DRIVE GEAR LH THR | 16x30.5x116x30.5x1

09160-16003

$2.92

13

KICK STARTER SHAFT BUSHING

09300-16002

Unavailable

14

ROLLER

04221-04069

$2.12

15

KICK STARTER SHAFT SPRING

09448-37001

Unavailable

16

KICK STARTER SHAFT SPRING GUID

26221-11000

Unavailable

17

KICK STARTER SHAFT GUIDE WASHE

09166-16001

Unavailable

18

KICK STARTER SHAFT OIL SEAL | 16x30x5

09285-16001

Unavailable

19

KICK STARTER SHAFT WASHER | 16x33x1.6

09160-16002

Unavailable

20

KICK STARTER SHAFT CIRCLIP

09384-16001

Unavailable

21

KICK STARTER LEVER ASS'Y | Includes Item(s) 22

26300-20002

Unavailable

22

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

24

BOLT This part replaces 01122-08258.

01500-08257

$2.50
