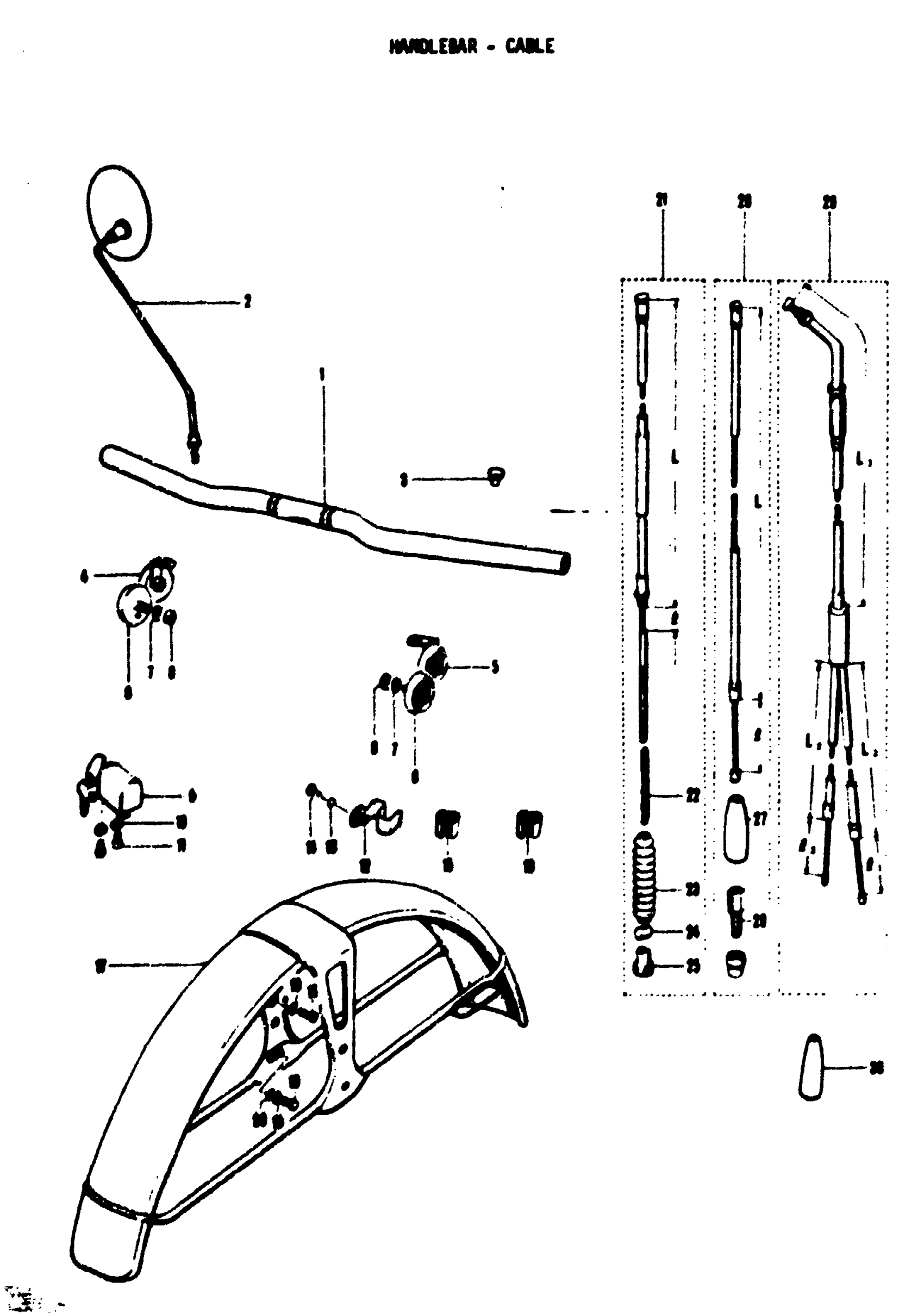

Suzuki T125II (1971) HANDLEBAR - CABLE Diagram

#

Description
Price

1

HANDLEBAR

56111-20000

Unavailable

2

MIRROR ASSY,REA | T125 This part replaces 56500-19600.

56500-35611

$189.20

3

PLUG | T125 This part replaces 09250-06001.

09250-06005

$2.15

4

FRONT RH REFLECTOR | T125II,T125R

35950-22612

Unavailable

5

FRONT LH REFLECTOR | T125II,T125R

35960-22612

Unavailable

6

FRONT REFLECTOR | T125

35950-18612

Unavailable

7

LOCK WASHER | T125 This part replaces 08321-21058.

08321-0105A

$1.84

8

NUT | T125 This part replaces 08311-11058.

08310-00057

$1.84

9

STEERING LOCK ASS'Y

51900-03012

Unavailable

10

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

11

SCREW This part replaces 02111-05108.

02112-05107

$1.49

12

NO DESCRIPTION AVAILABLE This part replaces 09403-00034.

09403-16304

Unavailable

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

14

BOLT This part replaces 01111-05108.

01500-0510B

$1.80

15

CABLE CLIP

09408-00002

$2.30

16

CABLE CLIP

09408-00001

Unavailable

17

FRONT FENDER | CHROME PLATED

53110-12620

Unavailable

18

HEXAGON BOLT

01111-06108

Unavailable

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

WASHER This part replaces 08322-21068.

08322-01067

$2.13

21

CABLE,FR BRAKE | L:940, L:40; Includes Item(s) 22 - 25 This part replaces 58100-03751.

58100-03X01

Unavailable

22

BRAKE CABLE SPRING

09440-06003

$2.44

23

BRAKE CABLE BOOT

09287-07001

$2.00

24

BRAKE CABLE LEVER PIN

09209-10001

$1.49

25

BRAKE CAM ADJUSTING NUT

09150-05101

$3.04

26

CLUTCH CABLE ASS'Y | L:770, L:92; Includes Item(s) 27 - 28

58200-20000

Unavailable

27

CLUTCH CABLE BOOT

09287-10002

Unavailable

28

NUT This part replaces 09159-08007.

08310-00087

$2.13

29

THROTTLE CABLE ASS'Y | L1:400, L2:460 L3:165, L1:126, L2:57 This part replaces 58300-20000.

58300-20700

Unavailable

30

SEAL,DUST | T125,T125II This part replaces 09287-07002.

09287-07006

$2.30
