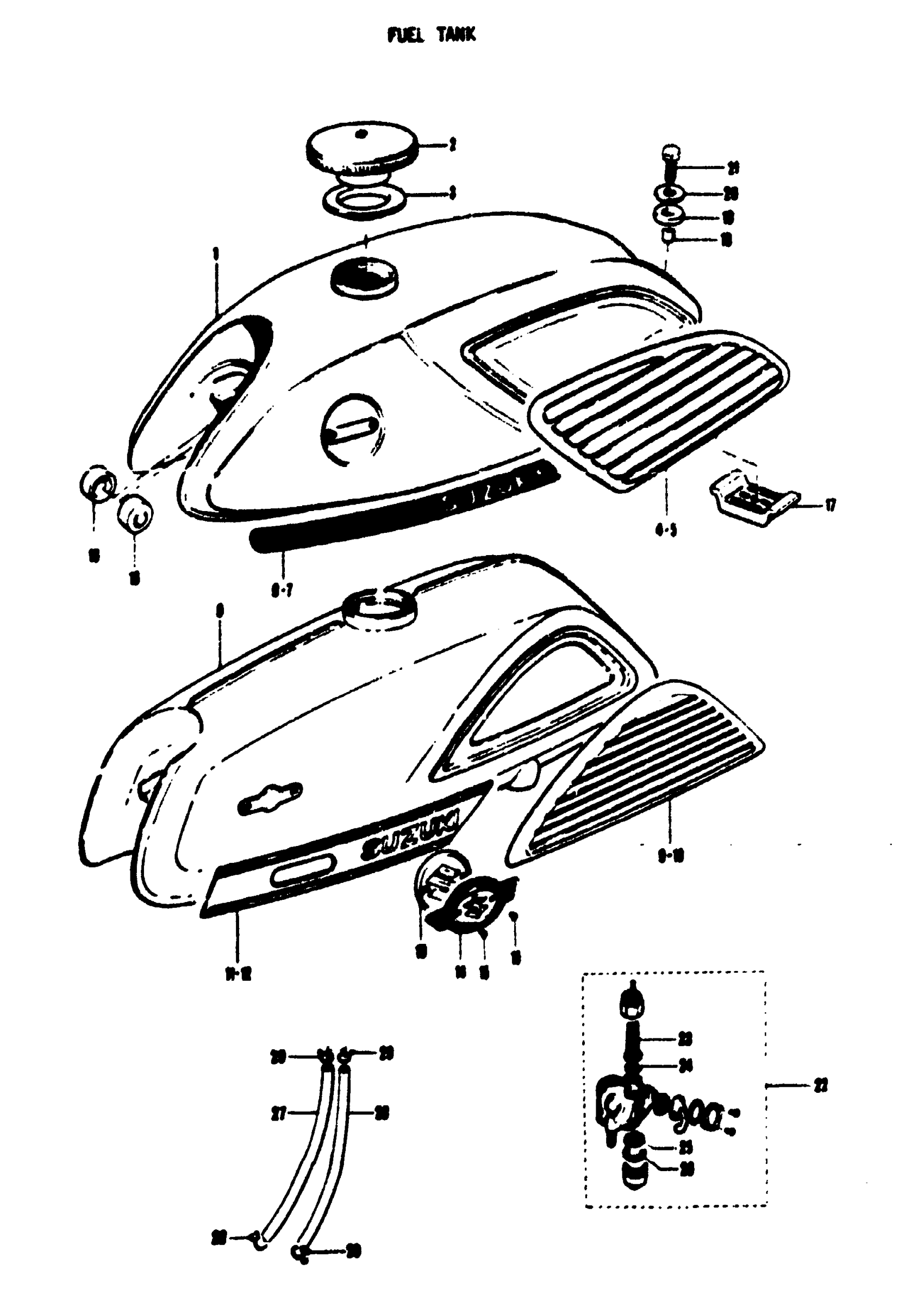

Suzuki T125II (1971) FUEL TANK Diagram

#

Description
Price

1

FUEL TANK | T125

44110-20001

Unavailable

1

FUEL TANK | T12511

44110-20001-176

Unavailable

1

FUEL TANK | T125II

44110-20001-186

Unavailable

2

CAP FUEL TANK | T125,T12511 This part replaces 44210-12000.

44200-23810

$49.39

2

CAP, FUEL TANK | T125R This part replaces 44210-11000.

44210-36200

Unavailable

3

FUEL TANK CAP GASKET | T125,T125II

44248-12000

Unavailable

3

FUEL TANK CAP GASKET | T125R

44248-11000

Unavailable

4

RH KNEE GRIP | T125,T125II

44251-20000

Unavailable

5

LH KNEE GRIP | T125,T125II

44252-20000

Unavailable

6

RH STRIPING TAPE | T125II

68115-20600

Unavailable

7

NO DESCRIPTION AVAILABLE | T125II This part replaces 68125-20600.

68100-22850

Unavailable

8

FUEL TANK | T125R

44110-20100-164

Unavailable

9

RH KNEE GRIP | T125R

44251-20101

Unavailable

10

LH KNEE GRIP | T125R

44252-20100

Unavailable

11

RH STRIPING TAPE | T125R

68115-20610

Unavailable

12

LH STRIPING TAPE | T125R

68125-20610

Unavailable

13

FUEL TANK EMBLEM | T125

68110-18000

Unavailable

14

FUEL TANK EMBLEM | T125II,T125R This part replaces 68111-18100.

68111-22200

Unavailable

15

SCREW | T125; 3SCREW, L:8 This part replaces 09125-03106.

09125-03104

Unavailable

15

FUEL TANK EMBLEM SCREW | T125II,T125R; 4SCREW, L:6

09125-04108

Unavailable

16

FUEL TANK FRONT SHOCK DEMPER (

09329-10004

Unavailable

17

FUEL TANK REAR SNOCK DEMPER (A

44541-20000

Unavailable

18

SPACER,8.8X12X1 | 8.8x12x15.58.8x12x15.5 This part replaces 09180-08036.

09180-08036-XC0

Unavailable

19

FUEL TANK REAR SHOCK DAMPER (B

09320-12009

$2.93

20

WASHER, EXHAUST SUPPORT | 8.5x29x1.6 This part replaces 09160-08002.

09160-08135

$2.35

21

BOLT This part replaces 09100-08001.

09100-08083

$2.72

22

FUEL COCK ASS'Y

44300-20050

Unavailable

23

PIPE STRAINER NET | Includes Item(s) 24 - 26

44330-19051

Unavailable

24

JOINT NUT GASKET

44348-20050

Unavailable

25

FUEL COCK STRAINER NET

44346-00052

Unavailable

26

STRAINER CUP GASKET

44346-20050

$4.83

27

RH FUEL HOSE

09343-05030

Unavailable

28

HOSE,5X10X600 This part replaces 09343-05031.

44421-13ER0

$10.06

29

FUEL HOSE CLIP

09386-08001

Unavailable

30

FUEL TANK SET | T125II

99107-20176

Unavailable

30

FUEL TANK | T125II

44110-20001-176

Unavailable

30

CAP FUEL TANK | T125II This part replaces 44210-12000.

44200-23810

$49.39

30

FUEL TANK CAP GASKET | T125II

44248-12000

Unavailable

30

RH KNEE GRIP | T125II

44251-20000

Unavailable

30

LH KNEE GRIP | T125II

44252-20000

Unavailable

30

FUEL TANK EMBLEM | T125II This part replaces 68111-18100.

68111-22200

Unavailable

30

SCREW | T125II This part replaces 09125-03106.

09125-03104

Unavailable
