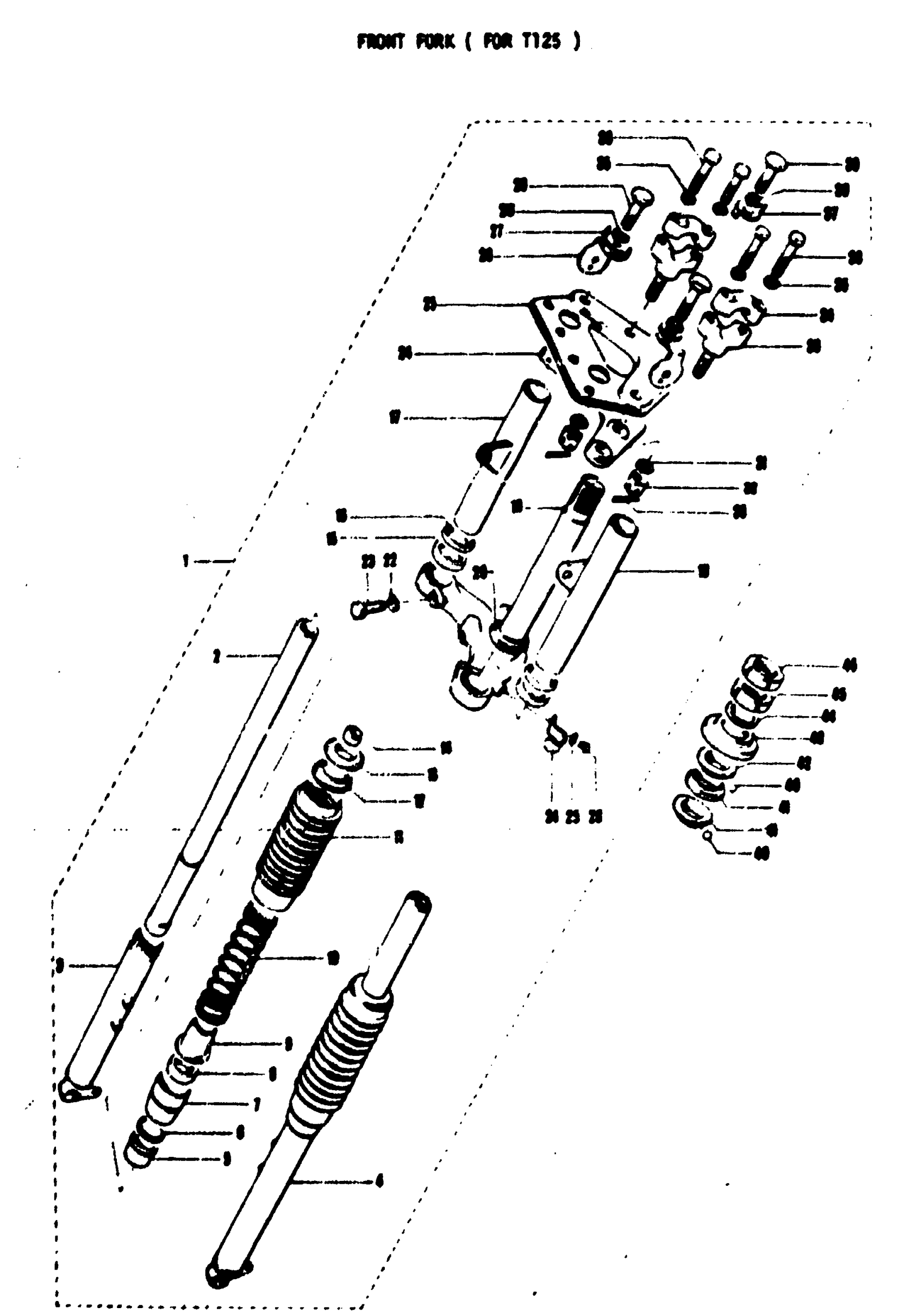

Suzuki T125II (1971) FRONT FORK (FOR T 125) Diagram

#

Description
Price

1

FRONT FORK ASS'Y | Includes Item(s) 2 - 39

51100-20620-019

Unavailable

2

INNER TUBE

51110-20010

Unavailable

3

RH OUTER TUBE | CHROME PLATED

51130-20010

Unavailable

4

LH OUTER TUBE | CHROME PLATED

51140-20010

Unavailable

5

INNER TUBE GUIDE

51152-03011

Unavailable

6

OIL SEAL O RING

51154-12001

Unavailable

7

OUTER TUBE NUT

51150-12010

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 51153-03011.

51153-23010

Unavailable

9

DUST SEAL

51173-01211

Unavailable

10

FORK SPRING

51171-20010

Unavailable

11

SPRING COVER BOOK

51571-03110

Unavailable

12

SPRING GUIDE

51573-03110

Unavailable

13

SPRING SPACER

51172-20010

Unavailable

14

INNER TUBE SHOCK DAMPER

51181-03010

Unavailable

15

DAMPER, SHOCK This part replaces 51553-20610.

51553-01211

Unavailable

16

HEAD LAMP BRACKET SEAT

51551-20610

Unavailable

17

HEAD LAMP RH BRACKET

51530-20610

Unavailable

18

HEAD LAMP LH BRACKET

51540-20610

Unavailable

19

STREARING STEAM COMP

51410-20010

Unavailable

20

STEARING LOWER OUTER RACE

51622-20000

Unavailable

21

CABLE CLIP

51452-08010

Unavailable

22

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

23

BOLT This part replaces 51451-03010.

01500-1030A

$3.16

24

STEARING STEAM HEAD

51310-20010

Unavailable

25

STEARING HEAD COVER

51325-20110-019

Unavailable

26

REFLECTOR PLATE

51581-20620

Unavailable

27

NO DESCRIPTION AVAILABLE This part replaces 51356-20010.

51356-20011

Unavailable

28

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

31

FORK BOLT

08321-20010

Unavailable

30

HEADLEBAR LOWER CLAMP

56220-20010-019

Unavailable

31

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

32

NUT This part replaces 08314-31108.

08314-3110A

$1.99

33

CITTER PIN This part replaces 04111-25206.

04111-2520A

$1.49

34

HANDLABAR UPPER CLAMP

56211-12111-019

Unavailable

35

LOCK WASHER

06321-21068

Unavailable

36

SMALL HEXAGON BOLT

01221-06307

Unavailable

37

NO DESCRIPTION AVAILABLE This part replaces 51356-20010.

51356-20011

Unavailable

38

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

39

STEERING STEM HEAD BOLT

51352-20010

Unavailable

40

STEEL BOLT

06111-06004

Unavailable

41

STEARING INNER RACE

51611-20000

Unavailable

42

RACE, STEERING OUTER UPPER This part replaces 51621-05000.

51621-25000

$12.40

43

DUST SEAL This part replaces 51643-05000.

51643-06001

Unavailable

44

STEARING LOCK WASHER

09166-24001

Unavailable

45

STEARING STEAM NUT

51631-05000

Unavailable
