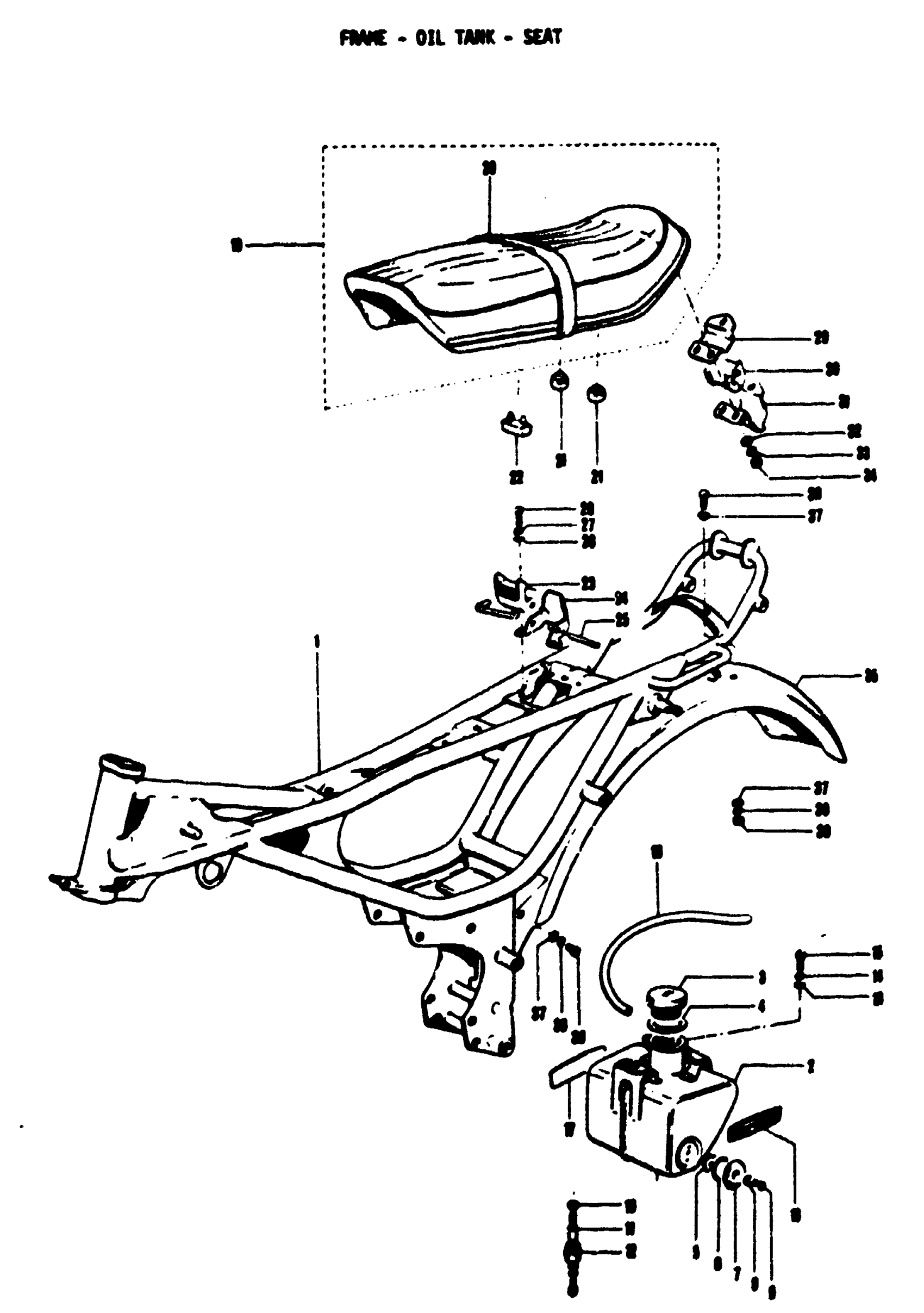

Suzuki T125II (1971) FRAME - OIL TANK - SEAT Diagram

#

Description
Price

1

FRAME

41100-20100-019

Unavailable

2

OIL TANK COMP.

44610-20100-019

Unavailable

3

OIL TANK CAP

44651-11040

$15.05

4

GASKET,OIL TANK This part replaces 44661-11000.

44661-11001

$3.66

5

LENS SET, OIL INSPECTION This part replaces 44642-11000.

44640-11843

Unavailable

6

OIL LEVEL INSPECTION LENS O RI | ID:23, D:3ID:23, D:3

09280-23001

Unavailable

7

OIL LEVEL INSPECTION LENS

44641-11000

Unavailable

8

INSPECTION LENS GASKET | 5x9, 5x1

09168-05001

$1.98

9

SCREW This part replaces 02111-05168.

02112-05167

$1.97

10

OIL TANK OUTLET GASKET | 8.2x13.5x2.5

44733-11030

$2.28

11

OIL TANK OUTLET STRAINER NET

44720-11030

$5.38

12

OIL OUTLET JOINT NUT

09361-14001

Unavailable

13

WASHER This part replaces 08322-11088.

08322-01087

$2.13

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

BOLT, LH This part replaces 09100-08067.

09100-08143

$2.29

16

OIL TANK LH EMBLEM | SUZUKI 125

68171-20610

Unavailable

17

OIL TANK RH EMBLEM | SUZUKI 001

68171-20000

Unavailable

18

HOSE (5X8X2000) This part replaces 09344-05005.

09351-50803-00B

$9.10

19

NO DESCRIPTION AVAILABLE | T125,T125II This part replaces 45100-20000.

45100-20000-369

Unavailable

19

DUAL SEAT ASS'Y | T125R; Includes Item(s) 20

45100-20100-369

Unavailable

20

PASSANGER STRAP

45180-20000

Unavailable

21

SEAT CUSHION

09321-10001

$2.61

22

CUSHION This part replaces 09321-08004.

09321-08006

$2.90

23

SEAT CLAMP

45210-20000

Unavailable

24

SEAT CLAMP GUIDE PLATE

45219-20000

Unavailable

25

SEAT CLAMP PIN

09205-06001

Unavailable

26

WASHER This part replaces 08322-21068.

08322-01067

$2.13

27

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

28

HEXAGON BOLT

01111-06168

Unavailable

29

SEAT REAR UPPER BRACKET

45221-20000

Unavailable

30

SEAT BEAR BRACKET BUSHING

09305-19001

Unavailable

31

SEAT REAR LOWER BRACKET

45226-20000

Unavailable

32

WASHER This part replaces 08322-21068.

08322-01067

$2.13

33

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

34

.NUT This part replaces 08311-11068.

08310-00067

$2.13

35

REAR FENDER | CHROME PLATED

63110-20600

Unavailable

36

BOLT This part replaces 09100-06026.

09100-06067

Unavailable

37

WASHER This part replaces 08322-21068.

08322-01067

$2.13

38

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
