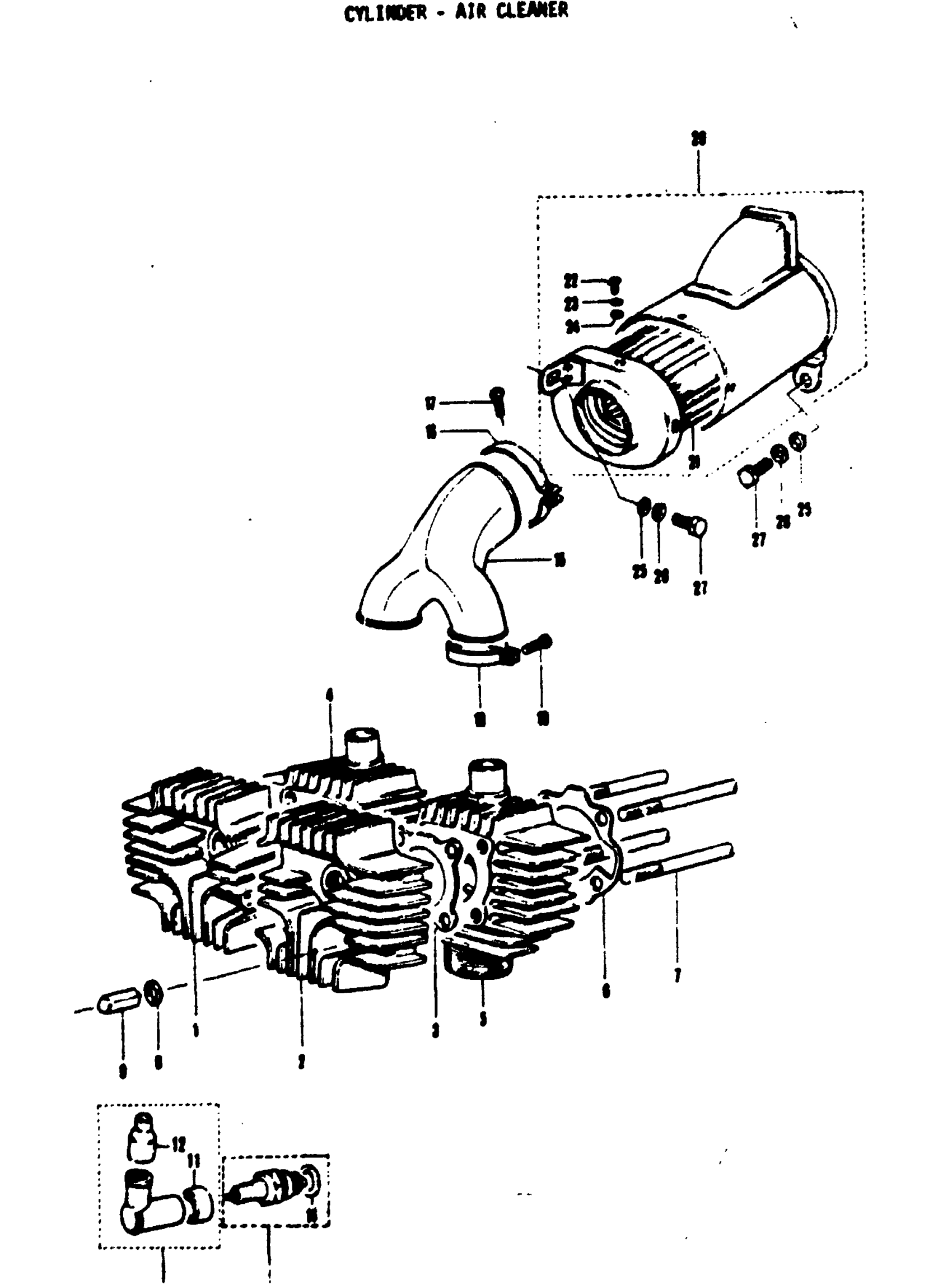

Suzuki T125II (1971) CYLINDER - AIR CLEANER Diagram

#

Description
Price

1

RH CYLINDER HEAD

11111-20100

Unavailable

2

LH CYLINDER HEAD

11121-20100

Unavailable

3

CYLINDER HEAD GASKET

11141-20100

Unavailable

4

RH CYLINDER

11211-20100

Unavailable

5

LH CYLINDER

11221-20101

Unavailable

6

CYLINDER GASKET

11241-20000

Unavailable

7

CYLINDER STUD BOLT

09108-06023

Unavailable

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

NO DESCRIPTION AVAILABLE This part replaces 09159-06002.

09159-06002-XC0

Unavailable

10

SPARK PLUG CAP ASS'Y | Includes Item(s) 11 - 12

33501-10801

Unavailable

11

SPARK PLUG CAP SEAL

33541-11000

Unavailable

12

HIGH TENSION CORD SEAL

33542-51000

Unavailable

13

SPARK PLUG (NGK,BP7HS) | NGK, BR-7HS This part replaces 09482-00060.

09482-00105

$2.79

13

SPARK PLUG ASS'Y | NGK, B-7H,OPT; Includes Item(s) 14

09482-00002

Unavailable

14

SPARK PLUG GASKET

09168-14002

$2.26

15

AIR CLEANER HOSE

13881-20000

Unavailable

16

CLAMP (2) This part replaces 09402-00162.

09402-58306

$4.77

17

SCREW This part replaces 02111-04208.

02112-0420A

$1.49

18

CLAMP This part replaces 09402-00184.

09402-44208

$5.80

19

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

20

AIR CLEANER ASS'Y | T125

13700-20111

Unavailable

20

AIR CLEANER ASS'Y | T125II,T125R; Includes Item(s) 21 - 24

13700-20610

Unavailable

21

AIR CLEANER ELEMENT

13780-20010

Unavailable

22

WASHER This part replaces 08322-21048.

08322-01047

$1.86

23

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

24

CROSS HEAD SCREW

02111-04088

Unavailable

25

WASHER This part replaces 08322-21068.

08322-01067

$2.13

26

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

27

HEXAGON BOLT

01111-06128

Unavailable
