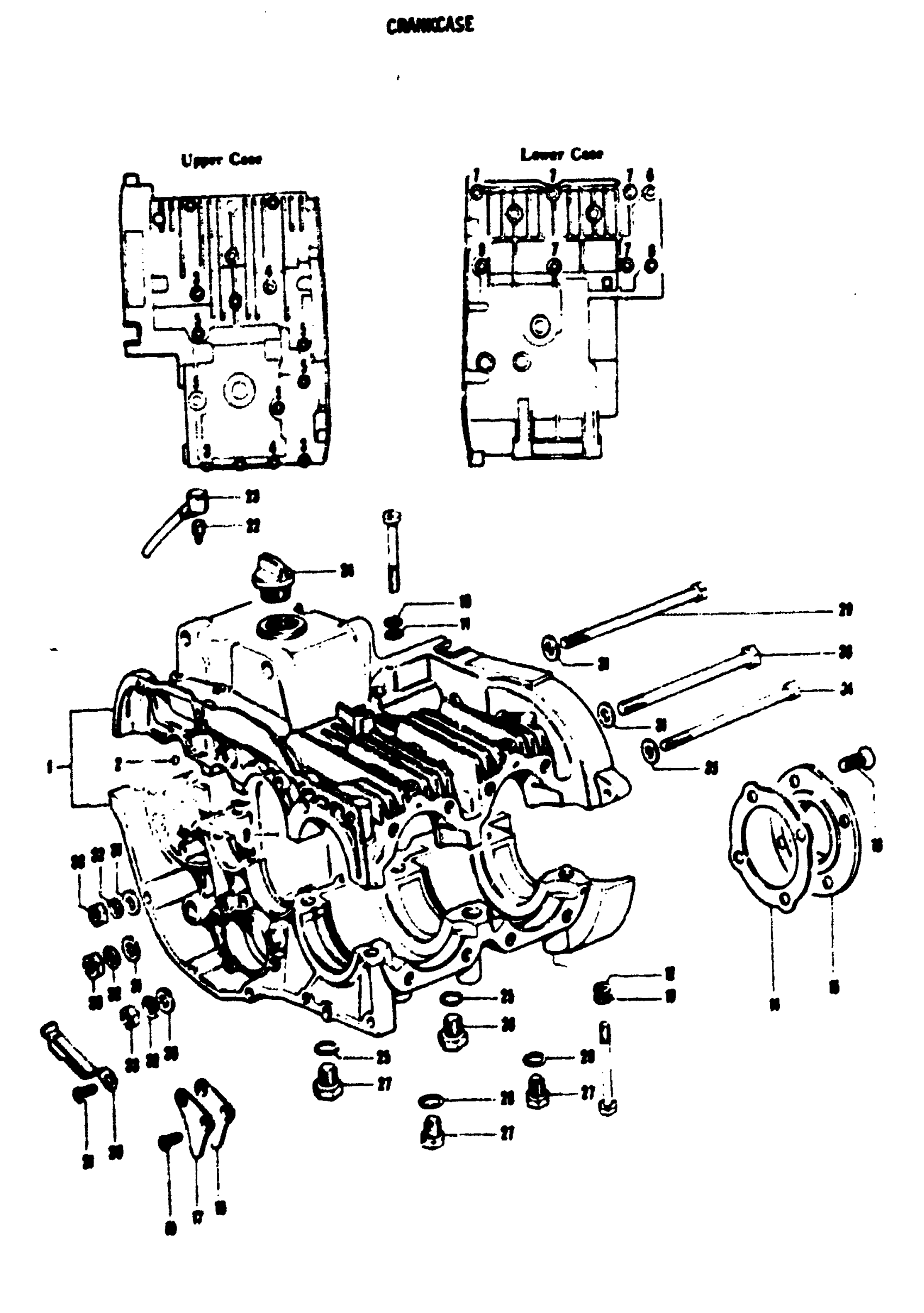

Suzuki T125II (1971) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASS'Y | Includes Item(s) 2 - 12

11300-20827

Unavailable

2

DOWEL PIN

04211-11129

$1.76

3

BOLT This part replaces 01112-06408.

01500-0640B

$2.62

4

BOLT This part replaces 01112-06508.

01500-06507

$3.03

5

BOLT This part replaces 01112-06558.

01500-0655B

$2.92

6

BOLT This part replaces 01112-06808.

01500-0685B

$3.85

7

BOLT This part replaces 01122-08708.

01500-0870B

$3.49

8

BOLT This part replaces 01122-08758.

01500-0875B

$4.10

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

WASHER This part replaces 08322-11058.

08322-01057

$2.13

11

WASHER This part replaces 08322-11088.

08322-01087

$2.13

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

TRANSMISSION OIL DEFLECTOR

24829-20000

Unavailable

14

OIL SEAL LH HOUSING GASKET

12335-20000

Unavailable

15

OIL SEAL LH HOUSING

12331-20001

Unavailable

16

SCREW This part replaces 02122-06128.

02122-06127

$1.84

17

OIL RESERVOIR PLATE

12561-20000

Unavailable

18

OIL RESERVOIR CAP GASKET

12571-20000

Unavailable

19

CROSS HEAD SCREW

02121-06128

Unavailable

20

OIL RESERVOIT CAP

24871-20000

Unavailable

21

CROSS HEAD SCREW

02121-06128

Unavailable

22

PLUG, BREATHER This part replaces 24821-09000.

24821-09001

$9.33

23

BREATHER PLUG C This part replaces 24822-26000.

24822-20001

$3.70

24

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02

25

OIL DRAIN PLUG GASKET

09168-12003

$1.71

26

PLUG, DRAIN This part replaces 09247-12102.

09247-12104

$2.73

27

CRANK DRAIN PLUG

09247-10001

$2.20

28

CRANK DRAIN PLUG GASKET

09168-10002

$2.13

29

ENGINE MOUNTING BOLT | 8SCREW, L:100

09100-08023

Unavailable

30

WASHER This part replaces 08322-11058.

08322-01057

$2.13

31

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

32

NUT This part replaces 08312-11088.

08310-00087

$2.13

33

ENGINE MOUNTING BOLT | 8SCREW,L:110

09100-08026

Unavailable

34

WASHER This part replaces 08322-21088.

08322-01087

$2.13
