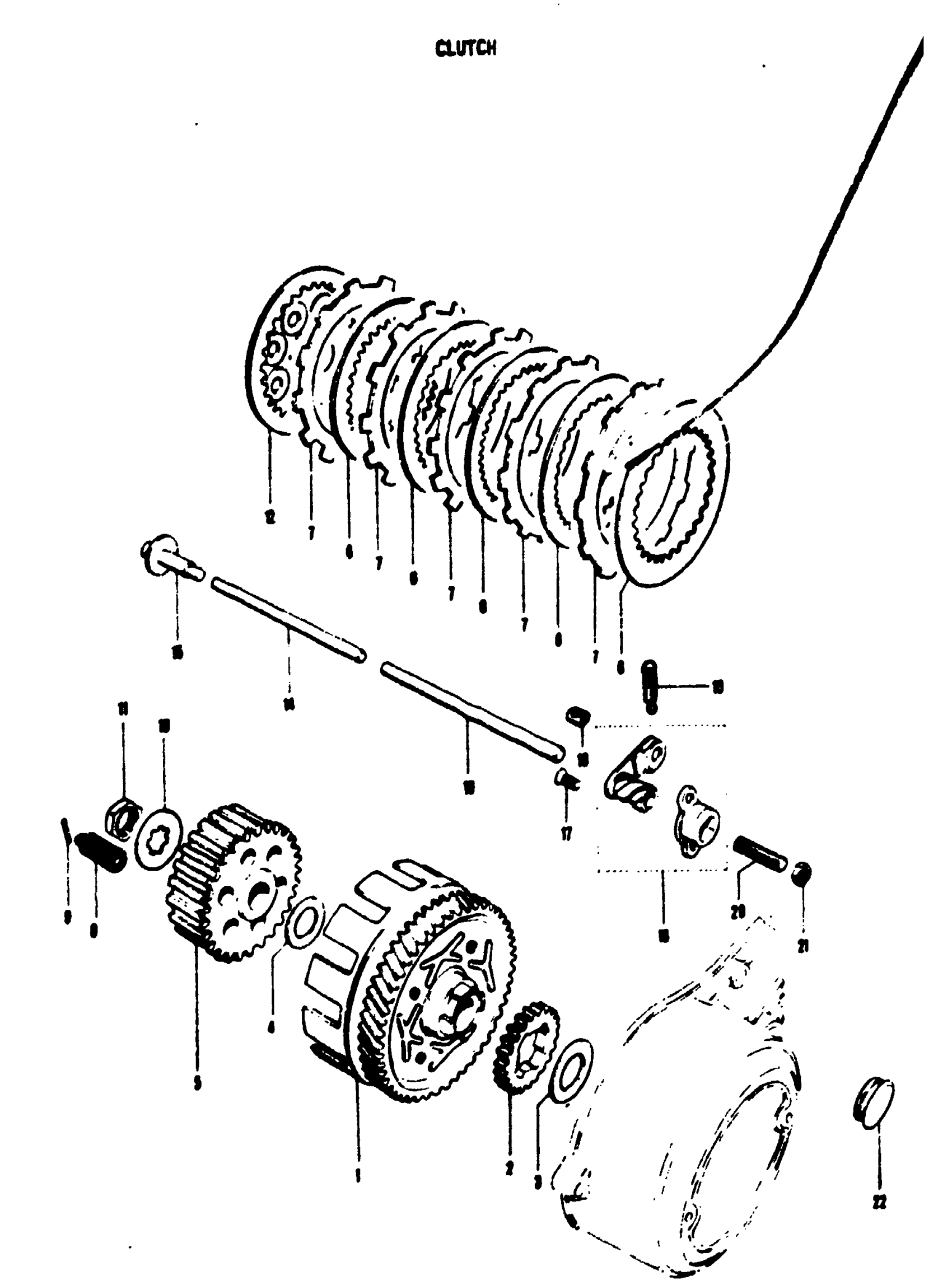

Suzuki T125II (1971) CLUTCH Diagram

#

Description
Price

1

CLOTCH HOUSING ASS'Y | NT:50

21200-20000

Unavailable

2

KICK STARTER DRIVER GEAR | T125; NT:22

26281-20000

Unavailable

2

KICK STARTER DRIVERN GEAR | NT:21 E.NO.105020

26281-20001

Unavailable

3

THRUST WASHER

08211-20341

$2.80

4

WASHER | 17x29x1.517x29x1.5 This part replaces 09160-17003.

08211-17282

$2.70

5

CLUTCH SLEEVE HUB

21411-20000

Unavailable

6

CLUTCH STEEL PLATE

21451-07200

Unavailable

7

PLATE, CLUTCH D This part replaces 21441-07200.

21441-21D11

Unavailable

8

CLUTCH SPRING

09443-12010

$2.45

9

CLUTCH SPRING PIN | OD:..5,L:19.8

09261-02001

$1.56

10

CLUTCH SLEEVE HUB WASHER

09167-17002

$1.91

11

NUT This part replaces 09140-16001.

09140-16005

$3.75

12

CLUTCH PRESSURE PLATE

21460-20000

Unavailable

13

CLUTCH PUSH ROD (.) | T125; OD:6, L:113

23111-20000

Unavailable

13

CLUTCH PUSH ROD (L) | T125II,T125R; OD:5.5, L:09

23111-20001

Unavailable

14

ROD, CLUTCH PUSH | T125 This part replaces 23111-08000.

23111-30001

Unavailable

14

CLUTCH PUSH ROD (S) | T125II,T125

23111-20001

Unavailable

15

CLUTCH RELEASE ROD

23121-14000

Unavailable

16

CLUTCH RELEASE SCREW ASS'Y

23200-05030

Unavailable

17

CROSS HEAD SCREW

02121-05128

Unavailable

18

CLUTCH RELEASE ARM END PLACE

23222-07000

$4.52

19

CLUTCH RELEASE RETUREN SPRING

09443-08001

$2.92

20

SCREW | 6 SCREW, L:25 This part replaces 09134-06001.

09134-06010

$3.12

21

.NUT This part replaces 08311-31068.

08310-00067

$2.13

22

CLUTCH RELEASE ADJUSTING HOLE

09250-20006

Unavailable
