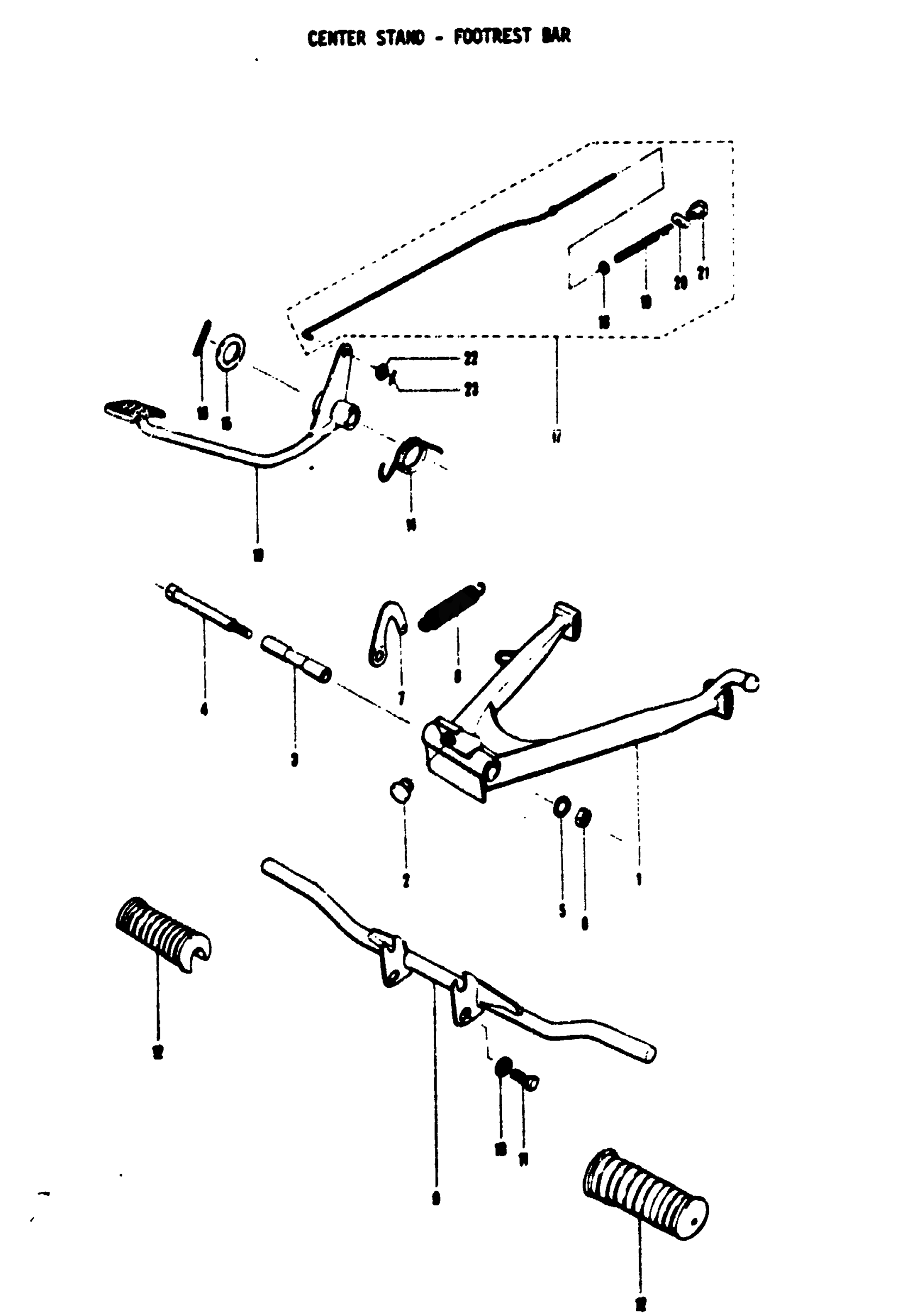

Suzuki T125II (1971) CENTER STAND - FOOTREST BAR Diagram

#

Description
Price

1

CENTER STAND COMP.

42100-12300

Unavailable

2

CENTER STAND BUFFER

09321-10002

$2.22

3

CENTER STAND SPACER | 10.4x16x4.4

42211-03001

Unavailable

4

BOLT,10X107 | 10SCREW, L:107 This part replaces 09100-10018.

09100-10151

Unavailable

5

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

6

NUT This part replaces 08312-11108.

08310-00107

$2.19

7

HOOK,CENTER STA This part replaces 42251-03002.

42251-03004

Unavailable

8

SPRING This part replaces 09443-16005.

09443-16005-XC0

Unavailable

9

FRONT FOOTREST BAR COMP.

43510-20000

Unavailable

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

PLUG, DRAIN This part replaces 01121-08168.

01500-0816B

$2.50

12

RUBBER This part replaces 43551-03000.

43551-03001

$7.22

13

BRAKE PEDAL COMP.

43110-20000

Unavailable

14

BRAKE PEDAL RETURN SPRING

09448-31004

Unavailable

15

BRAKE PEDAL WASHER | 15.5x26x2.3

09160-15002

$1.91

16

PIN This part replaces 04111-30258.

04111-3030A

$1.49

17

BRAKE ROD ASS'Y | Includes Item(s) 18 - 21

43300-20000

Unavailable

18

WASHER This part replaces 08322-21068.

08322-01067

$2.13

19

ADJUSTING SPRING

09440-09004

$2.20

20

LEVER PIN

09209-11002

$2.19

21

.NUT This part replaces 09150-06001.

09150-06010

$3.10

22

WASHER This part replaces 08322-21058.

08322-01057

$2.13

23

COTTER PIN

04111-20188

Unavailable
