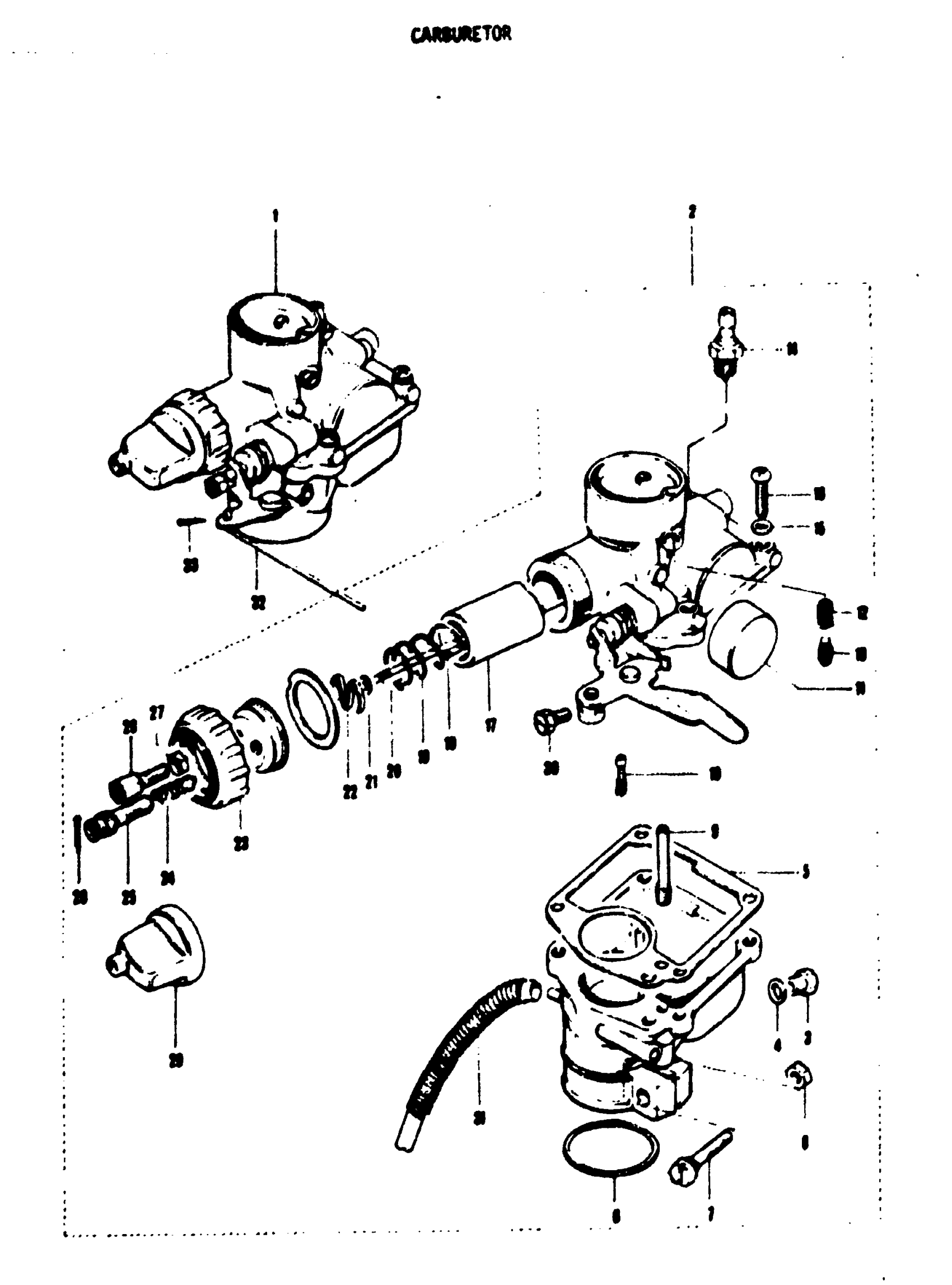

Suzuki T125II (1971) CARBURETOR Diagram

#

Description
Price

1

RH CARBURATOR ASS'Y

13201-20610

Unavailable

2

LH CARBURATOR ASS'Y | Includes Item(s) 3 - 31

13202-20610

Unavailable

3

DRAIN PLUG

13247-20010

Unavailable

4

DRAIN PLUG GASKET

13249-05010

$1.98

5

FLOAT CHAMBER GASKET

13251-20010

Unavailable

6

CARBURETOR O RING | D:2.4

13311-20010

Unavailable

7

CARBURATOR CLIP BOLT

13323-03010

Unavailable

8

CARBURATOR CLIP NUT

13324-03010

Unavailable

9

MAIN JET | #72.5

09491-72007

Unavailable

9

MAIN JET | #70 OPT

09491-70007

Unavailable

9

MAIN JET | #75

09491-75006

Unavailable

10

PILOT JET | #20

09492-20003

Unavailable

11

FLOAT COMP.

13252-20010

Unavailable

12

PILOT AIR SCREW SPRING

13268-01010

$5.28

13

PILOT AIR ADJUSTING SCREW

13269-01010

$14.20

14

NEEDLE VALVE ASS'Y

13370-20010

Unavailable

15

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

16

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

17

THROTTLE VALVE | C.A.:2.5

13551-20010

Unavailable

18

THROTTLE VALVE SPRING

13573-09110

Unavailable

19

THROTTLE STOP ROD

13296-20010

Unavailable

20

JET NEEDLE | 4F13

13383-20610

Unavailable

21

E RING This part replaces 13394-12110.

13394-40D00

$5.43

22

THROTTLE VALVE SPRING

13581-09110

Unavailable

23

MAXING CHAMBER CAP

13265-20010

Unavailable

24

THROTTLE STOP SPRING

13268-03110

$5.45

25

THROTTLE ADJUSTER

13267-09210

Unavailable

26

COTTER PIN

04111-12068

Unavailable

27

CABLE ADJUSTER LOCK NUT

13661-03010

$5.67

28

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

29

CABLE ADJUSTER CAP

13681-09210

Unavailable

30

STARTER ROD SCREW

13429-15010

Unavailable

31

BOOST HOSE | L:300

44390-20050

Unavailable

32

STARTER ROD

13425-20010

Unavailable

33

COTTER PIN

04111-12068

Unavailable
