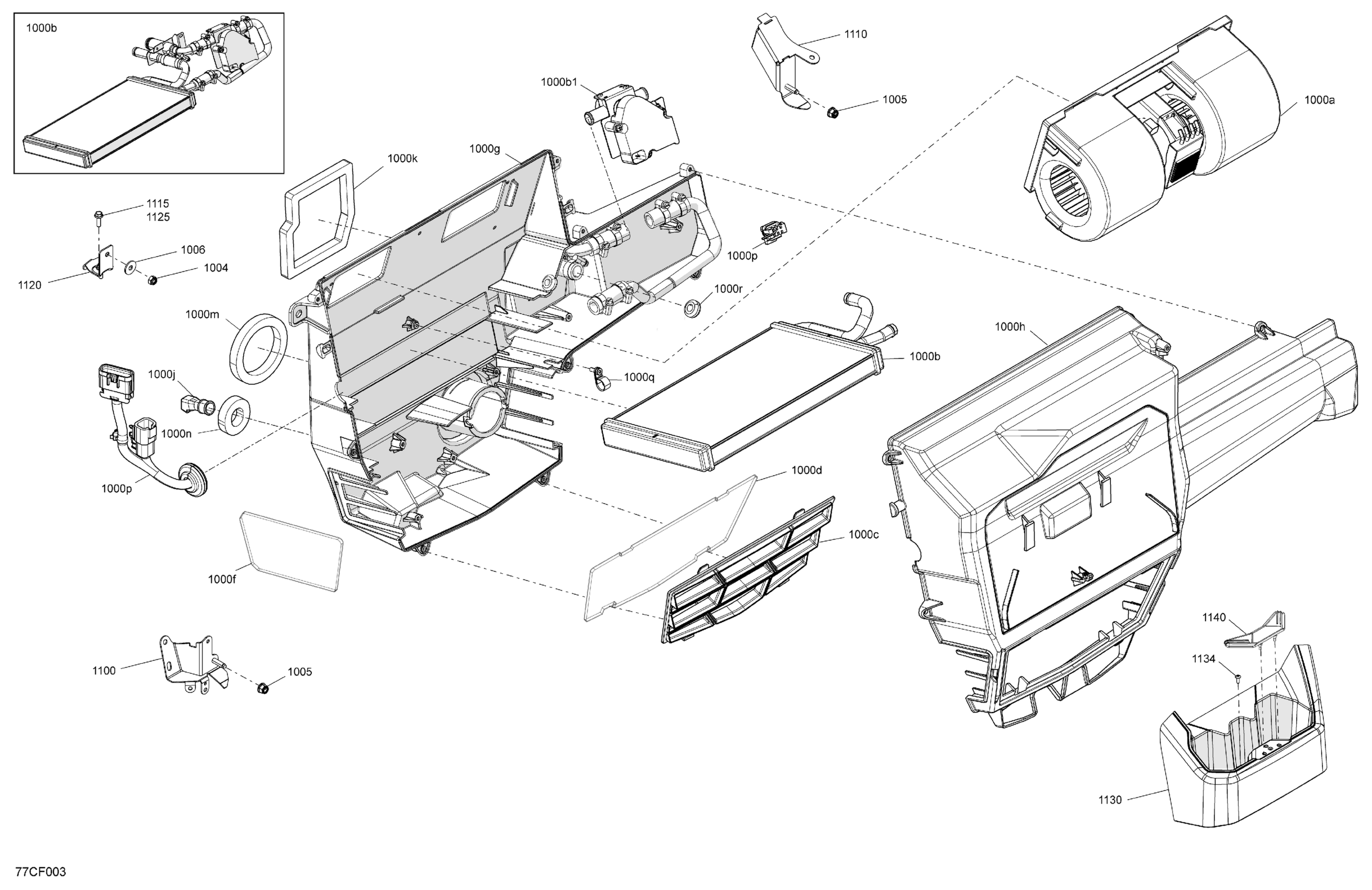

Can-Am Defender - HD9 - DPS CAB - 8UTD - Compass Green - 62" Width, 2026 Enclosure Cab - Air Conditioning Unit Diagram

Description

Price

1000a

Fan

520001536

$423.99

1000b

Heater Coil | Includes 1000b to 1000b1

705800729

$667.49

1000b1

Valve Ass'y

705800487

$309.99

1000c

Grille Unit

705800453

$12.49

1000d

Air Filter

705800440

$48.99

1000f

Air Filter

705800430

$35.99

1000g

Front Cover

705800448

$139.99

1000h

Rear Cover

705800384

$109.99

1000j

Drain Valve

705800809

$6.19

1000k

Self Adhesive Weather Strip

705800494

$12.99

1000m

Self Adhesive Weather Strip

705800495

$12.99

1000n

Self Adhesive Weather Strip

705800496

$7.69

1000p

Heater Unit Wiring Harness

705800451

$119.99

1000q

Mounting Clip | Not Shown

715900670

$9.06

1000r

Grommet 5/8'' | Not Shown

520001676

$7.69

1000s

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

1004

Hex. Elastic Stop Nut M8

232581414

$0.56

1005

Hex. Flange Elastic Nut M8

233281414

$1.47

1006

Flat Washer 8 mm

234082410

$1.47

1100

LH Upper Console Support

705801110

Unavailable

1110

RH Upper Console Support

705801112

Unavailable

1115

Hex. Flange Screw M6 X 20

207662044

$2.00

1120

Lower Console Support

705801148

Unavailable

1125

Hex. Flange Screw M6 X 20

207662044

$2.00

1130

Cup Holder

705800452

$39.99

1134

Torx Truss Screw K40 X 12

250000577

$2.11

1140

Cup Retainer

707900036

$6.89
