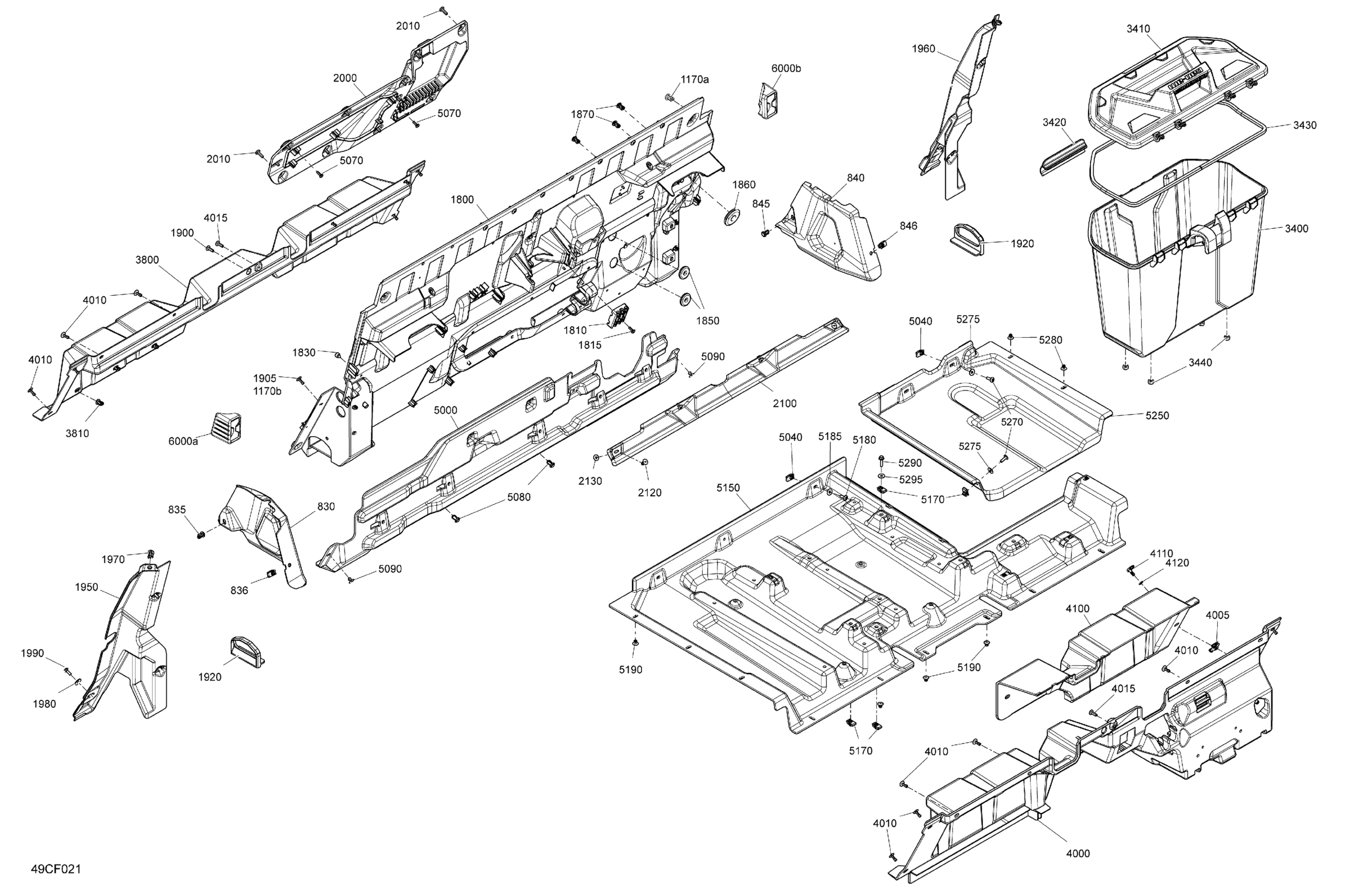

Can-Am Traxter PRO - HD10 - XU - 8VTB - Stealth Black - 64" Width, 2026 Cab Interior - Back Wall Diagram

#

Description
Price

830

LH Lower Panel

707901002

$82.99

835

Torx Truss M8 X 25

250000874

$2.11

836

Panel Nut M6 X 1.0

250100198

$2.11

840

RH Lower Panel

707901003

$82.99

845

Torx Truss M8 X 25

250000874

$2.11

846

Panel Nut M6 X 1.0

250100198

$2.11

1800

Rear Upper Cab Panel Ass'y | Includes 1800 to 1800f

715008410

$204.99

1810

Hose Support

707900788

$0.92

1815

Torx Screw K50 X 16

250000720

$1.69

1830

Rubber Bumper

293830005

$8.09

1850

Grommet

293720119

$4.19

1860

Grommet

293720119

$4.19

1870

Tuflok Plastic Rivet

293150230

$1.47

1900

Torx Screw M6 X 20

250000722

$1.68

1905

Black, Ornit Rivet 3/16 X ,800

293150306

$1.15

1920

Panel Trim

707900774

$4.29

1950

LH Upper Deflector

707900766

$17.49

1960

RH Upper Deflector

707900767

$17.49

1970

Tuflok Plastic Rivet

293150230

$1.47

1980

Stainless Steel Flat Washer

234062670

$2.11

1990

Torx Screw Truss Head K50X20 T20

250000760

$2.11

2000

Rear Access Cover

707900742

$83.99

2010

Torx Screw M6 X 20

250000712

$2.11

2100

Rear Deflector

707900795

$86.99

2120

Black, Ornit Rivet 3/16 X ,800

293150306

$1.15

2130

Washer M5

250200025

$0.74

3400

Storage Box

715003314

$106.49

3410

Storage Box

715003314

$106.49

3420

Clip | Outlander Max

269501945

$15.89

3430

Neoprene Seal

293250453

$19.49

3440

Rubber Bumper

293830005

$8.09

3800

Rear Panel

707900722

$204.99

3810

Tuflok Plastic Rivet

293150230

$1.47

4000

Lower Rear Cab Panel

707901242

$219.99

4005

Quarter Turn Nut

705002651

$4.76

4010

Black, Ornit Rivet 3/16 X ,800

293150306

$1.15

4015

Torx Screw M6 X 20

250000722

$1.68

4100

Battery Cover

707900743

$90.99

4110

Quarter Turn Screw

705002649

$15.87

4120

Washer

708400286

$3.99

5000

Front Upper Box Panel

707900800

$219.99

5040

Panel Nut M6 X 1.0

250100198

$2.11

5070

Torx Screw K50 X 16

250000720

$1.69

5080

Tuflok Plastic Rivet

293150230

$1.47

5090

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

5150

LH Upper Box Panel

707901044

$214.99

5170

Panel Nut M6 X 1.0

250100198

$2.11

5180

Torx Screw M6 X 20

250000722

$1.68

5185

Stainless Steel Flat Washer

234062670

$2.11

5190

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

5250

RH Upper Box Panel

707900721

$219.99

5270

Torx Screw M6 X 20

250000722

$1.68

5275

Stainless Steel Flat Washer

234062670

$2.11

5280

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

5290

Hex. Flange Screw M6 X 25

207562544

$1.69

5295

Stainless Steel Flat Washer

234062670

$2.11

6000a

LH Cover

707901045

$3.48

6000b

RH Cover

707901046

$3.48

1170a

Tuflok Plastic Rivet

293150230

$1.47

1170b

Black, Ornit Rivet 3/16 X ,800

293150306

$1.15

1170c

Black, Pop Rivet 3/16 X ,425

293150291

$0.56
