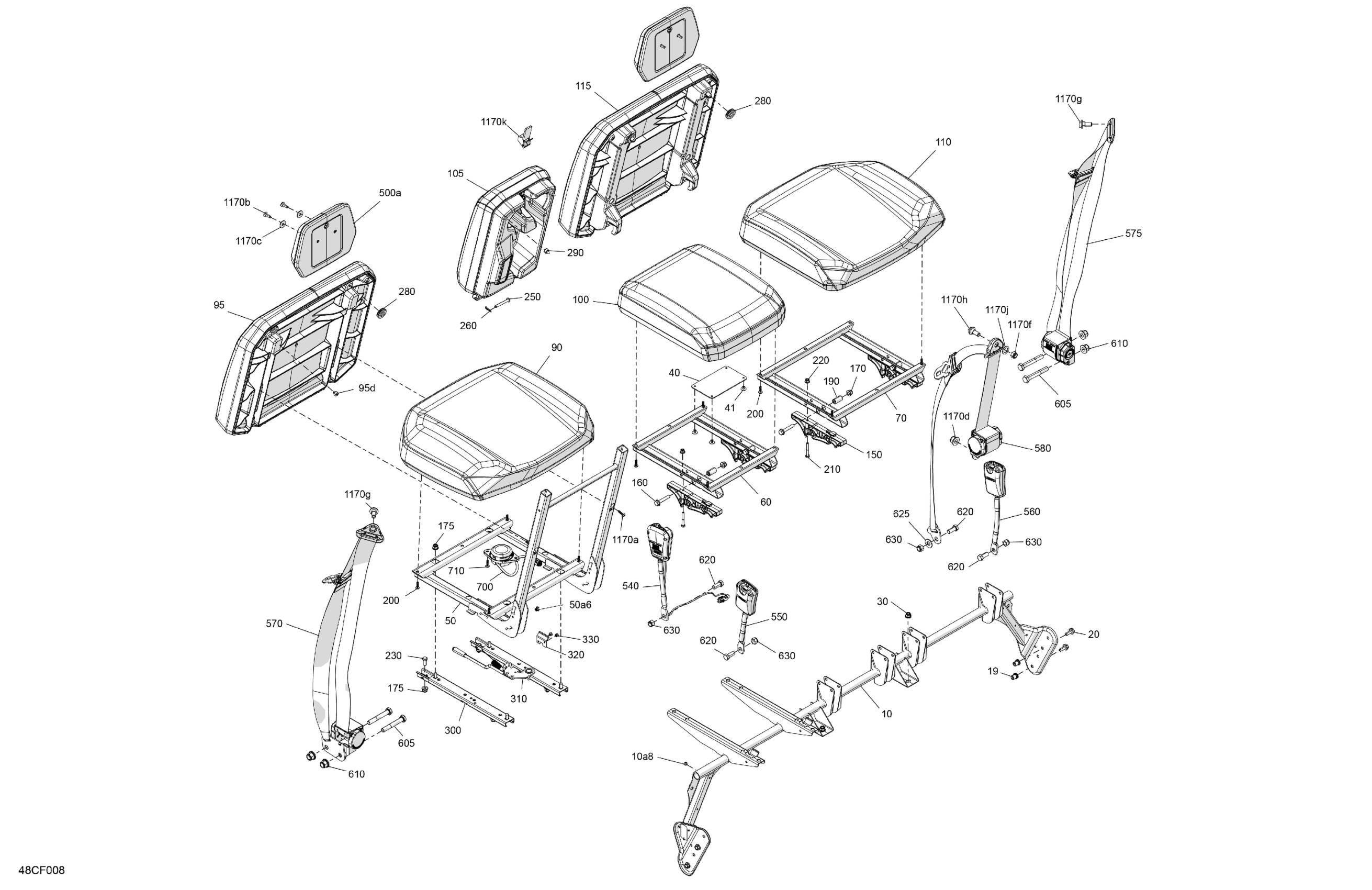

Can-Am Traxter PRO - HD10 - XU - 8VTB - Stealth Black - 64" Width, 2026 Body - Seat Diagram

#

Description
Price

10

Seat Support | Includes 10 to 10a8

708004118

$104.99

10a8

Pop Rivet 3/16 X ,425

293150293

$0.26

19

Insert Half Hex Body M8 x 1.25

293450307

$1.97

20

Hex Screw Washer Head M8 X 20

207582054

$2.61

30

Hex. Flange Elastic Nut M8

233281414

$1.14

40

Seat Plate

708002511

$10.55

41

Black, Pop Rivet 3/16 X ,425

293150291

$0.52

50

Operator Seat Member | Includes 50 to 50a7

708001723

$296.24

50a6

Pop Rivet 3/16 X ,425

293150293

$0.26

60

Mid Seat Member

708002815

$182.81

70

Passenger Seat Member

708002821

$182.81

90

LH Cushion Ass'y

708002481

$223.85

95

Backrest Ass'y | Includes 130 to 130d

708001930

$349.99

95d

Rubber Bumper

293830005

$5.33

100

Central Cushion Ass'y

708001928

$223.85

105

Backrest Ass'y

708003157

$349.99

110

RH Cushion Ass'y

708001926

$255.94

115

Backrest Ass'y

708001995

$349.99

150

Seat Base Pivot

708002581

$9.33

160

Hex. Flange Screw M8 X 45

207684544

$3.57

170

Hex. Flange Elastic Nut M8

233281414

$1.14

175

Hex. Flange Elastic Nut M8

233281414

$1.14

190

Bushing

708003749

$2.85

200

Torx Screw Truss Head K50X20 T20

250000760

$1.74

210

Hex. Screw M6 X 45

207064544

$1.96

220

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

230

Hex. Screw M8 X 20

207182044

$0.61

250

Pin

250400069

$2.88

260

Hairpin Cotter

269800431

$0.97

280

Grommet

517303756

$3.15

290

Rubber Bumper

293830005

$5.33

300

LH Seat Rail

708003314

$52.99

310

RH Seat Rail

708003315

$35.99

320

Seat Stopper

708003672

$2.59

330

Pop Rivet 3/16 X ,425

293150293

$0.26

500a

Headrest

708002853

$52.21

540

Driver Buckle

708002331

$70.99

550

Middle Buckle

708003163

$60.42

560

Passenger Buckle

708002329

$60.42

570

LH Safety Belt

708003082

$219.37

575

RH Safety Belt

708003200

$219.37

580

Central Safety Belt

708003688

$219.37

605

Hex. Screw M12 X 80

207028046

$3.25

610

Elastic Flange Nut M12

233221416

$2.33

620

Hex. Cap Screw 7/16'' X 1''

250001316

$1.79

625

Flat Washer M12

250200102

$1.74

630

Lock Nut Nylon 7/16

250100183

$1.64

700

Passenger Detection Switch

710008103

$70.12

710

Torx Screw Truss Head K50X20 T20

250000760

$1.74

1170a

Torx Screw Truss Head K50X20 T20

250000760

$1.74

1170b

Torx Screw M6 X 20

250000722

$1.34

1170c

Flat Washer M6.6 X 22

250200162

$1.91

1170d

Elastic Flange Nut M12

233221416

$2.33

1170f

Lock Nut Nylon 7/16

250100183

$1.64

1170g

Safety Belt screw

708002504

$4.76

1170h

Safety Belt Screw

708000890

$3.79

1170j

Position Washer

708000891

$0.97

1170k

Latch

269501487

$12.97
