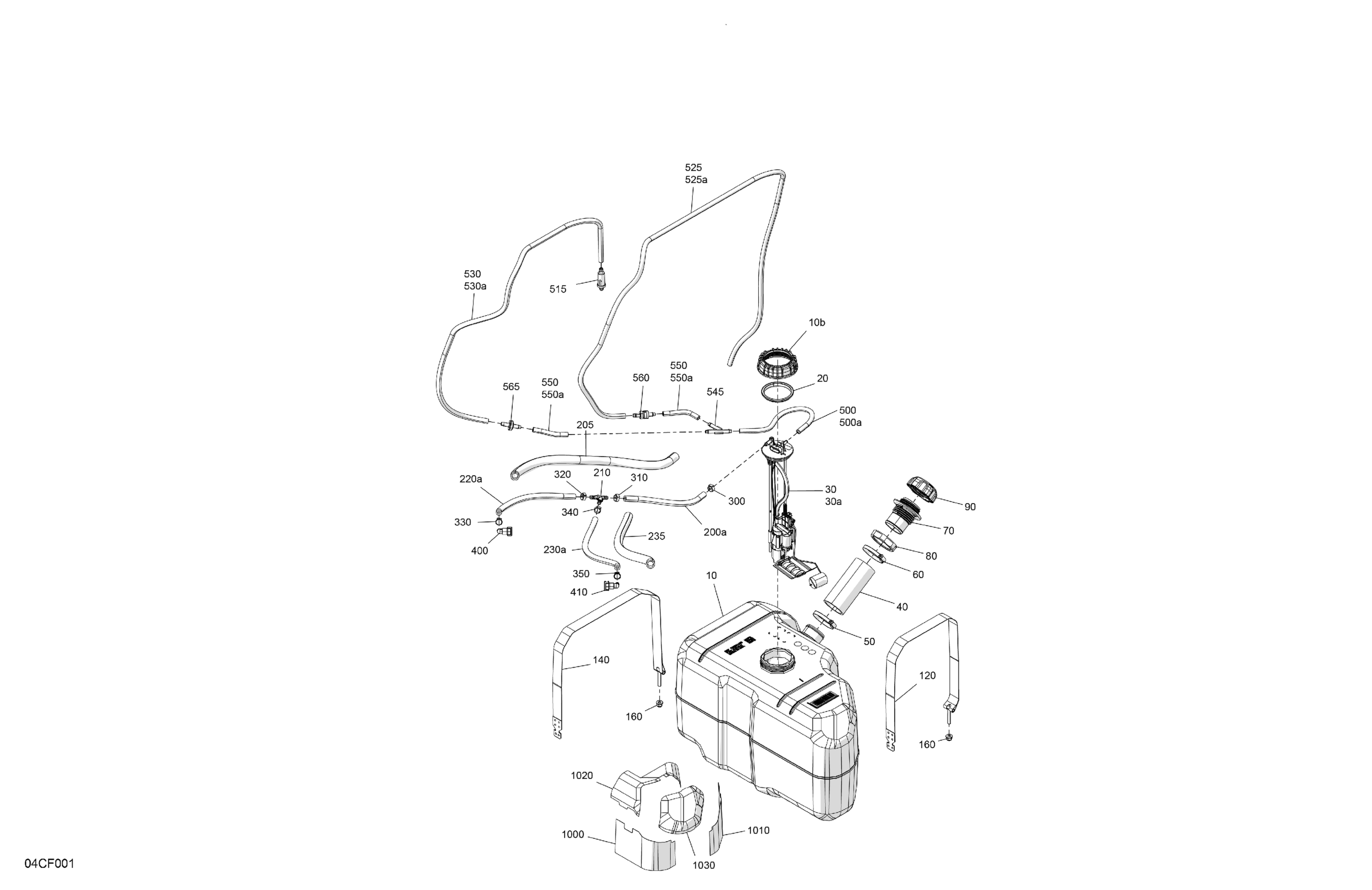

Can-Am Defender - HD9 - BASE - 6WTA - Compass Green - 62" Width, 2026 Engine - Fuel Diagram

Fuel Tank Ass'y | Includes 10 to 10b

709001432

$240.27

Fuel Pump Module Nut

709000328

$12.43

Seal

709000208

$12.16

Fuel Pump | Includes 30 to 30a

709001189

$323.94

Prefilter Fuel Pump Kit 86mm Long

715900322

$68.63

Filler Neck Hose

709001698

$28.33

Norma Clamp

293650081

$11.33

Norma Clamp

293650081

$11.33

Filler Neck

709000867

$14.33

Fuel Filler Neck Nut

293600206

$11.51

Fuel Cap

709000868

$29.07

Retaining Strap

709001291

$35.79

Retaining Strap

709001292

$35.79

Hex. Flange Elastic Nut M8

233281414

$1.31

Hose 7,94 MM ID

219704621

$81.31

Tubing 16 Mm 1000Mm Long

219704408

$7.15

Y Fitting

709001329

$9.85

Hose 7,94 MM ID

219704621

$81.31

Hose 7,94 MM ID

219704621

$81.31

Tubing 16 Mm 1000Mm Long

219704408

$7.15

Crimp Clamp, 15.3-706R

293650047

$3.03

Crimp Clamp, 15.3-706R

293650047

$3.03

Crimp Clamp, 15.3-706R

293650047

$3.03

Crimp Clamp, 15.3-706R

293650047

$3.03

Crimp Clamp, 15.3-706R

293650047

$3.03

Crimp Clamp, 15.3-706R

293650047

$3.03

Quick Disconnect

275500921

$14.48

Quick Disconnect

275500921

$14.48

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

Not Available As Spare Parts

XXX

Unavailable

Filter

709001120

$7.48

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

Not Available As Spare Parts

XXX

Unavailable

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

Not Available As Spare Parts

XXX

Unavailable

Y-Fitting

293710059

$9.40

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

Not Available As Spare Parts

XXX

Unavailable

Check Valve

513034263

$29.07

Check Valve This part replaces 275500087.

275501246

Unavailable

Heat Shield

707002670

$30.57

Heat Shield

707002671

$30.57

Heat Shield

707002673

$30.57

Heat Shield

707002719

$29.82
