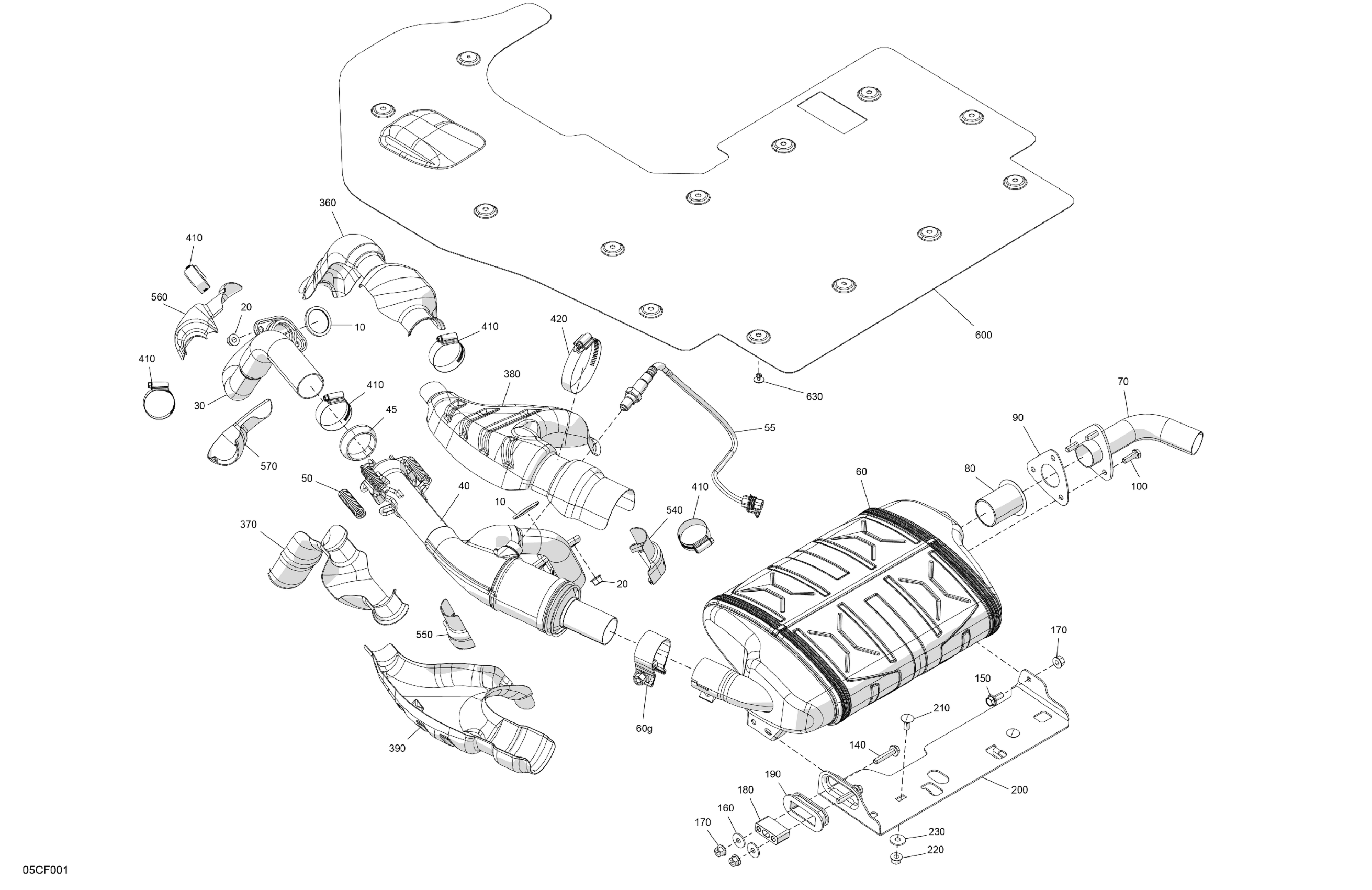

Can-Am Defender PRO - HD10 - DPS - 6ATC - Compass Green - 64" Width, 2026 Engine - Exhaust Diagram

Description

Price

Gasket

707600317

$10.52

Hex. Flange Nut M8

233081416

$1.63

Front Exhaust Pipe

707602039

$166.12

Rear Exhaust Pipe

707603331

$572.28

Exhaust Gasket

707601033

$13.29

Spring

707601834

$6.20

Oxygen Sensor

707600872

$115.67

Exhaust Muffler Ass'y | Includes 60 to 60g

707603495

$812.28

60g

Exhaust Pipe Clamp

293650228

$11.98

Exhaust Pipe Out

707603105

$92.28

Spark Arrestor

707601803

$50.74

Gasket

707602731

$10.98

100

Hex. Screw Cap DIN.933

207182546

$0.83

140

Hex. Flange Screw M8 X 40

207684044

$1.25

150

Hex. Flange Screw M8 X 20

207682044

$0.92

160

Flat Washer 8 mm

234082410

$1.11

170

Hex. Flange Nut M8

233081416

$1.63

180

Muffler Stopper

707603214

$12.91

190

Rubber Bumper

707603330

$14.37

200

Exhaust Support

707603494

$27.66

210

Carriage Bolt, M8 X 20

207782044

$1.56

220

Hex. Flange Nut M8

233081416

$1.63

230

Flat Washer 8 mm

234082410

$1.11

360

Front Heat Shield

707602666

$64.58

370

Rear Heat Shield

707602667

$50.74

380

Upper Heat Shield

707602668

$83.05

390

Lower Heat Shield

707602669

$64.58

410

Murray Gear Clamp

293650305

$12.91

420

Tridon Gear Clamp

293650250

$13.83

540

Upper Rear Heat Shield

707602670

$50.74

550

Lower Rear Heat Shield

707602671

$50.74

560

Front Upper Heat Shield

707602672

$50.74

570

Lower Front Heat Shield

707602673

$50.74

600

Heat Shield

707603151

$267.66

630

Black, Pop Rivet 3/16 X ,550

293150292

$0.86
