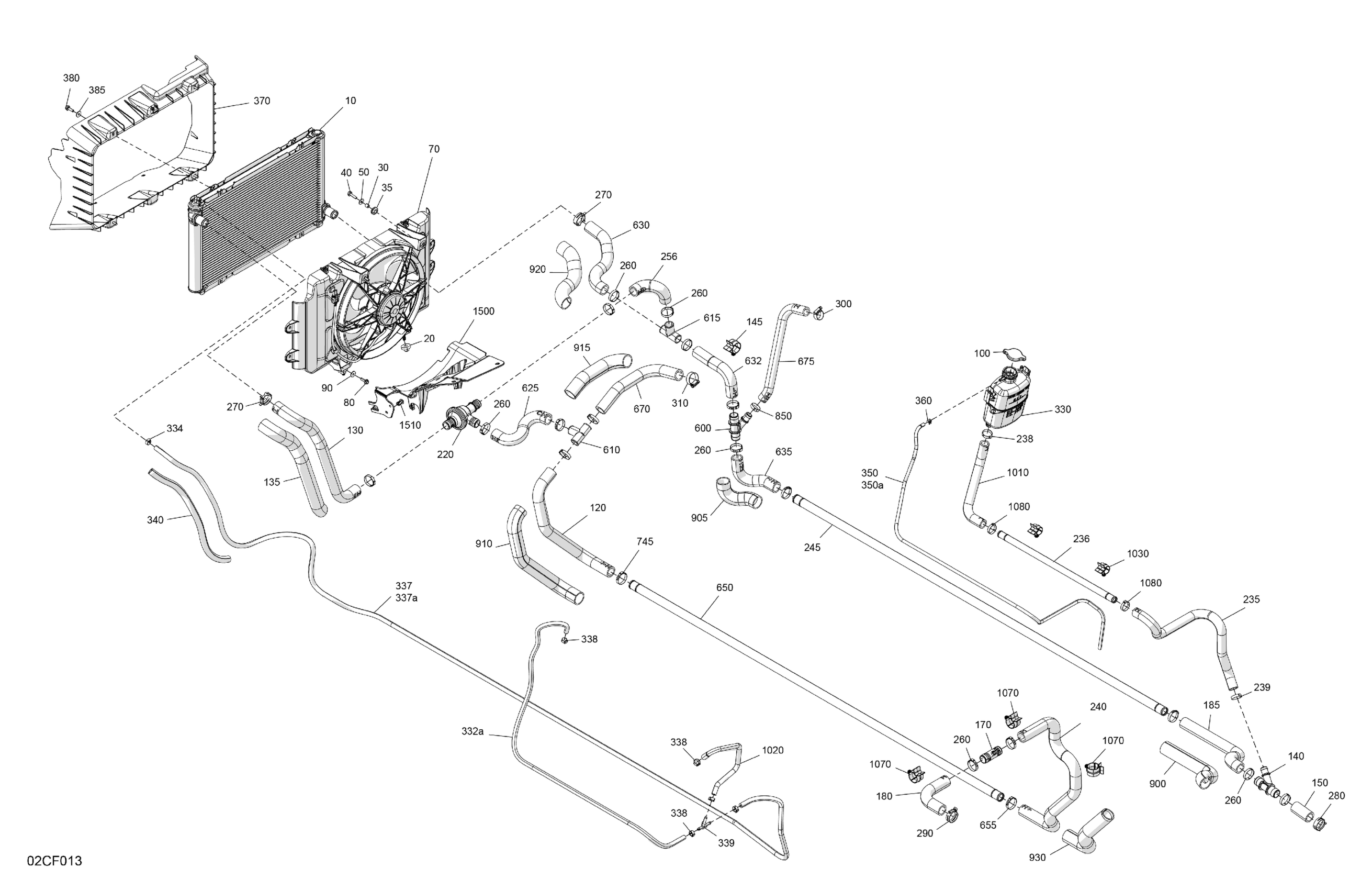

Can-Am Traxter PRO - HD10 - XU - 8VTB - Stealth Black - 64" Width, 2026 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200951

$346.24

20

Grommet

709200285

$7.09

30

Bushing

293900105

$6.07

35

Overmolded Grommet

293720130

$4.25

40

Hex. Flange Screw M6 X 25

207662544

$0.53

50

Flat Washer 6 mm

234062410

$0.64

70

Fan Ass'y

709200534

$305.19

80

Hex. Flange Screw M6 X 20

207662044

$1.66

90

Flat Washer 6 mm

234062410

$0.64

100

Radiator Pressure Cap

709200207

$18.82

120

Formed T Fitting Hose

709201438

$13.39

130

Formed Radiator Hose IN

709201443

Unavailable

135

Tubing 35 MM 1000MM Long

219704428

$8.57

140

Y Fitting

509001200

$5.10

145

Retainer

275500590

$7.18

150

Hose

709200299

$6.69

170

T-Fitting

509000510

$11.18

180

Formed Engine Hose OUT

709201428

$10.51

185

Formed Engine Hose IN

709201441

$38.03

220

Thermostat Housing

709200986

$89.52

235

Formed Coolant Tank Hose OUT

709201432

$32.81

236

Expansion Tank Tube

709200834

$17.88

238

Oetiker Gear Clamp

293650165

$4.32

239

Oetiker Gear Clamp

293650165

$4.32

240

Formed Thermostat Hose IN

709201433

$32.81

245

Heater Tubing

709200658

$13.58

256

Formed Thermostat Hose OUT

709201439

Unavailable

260

Crimp Clamp

293650332

$4.90

270

Norma Spring Clamp

293650166

$4.15

280

Norma Spring Clamp

293650166

$4.15

290

Norma Spring Clamp

293650166

$4.15

300

Aba Gear Clamp, 26-38 MM

509000443

$5.64

310

Aba Gear Clamp, 26-38 MM

509000443

$5.64

330

Coolant Tank

709201323

$72.36

332a

Hose 6,35 Mm Id 4000Mm Long

219704547

$10.00

334

Oetiker Clamp

293650042

$1.40

337

Hose 6,35 Mm Id 4000Mm Long

219704547

$10.00

337a

Not Available As Spare Parts

XXX

Unavailable

338

Crimp Clamp, 15.3-706R

293650047

$2.64

339

Y-Fitting

293710059

$8.19

340

Tubing 16 Mm 1000Mm Long

219704408

$6.23

350

Polyurethane Hose 10000Mm Long

219704410

$46.12

350a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

360

Spring Clamp

414554800

$0.81

370

Front Radiator Deflector Ass'y

715008419

$49.22

380

Hex. Flange Screw M6 X 20

207662044

$1.66

385

Flat Washer 6 mm

234062410

$0.64

600

Y Fitting

509001200

$5.10

610

T-Fitting

509001313

$14.90

615

T-Fitting

509001313

$14.90

625

Formed Thermostat Hose IN

709201434

$14.91

630

Formed Radiator Hose OUT

709201440

Unavailable

632

Formed Radiator Hose OUT

709201437

$10.51

635

Formed Y Fitting Hose

709201431

$13.39

650

Heater Tubing

709200658

$13.58

655

Crimp Clamp

293650332

$4.90

670

Formed Radiator Hose IN

709201435

$13.39

675

Formed Radiator Hose OUT

709201436

$13.39

745

Crimp Clamp

293650332

$4.90

850

Oetiker Gear Clamp

293650165

$4.32

900

Tubing 35 MM 1000MM Long

219704428

$8.57

905

Tubing 35 MM 1000MM Long

219704428

$8.57

910

Tubing 35 MM 1000MM Long

219704428

$8.57

915

Tubing 35 MM 1000MM Long

219704428

$8.57

920

Tubing 35 MM 1000MM Long

219704428

$8.57

930

Tubing 35 MM 1000MM Long

219704428

$8.57

1010

Formed Coolant Tank Hose OUT

709201429

$14.43

1020

Formed T Fitting Hose

709201426

$19.37

1030

Cable Retainer

275500527

$2.68

1070

Retainer

275500590

$7.18

1080

Oetiker Gear Clamp

293650165

$4.32

1500

Front Air Deflector

709201036

$96.99

1510

Tuflok Plastic Rivet

293150230

$1.21
