Partiron

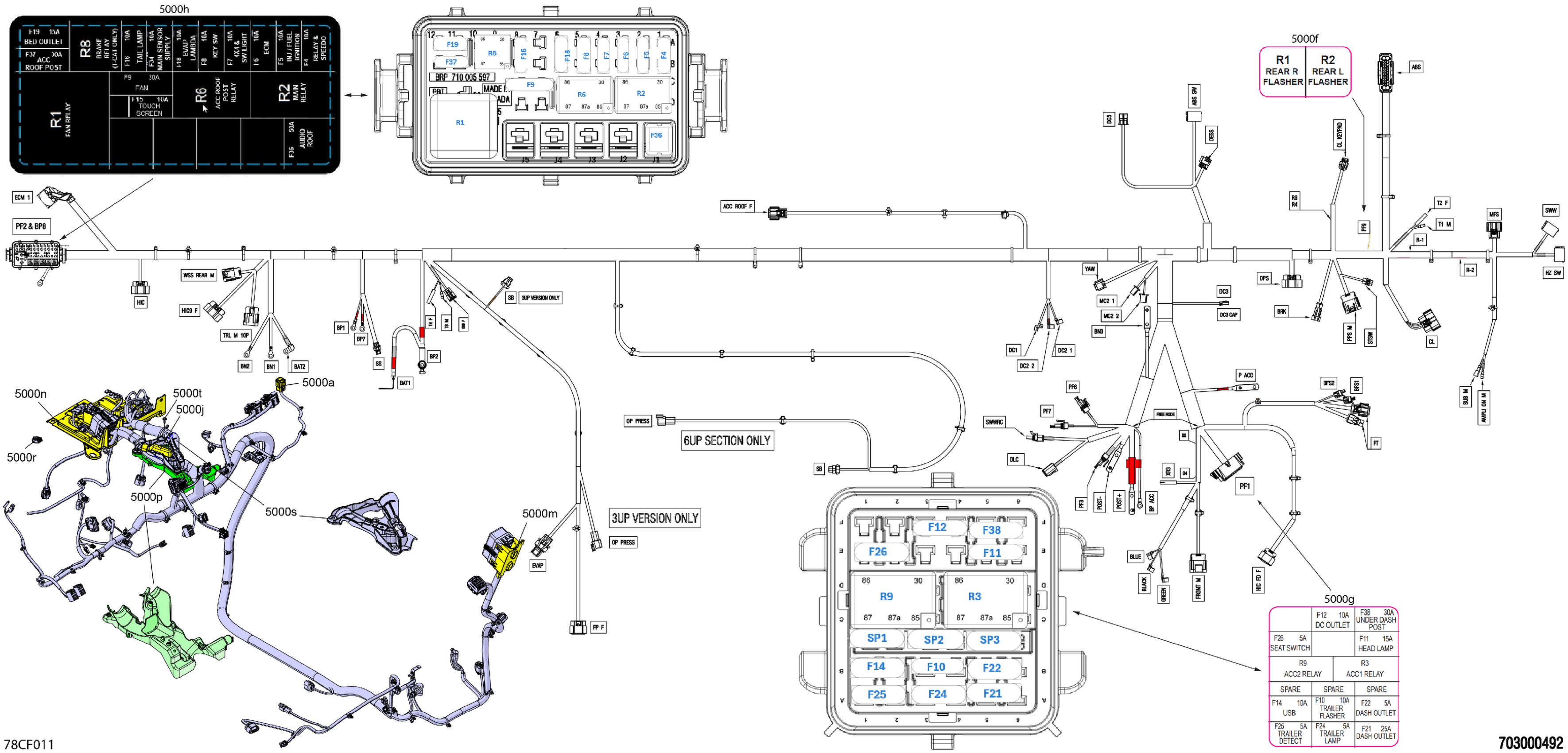

Can-Am Traxter MAX - HD11 - XU - 6BTA - Stealth Black - 65" Width, 2026 Electric - Main Harness - 710009331 Diagram

#

Description
Price

5000

Main Wiring Harness

710009331

$1,315.35

5000a

Connector Female 4 Cavities

278004473

$14.75

5000c

Molex Cavitie Plug # 19431 | Not Shown

278004475

$7.60

5000f

Decal

710011271

$13.37

5000g

Decal

710009638

$13.37

5000h

Decal

710009639

$13.37

5000j

Battery Cable Cap

710009658

$2.75

5000m

Fuse Holder Support

710004472

$9.29

5000n

Wiring Harness Support

710009443

$18.43

5000p

Fuse Holder Support

710009301

$22.28

5000q

Black, Dart

293730006

$0.81

5000r

Housing Plug 5 Pins

710010578

$2.75

5000s

Harness Support Post

710010884

$18.43

5000t

Screw PT Type K-50 X 16

250000959

$1.74

ABS

Cover With CPA

710008720

$18.43

ABS

Connector Bosch Female 46 Cavities

710008719

$46.12

ABS

Housing Fill Plug 2.8

710008725

$24.58

ABS

Plug 1.2

710008730

$8.29

ABS

Connector Seal Bosch1.2

710008729

$46.12

ABS

Connector Seal Bosch 4.8

710008722

$46.12

ABS

Bosch Female Terminal 4.8

710008721

$7.37

ABS

Bosch Female Terminal 1.2

710008726

$7.37

ABS SW

Housing

710002000

$5.86

ABS SW

Female Terminal

710005491

$1.54

AMPLI ON M

Insulated Sheath

278001008

$3.20

AMPLI ON M

Female Terminal

278002261

$6.20

BAT2

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

Unavailable

BFS1

Female Housing, 2 Circuits

515177192

$6.32

BFS1

Lock

710001152

$3.48

BFS1

Wire Seal

710001163

$5.10

BFS1

Female Terminal

710001164

$5.92

BFS2

Female Housing, 2 Circuits

515177192

$6.32

BFS2

Lock

710001152

$3.48

BFS2

Wire Seal

710001163

$5.10

BFS2

Female Terminal

710001164

$5.92

BLACK

Female Terminal

409010300

$4.12

BLUE

Female Terminal

409010300

$4.12

BN1

Terminal

710000913

$5.46

BN2

Terminal

710000913

$5.46

BN3

Terminal

710008716

$23.05

BP ACC

Open Barrel

278000992

$1.79

BP1

Open Barrel

278000992

$1.79

BP2

Cap Battery Cable

710007033

$6.45

BP7

Open Barrel Terminal

278001392

$4.12

BP8

Terminal

515177996

$3.68

BRK

Male Terminal Housing, 2 Circuits

409209400

$14.97

BRK

Wire Seal

515176621

$7.00

BRK

Male Terminal

515176164

$6.43

CL

Female Housing 20 Circuits

278002858

$20.12

CL

Sealing Cap

278002860

$1.42

CL

Female Terminal

515178018

$0.78

CL

Female Terminal 22 AWG

515178349

$1.82

CL KEYPAD

Female Terminal Housing 3 Circuits

278002387

$7.24

CL KEYPAD

Lock

710005868

$3.68

CL KEYPAD

Wire Seal

710001163

$5.10

CL KEYPAD

Female Terminal

710001164

$5.92

D2

Diode

409012700

$10.83

D4

Diode

409012700

$10.83

D5

Diode

409012700

$10.83

DC1

Housing

710005373

$4.62

DC1

Terminal

710005518

$1.37

DC2 1

Female Terminal

409010300

$4.12

DC2 2

Female Terminal

409010300

$4.12

DC3

Female Housing, 2 Circuits

515175658

$15.35

DC3

Female Terminal

515175231

$4.12

DC3 CAP

Male Housing, 2 Circuits

710000667

$7.48

DC5

Housing Plug 5 Pins

710010578

$2.75

DC5

Terminal

710010797

$8.29

DESS

Female Delphi Connector 5 Cavities

710007151

$13.62

DESS

Lock

710001222

$1.68

DESS

Lock

710007243

$4.60

DESS

Wire Seal

710001163

$5.10

DESS

Female Terminal

710001164

$5.92

DLC

Female Housing 6 Circuits

710002706

$16.22

DLC

Lock

710002705

$3.61

DLC

Female Terminal

710005438

$4.00

DLC

Female Terminal

710005439

$4.28

DPS

Female Housing

710004989

$7.22

DPS

Lock | PACKARD 15430900

710005098

$1.54

DPS

Lock

710001222

$1.68

DPS

Plug

710002075

$2.47

DPS

Wire Seal

278002186

$4.51

DPS

Seal

710003153

$0.94

DPS

Female Terminal

278002187

$5.04

DPS

Terminal

710001873

$2.02

ECM1

Cover

515178602

$4.80

ECM1

Housing 56 Circuits

515178618

Unavailable

ECM1

Plate

515178604

$3.63

ECM1

Plug

515178599

$2.60

ECM1

Plate

515178603

$3.63

ECM1

Terminal

515178596

$3.30

ECM1

Terminal

515178598

$3.21

ECM1

Terminal

515178666

$4.60

ECM1

Terminal

515178597

$12.65

EVAP

Female Housing, 2 Circuits

515177192

$6.32

EVAP

Lock

710001152

$3.48

EVAP

Wire Seal

710001163

$5.10

EVAP

Female Terminal

710001164

$5.92

FL-1

Fuse Link 41-50AMP

715002538

$23.05

FL-2

Fuse Link 41-50AMP

715002538

$23.05

FP F

Male Housing, 4 Circuits

278002185

$5.86

FP F

Lock

710001222

$1.68

FP F

Lock

710006214

$0.75

FP F

Wire Seal

278002186

$4.51

FP F

Seal

710003153

$0.94

FP F

Female Terminal

278002187

$5.04

FP F

Terminal

710001873

$2.02

FRONT M

Housing

710001231

$12.05

FRONT M

Holder | XMR

710002006

$3.68

FRONT M

Lock 6 Positions

710005296

$0.77

FRONT M

Seal

710001233

$2.55

FRONT M

Seal Wire

710001332

$2.72

FRONT M

Terminal

710001224

$3.02

FRONT M

Terminal

710001223

$3.02

FT

Male Connector, 2 Circuits

278000220

$11.02

FT

Wire Seal

710000048

$5.10

GREEN

Female Terminal

409010300

$4.12

HIC

Female Housing, 12 Circuits

710001930

$13.94

HIC

Lock

710006333

$5.91

HIC

Lock

710001222

$1.68

HIC

Cap

710001225

$7.27

HIC

Seal

710001233

$2.55

HIC

Seal Wire

710001332

$2.72

HIC

Terminal

710001229

$3.02

HIC

Terminal

710001228

$2.72

HIC FD F

Housing

710001951

$12.91

HIC FD F

Lock

710001222

$1.68

HIC FD F

Lock

710006361

$0.75

HIC FD F

Cap

710001225

$7.27

HIC FD F

Seal

710001233

$2.55

HIC FD F

Terminal

710001229

$3.02

HIC9 F

Female Housing

710004989

$7.22

HIC9 F

Lock | PACKARD 15430900

710005098

$1.54

HIC9 F

Lock

710001222

$1.68

HIC9 F

Plug

710002075

$2.47

HIC9 F

Seal

710003153

$0.94

HIC9 F

Terminal

710001873

$2.02

HIC9 F

Terminal

710001869

$2.75

HZ SW

Housing

710002000

$5.86

HZ SW

Terminal

710003047

$3.68

HZ SW

Female Terminal

710005491

$1.54

MC2 1

Female Housing

710004047

$13.83

MC2 1

Terminal

710002315

$4.60

MC2 2

Female Housing

710004048

$14.75

MC2 2

Terminal

710002315

$4.60

MFS

12 Circuits Female Housing

515178016

$11.58

MFS

Sealing Cap

278002860

$1.42

MFS

Female Terminal

515178018

$0.78

OP PRES

Male Housing

278002378

$10.91

OP PRES

Clip

710005273

$7.60

OP PRES

Male Lock, 3 Circuits

409207600

$3.02

OP PRES

Male Terminal

710001348

$11.14

P ACC

Battery Cable Cap

710009658

$2.75

P ACC

Terminal | Not Shown

710009721

$3.68

PF1

Fuse Cover

278003553

$3.79

PF1

Fuse Base Ass'y

278003448

$26.62

PF1

Wire Seal

278000216

$2.55

PF1

Seal

293300198

$2.31

PF1

Wire Seal

278000218

$3.48

PF1

Wire Seal

278001065

$6.03

PF1

Wire Seal

710000048

$5.10

PF1

Female Terminal

710000918

$5.10

PF1

Female Terminal

278002578

$0.86

PF1

Female Terminal

515177177

$5.11

PF1 LABEL TCAT

Decal

710009638

$13.37

PF1-F10

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F11

Little Fuse, 15 Ampere

710000745

$6.77

PF1-F12

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F14

Little Fuse, 10 Amperes

710000744

$7.24

PF1-F21

Little Fuse, 25 Ampere

278002389

$4.42

PF1-F22

Little Fuse, 5 Amperes

710000742

$7.24

PF1-F24

Little Fuse, 5 Amperes

710000742

$7.24

PF1-F25

Little Fuse, 5 Amperes

710000742

$7.24

PF1-F26

Little Fuse, 5 Amperes

710000742

$7.24

PF1-F38

Little Fuse, 30 Amperes

710000747

$6.77

PF1-R3

Relay, 30 AMP

515176774

$19.20

PF1-R9

Relay, 30 AMP

515176774

$19.20

PF1-SP1

Little Fuse, 5 Amperes

710000742

$7.24

PF1-SP2

Little Fuse, 10 Amperes

710000744

$7.24

PF1-SP3

Little Fuse, 15 Ampere

710000745

$6.77

PF2

Cover

710007491

$17.66

PF2

Fusebox Ass'y

710005623

$46.12

PF2

Fuse Holder Support

710004472

$9.29

PF2

Cap

710001631

$1.37

PF2

Seal Plug

278002880

$5.43

PF2

PLUG - Call your local BRP dealership

710002633

Unavailable

PF2

Seal

293300198

$2.31

PF2

Wire Seal

278000218

$3.48

PF2

Wire Seal

710000048

$5.10

PF2

Wire Seal

278001065

$6.03

PF2

Seal Joint

710003134

$1.37

PF2

Seal Joint

710003132

$0.85

PF2

Terminal Joint

710001905

$1.83

PF2

Female Terminal

710000890

$3.73

PF2

Female Terminal

710000918

$5.10

PF2

Female Terminal

278002578

$0.86

PF2

Terminal

710001636

$3.98

PF2

F Terminal

710003125

$3.68

PF2

Terminal

710001630

$1.83

PF2

Terminal

710008508

$4.60

PF2 LABEL STD

Decal

710009639

$13.37

PF2 SP1

Little Fuse, 10 Amperes

710000744

$7.24

PF2 SP2

Little Fuse, 10 Amperes

710000744

$7.24

PF2 SP3

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F16

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F18

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F19

Little Fuse, 15 Ampere

710000745

$6.77

PF2-F36

Fuse, 50 AMP

710001048

$5.52

PF2-F37

Little Fuse, 30 Amperes

710000747

$6.77

PF2-F4

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F5

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F6

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F7

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F8

Little Fuse, 10 Amperes

710000744

$7.24

PF2-F9

Fuse

710010192

$55.35

PF2-R1

50 Amps Relay

710003143

$13.83

PF2-R2

Relay, 30 AMP

515176774

$19.20

PF2-R6

Relay, 30 AMP

515176774

$19.20

PF2-R8

Relay

715900824

$16.22

PF3

Fuse Holder

278001325

$8.57

PF3

Female Terminal

710000113

$6.03

PF3-F1

Fuse

710001613

$7.24

PF6

Fuse Holder

278001325

$8.57

PF6

Female Terminal

710000357

$6.03

PF6-F1

Fuse

710001613

$7.24

PF7

Fuse Holder

278001325

$8.57

PF7

Female Terminal

710000357

$6.03

PF7-F1

25 Amp Fuse

278003867

$3.26

PF9

BOX_FUSE - Call your local BRP dealership

710004260

Unavailable

PF9

Lock

710009915

Unavailable

PF9

Seal

278001482

$2.55

PF9

Female Terminal

278002578

$0.86

PF9 LABEL

Decal

710011271

$13.37

PF9-R1

Relay

715900824

$16.22

PF9-R2

Relay

715900824

$16.22

POST-

Terminal | Not Shown

710010076

$3.68

POST+

Terminal | Not Shown

710010076

$3.68

PPS M

Housing

710001231

$12.05

PPS M

Holder | XMR

710002006

$3.68

PPS M

Lock 6 Positions

710005296

$0.77

PPS M

Seal

710001233

$2.55

PPS M

Terminal

710001224

$3.02

R-1

Resistor

710006155

$2.75

R-2

Resistor

710005179

$2.75

SB

Housing

710002177

$3.98

SB

Lock

710002043

$0.85

SB

Seal

278001482

$2.55

SB

Female Terminal

710001134

$6.03

SS

Female Housing, 2 Circuits

515177192

$6.32

SS

Lock

710001152

$3.48

SS

Seal Wire

710001153

$1.79

SS

Female Terminal

710001164

$5.92

STSW

Wire Seal

710000402

$4.42

STSW

Female Terminal

409012100

$3.73

SUB CAP

Male Housing

515175666

$13.05

SUB CAP

Male Lock, 3 Circuits

409207600

$3.02

SUB CAP

Sealing Cap

293000052

$2.55

SUB F

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

SUB F

Female Lock, 3 Circuits

515175676

$5.11

SUB F

Amphenol Female Terminal

710010729

$3.68

SUB M

Housing

515177178

$13.68

SUB M

Housing

710001853

$13.80

SWW

Housing

710002000

$5.86

SWW

Female Terminal

710005491

$1.54

SWWRC

Male Housing, 3 Circuits

278000273

$7.59

SWWRC

Wire Seal

278001065

$6.03

SWWRC

Female Terminal

278000223

$2.55

T1 M

Insulated Sheath

278001008

$3.20

T1 M

Male Terminal

278000230

$3.48

T2 F

Insulated Sheath

278001007

$3.22

T2 F

Female Terminal | DS 650 X

278001009

$2.55

T3 M

Insulated Sheath

278001008

$3.20

T3 M

Male Terminal

278000230

$3.48

T4 F

Insulated Sheath

278001007

$3.22

T4 F

Female Terminal | DS 650 X

278001009

$2.55

TRL M 10P

Housing

710001952

$11.06

TRL M 10P

Holder | XMR

710002006

$3.68

TRL M 10P

Lock

710006361

$0.75

TRL M 10P

Seal

710001233

$2.55

TRL M 10P

Terminal

710001224

$3.02

WSS REAR M

Housing

515177201

$7.55

WSS REAR M

Holder | XMR

710002006

$3.68

WSS REAR M

Lock

710006398

$0.75

WSS REAR M

Seal

710001233

$2.55

WSS REAR M

Terminal

710001224

$3.02

XR3

Insulated Sheath

278000770

$7.60

XR3

Female Terminal

710000421

$5.46

YAW

Housing

710003730

$14.75

YAW

Wire Seal

710006230

$1.37

YAW

Female Terminal

710010230

$8.35
