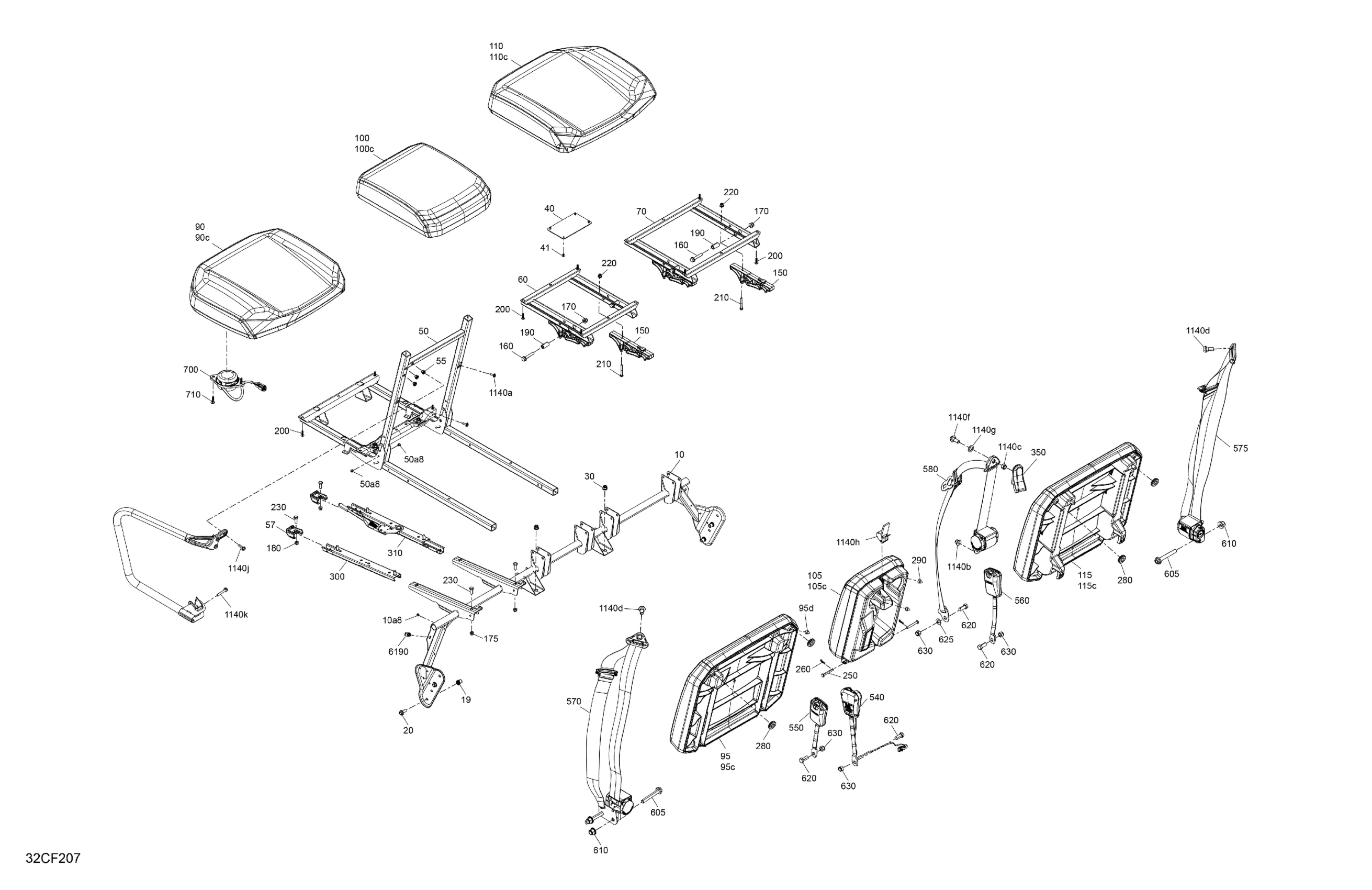

Can-Am Traxter MAX - HD11 - XU - 6BTA - Stealth Black - 65" Width, 2026 Body - Seat - Front Section Diagram

#

Description
Price

10

Seat Support | Includes 10 to 10a8

708003619

$129.99

10a8

Pop Rivet 3/16 X ,425

293150293

$0.35

19

Insert Half Hex Body M8 x 1.25

293450307

$2.69

20

Hex Screw Washer Head M8 X 20

207582054

$3.17

30

Hex. Elastic Flange Nut M8

233281416

$1.48

40

Seat Plate

708002511

$12.99

41

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

50

Driver Seat Base | Includes 50 to 50a8

708004350

$329.99

50a8

Pop Rivet 3/16 X ,425

293150293

$0.35

55

Insert Half Hex Body M6 x 1.0

250100199

$3.19

57

Seat Rail Cap

708004160

$37.99

60

Mid Seat Member

708002815

$204.99

70

Passenger Seat Member

708002821

$204.99

90

LH Cushion Ass'y

708002481

$249.99

90c

Cover

708001925

$99.99

95

Backrest Ass'y | Includes 130 to 130d

708001930

$349.99

95c

Cover

708001931

Unavailable

95d

Rubber Bumper

293830005

$8.09

100

Central Cushion Ass'y

708001928

$249.99

100c

Cover

708001929

$99.99

105

Backrest Ass'y

708003157

$349.99

105c

Cover

708001933

$99.99

110

RH Cushion Ass'y

708001926

$284.99

110c

Cover

708001927

$99.99

115

Backrest Ass'y | Includes 115 to 115c

708003711

$349.99

115c

Cover

708001931

Unavailable

150

Seat Base Pivot

708002581

$9.59

160

Hex. Flange Screw M8 X 45

207684544

$3.80

170

Hex. Elastic Flange Nut M8

233281416

$1.48

175

Hex. Elastic Flange Nut M8

233281416

$1.48

180

Hex. Elastic Flange Nut M8

233281416

$1.48

190

Bushing

708003749

$3.79

200

Torx Screw Truss Head K50X20 T20

250000760

$2.11

210

Hex. Screw M6 X 45

207064544

$2.11

220

Hex. Flange Elastic Nut M6

233261494

$1.58

230

Hex. Screw M8 X 20

207182044

$0.74

250

Pin

250400069

$3.89

260

Hairpin Cotter

269800431

$1.29

280

Grommet

517303756

$4.09

290

Rubber Bumper

293830005

$8.09

300

LH Seat Rail

708003314

$52.99

310

Rail_Seat RH

708003701

$43.99

350

Belt Guard Trim

708004033

$38.99

540

Driver Buckle

708002331

$70.99

550

Middle Buckle

708003163

$67.99

560

Passenger Buckle

708002329

$67.99

570

LH Safety Belt

708003082

$243.49

575

RH Safety Belt

708003200

$227.99

580

Central Safety Belt

708003688

$243.49

605

Hex. Screw M12 X 80

207028046

$3.91

610

Elastic Flange Nut M12

250001195

$2.64

620

Hex. Cap Screw 7/16'' X 1''

250001316

$1.90

625

Flat Washer M12

250200102

$2.11

630

Lock Nut Nylon 7/16

250100183

$2.00

700

Passenger Detection Switch

710008103

$76.99

710

Torx Screw Truss Head K50X20 T20

250000760

$2.11

6190

Panel Nut M6 X 1.0

250100198

$2.11

1140a

Screw PT Type K-50 X 16

250000959

$2.11

1140b

Elastic Flange Nut M12

233221416

$2.85

1140c

Lock Nut Nylon 7/16

250100183

$2.00

1140d

Safety Belt screw

708002504

$5.29

1140f

Safety Belt Screw

708000890

$3.79

1140g

Position Washer

708000891

$1.29

1140h

Latch

269501487

$16.99

1140j

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

1140k

Hex. Flange Screw M6 X 40, Scotch Grip

207564044

$4.44
