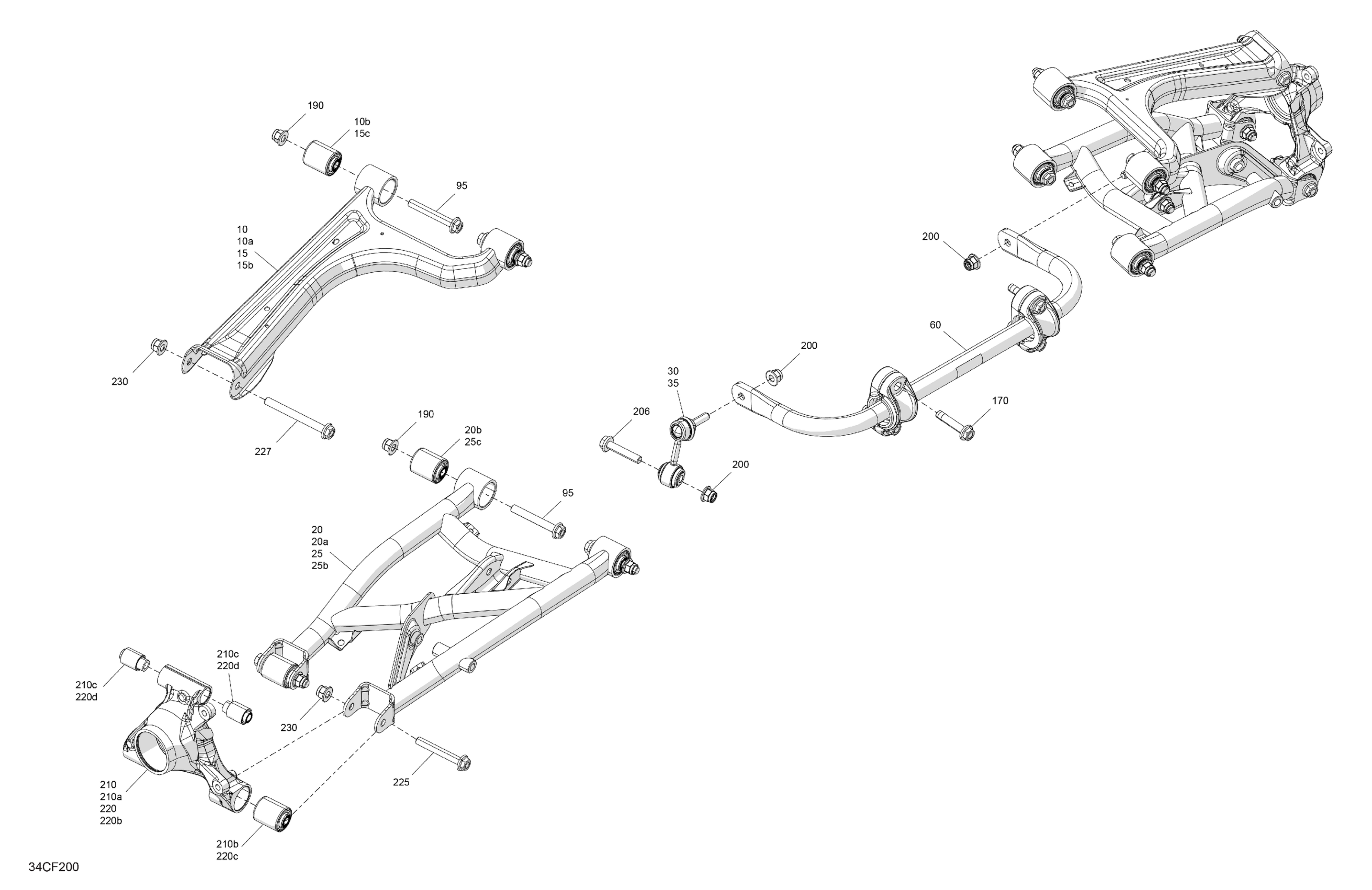

Can-Am Defender - HD11 - LTD CAB - 8JTA - Dark Wildland Camo - 65" Width - CALI, 2026 Suspension - Rear Components Diagram

Description

Price

Deep Black, LH Upper Suspension Arm Ass'y | Includes 10 to 10b

715011014

$207.66

10a

Deep Black, LH Upper Suspension Arm Ass'y | Includes 10 to 10b

715011014

$207.66

10b

Suspension Arm Bushing

706005367

$11.06

Deep Black, RH Upper Suspension Arm Ass'y | Includes 15 to 15c

715011015

$207.66

15b

Deep Black, RH Upper Suspension Arm Ass'y | Includes 15 to 15c

715011015

$207.66

15c

Suspension Arm Bushing

706005367

$11.06

Deep Black, LH Lower Suspension Arm Ass'y | Includes 20 to 20b

715011016

$272.28

20a

Deep Black, LH Lower Suspension Arm Ass'y | Includes 20 to 20b

715011016

$272.28

20b

Suspension Arm Bushing

706005367

$11.06

Deep Black, RH Lower Suspension Arm Ass'y | Includes 25 to 25c

715011017

$272.28

25b

Deep Black, RH Lower Suspension Arm Ass'y | Includes 25 to 25c

715011017

$272.28

25c

Suspension Arm Bushing

706005367

$11.06

RH Link Stabilizer Bar Link

706006413

$41.51

LH Link Stabilizer Bar Link

706006414

$41.51

Stabilizer Bar Ass'y

706005375

$147.24

Flange Screw M12 X 85

250000859

$3.95

170

Flange Screw M12 X 60

250000857

$6.08

190

Elastic Flange Nut M12

250001195

$2.15

200

Elastic Flange Nut M12

250001195

$2.15

206

Flange Screw M12 X 60

250000857

$6.08

210

LH Knuckle Ass'y | Includes 210 to 210c

715011018

$154.58

210a

LH Knuckle Ass'y | Includes 210 to 210c

715011018

$154.58

210b

Suspension Arm Bushing

706005367

$11.06

210c

Suspension Arm Bushing

706005327

$11.06

220

RH Knuckle Ass'y | Includes 220 to 220d

715011019

$154.58

220b

RH Knuckle Ass'y | Includes 220 to 220d

715011019

$154.58

220c

Suspension Arm Bushing

706005367

$11.06

220d

Suspension Arm Bushing

706005327

$11.06

225

Flange Screw M12 X 85

250000859

$3.95

227

Screw Flange M12 X 115

250000860

$5.47

230

Elastic Flange Nut M12

250001195

$2.15
