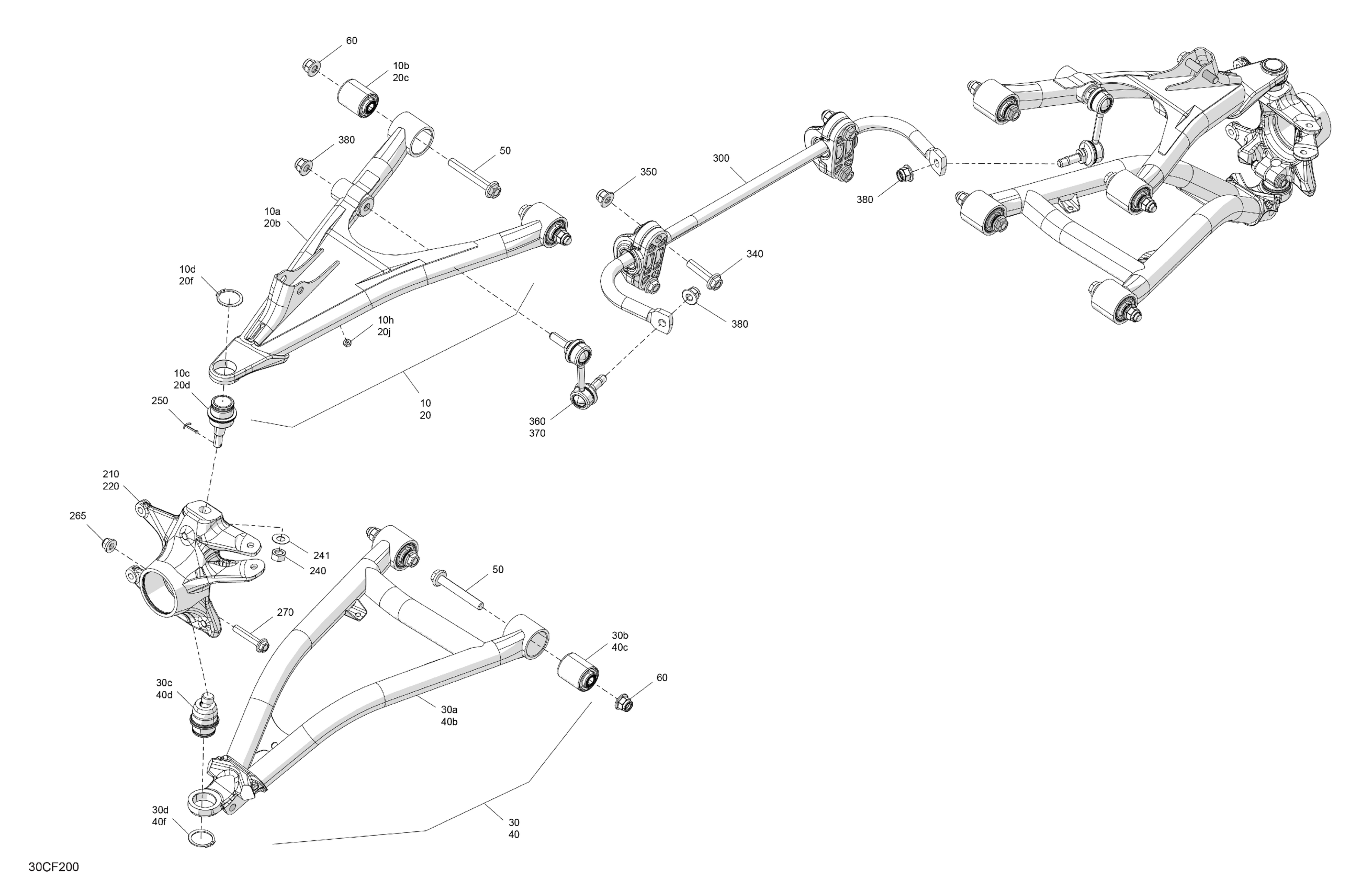

Can-Am Defender - HD11 - LTD CAB - 8JTA - Dark Wildland Camo - 65" Width - CALI, 2026 Suspension - Front Components Diagram

#

Description
Price

10

Deep Black, LH Upper Suspension Arm | Includes 10 to 10d

715011010

$250.72

10a

Not Available As Spare Parts

XXX

Unavailable

10b

Suspension Arm Bushing

706005367

$8.94

10c

Ball Joint

706203084

$34.30

10d

Circlip

293370035

$2.48

10h

Hex. Nut M6

232061600

$1.04

20

Deep Black, RH Upper Suspension Arm | Includes 20 to 20f

715011011

$250.72

20b

Not Available As Spare Parts

XXX

Unavailable

20c

Suspension Arm Bushing

706005367

$8.94

20d

Ball Joint

706203084

$34.30

20f

Circlip

293370035

$2.48

20j

Hex. Nut M6

232061600

$1.04

30

Deep Black, LH Lower Suspension Arm Ass'y | Includes 30 to 30d

715011012

$232.81

30a

Not Available As Spare Parts

XXX

Unavailable

30b

Suspension Arm Bushing

706005367

$8.94

30c

Ball Joint

706202045

$34.30

30d

Circlip

293370035

$2.48

40

Deep Black, RH Lower Suspension Arm Ass'y | Includes 40 to 40f

715011013

$232.81

40b

Not Available As Spare Parts

XXX

Unavailable

40c

Suspension Arm Bushing

706005367

$8.94

40d

Ball Joint

706202045

$34.30

40f

Circlip

293370035

$2.48

50

Flange Screw M12 X 85

250000859

$4.54

60

Elastic Flange Nut M12

250001195

$2.46

210

LH Front Machined Knuckled

706205528

$188.03

220

RH Front Knuckle Machined

706205530

$188.03

240

Hex Nut M12

250100239

$1.88

241

Hardened Washer

706200281

$2.69

250

Cotter Pin

211400017

$0.28

265

Flange Elastic Nut M10

233201466

$3.01

270

Hex. Flange Screw M10 X 55

207605546

$2.00

300

Stabilizer Bar Ass'y

706205597

$134.30

340

Screw Hex Flange M12 X 50

250001233

$6.21

350

Elastic Flange Nut M12

250001195

$2.46

360

LH Stabilizer Bar Link

706205833

$63.40

370

RH Stabilizer Bar Link

706205834

$63.40

380

Elastic Flange Nut M12

250001195

$2.46
